1999 Ford Crown Victoria Head lights

1999 FORD CROWN VICTORIA
4.6L • V8 • 2WD • AUTOMATIC
Avatar
MATTOWENS928
  • MEMBER
  • 1 POST
When I turn the headlight switch to corner lights they come on
But as soon as I turn it for the headlights I have nothing. I changed the switch out and checked to fuses, relays, and bubs and there fine. Any suggestions?
Dec 9, 2015 at 12:38 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Are you saying headlamps don't work? Did you check voltage and ground, anywhere? I haven't looked at your wiring yet, to see if a control module may be involved?
Dec 9, 2015 at 1:52 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

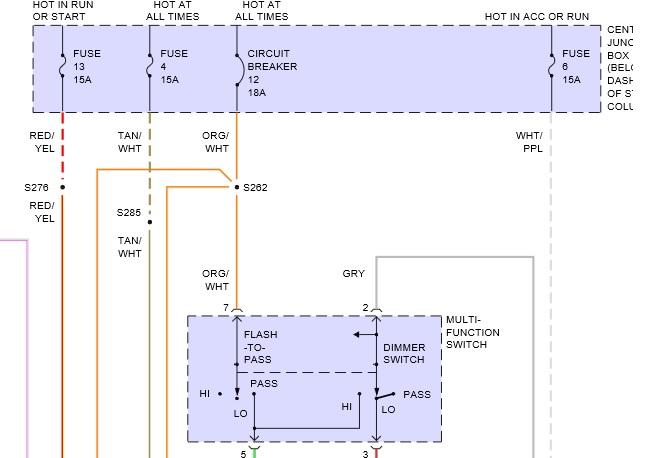

Note the wiring diagram, this is w/o drl. You see the circuit breaker, sends voltage to dimmer switch, orange wire with white tracer. Any voltage at circuit breaker or orange wire? Use a testlite to check for voltage.

At the dimmer switch side of multifunction switch, lite green wire is voltage for hi-beam, red wire for lo- beam. At the headlamps the black is ground.
Image (Click to enlarge)
Attached Media
Dec 9, 2015 at 2:07 PM
