1999 Dodge Truck power seats

1999 DODGE TRUCK

V8 • 4WD • AUTOMATIC

ATIGER1957

MEMBER
1 POST
FOLLOW

I am trying to install a power seat in my truck there is a wire harness under the seat with three wires the seat has ten wires how can I make this work

Jun 7, 2015 at 6:15 AM

HMAC300

CERTIFIED EXPERT
48,601 POSTS

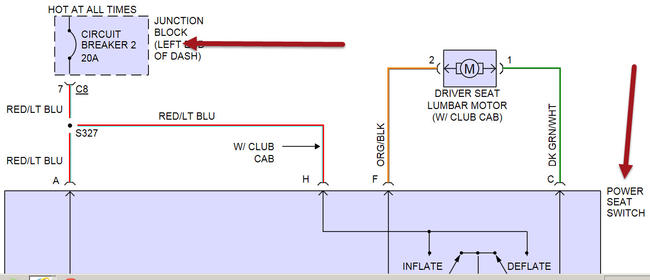

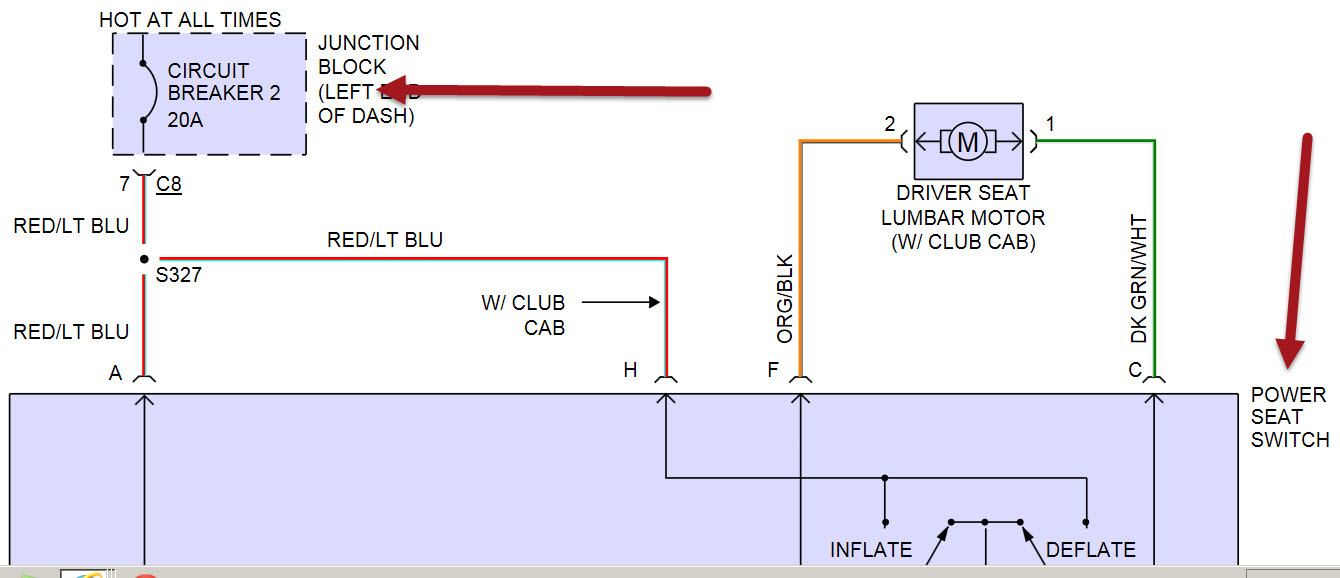

you need a circuit breaker going to a the CORRECT power seat switch if it's from a 99 Dodge

Image (Click to enlarge)

Jun 7, 2015 at 8:00 AM
