Just need the head bolt sequence and torque specs on a 3.8l dodge grand caravan.
Jun 9, 2012 at 1:23 PM
Advertisement
RASMATAZ
CERTIFIED EXPERT
75,992 POSTS
See below

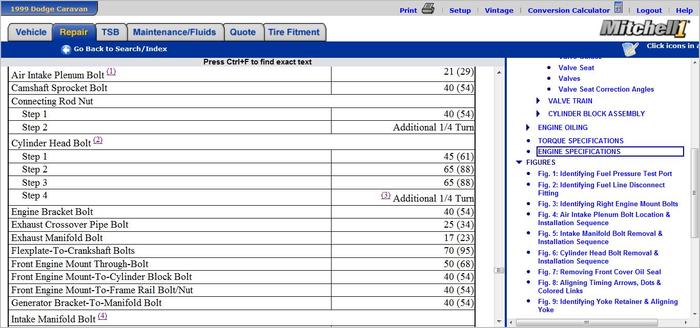

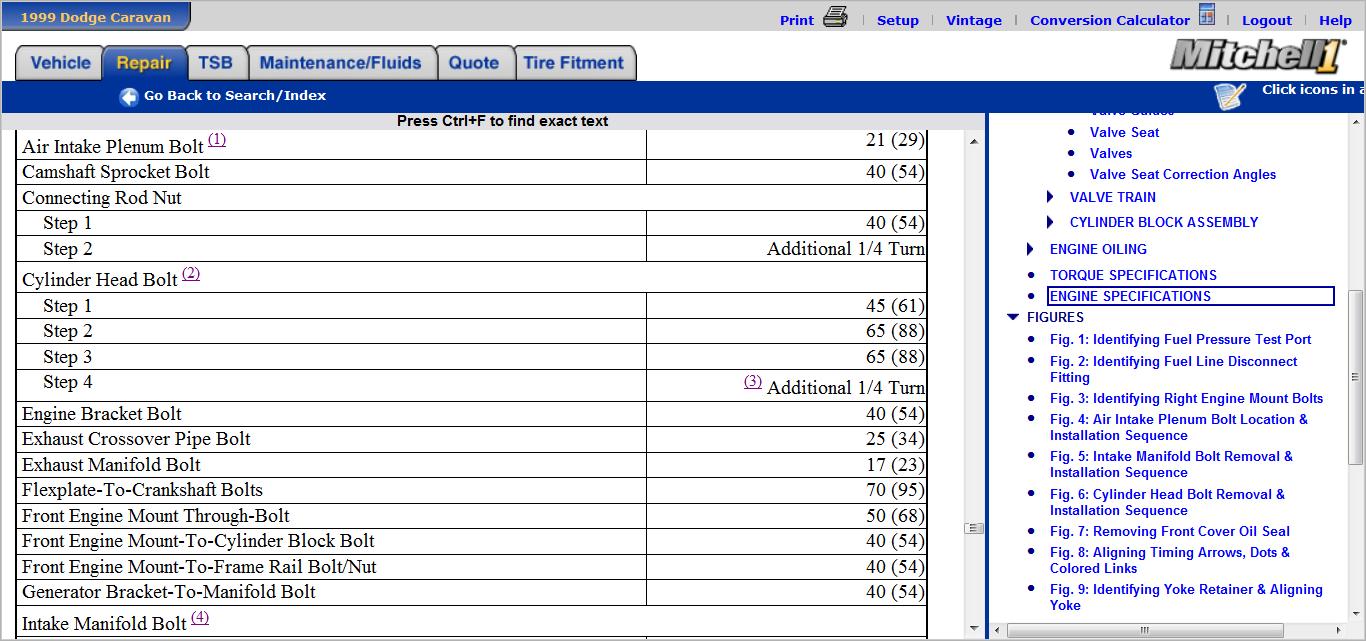

(2) All bolts except No. 9 (8-mm bolt) must be tightened to specification in sequence. See Fig. 6. No. 9 bolt should be tightened to 25 ft. lbs. (34 N.m) after all other bolts are tightened to specification
Images (Click to enlarge)
Jun 9, 2012 at 2:58 PM
WRENCHTECH
CERTIFIED EXPERT
20,761 POSTS
Torque sequences are always the same. Start in the middle and work toward the ends while alternating sides.
Jun 9, 2012 at 3:31 PM
Advertisement
KOHLLINK
MEMBER
80 POSTS
Thank you rasmataz I'm going to take the heads to a machine shop to have them checked for warping and look for cracks. Anything else should I be looking for? I've never done this before but I'm not scared .
Jun 9, 2012 at 9:59 PM
RASMATAZ
CERTIFIED EXPERT
75,992 POSTS
Your on the right direction-go do it and let us know what's going on-
