Heater A/C fan quit today.

1999 DODGE CARAVAN
174,000 MILES
Avatar
BILL CORNELISON
  • MEMBER
  • 1 POST
Working this AM, stoped for lunch and would not work. Owners manual does not show a fuse for the fan--Correct???What next?

Working fine this AM and stopped for lunch and would not work on any setting.

Is there a fuse for the fan? My owners manual doesn't show one.

My fuse panel cover has been lost so if there ia any info on it I can't use it.

Sugestions?

Bill
Nov 20, 2011 at 11:38 PM
Advertisement
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS
There is a blower motor relay in the front junction box. The power distribution center is under the hood on the driver side up front. The cover should be labelled.
Image (Click to enlarge)
Attached Media
Nov 20, 2011 at 11:58 PM
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

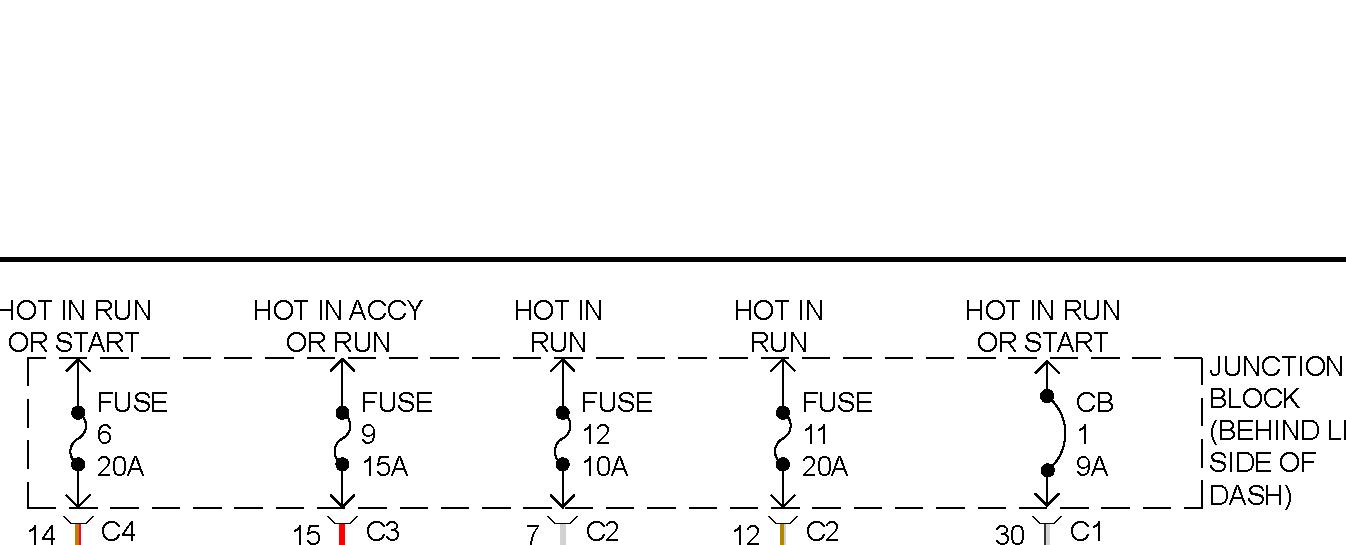

Check all the fuses below in the junction block behind left side of dash-



Image (Click to enlarge)
Attached Media
Nov 21, 2011 at 12:01 AM
