Brake lights wont work heater and AC wont shut off.
Oct 26, 2012 at 5:15 PM
Advertisement
JDL
CERTIFIED EXPERT
16,098 POSTS

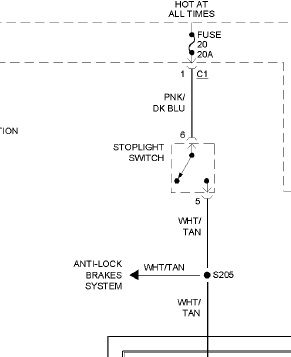

As far as the brake lights, does the highmount brake lamp work? If none work, check the fuse and voltage to and from the brake lamp switch.
Image (Click to enlarge)
Oct 26, 2012 at 6:22 PM
JDL
CERTIFIED EXPERT
16,098 POSTS
With the hvac, any applicable trouble codes? The green wire at the automatic temp control module, is it hot with key off? Shouldn't be hot with key off.
Oct 26, 2012 at 6:31 PM
Advertisement
JDL
CERTIFIED EXPERT
16,098 POSTS

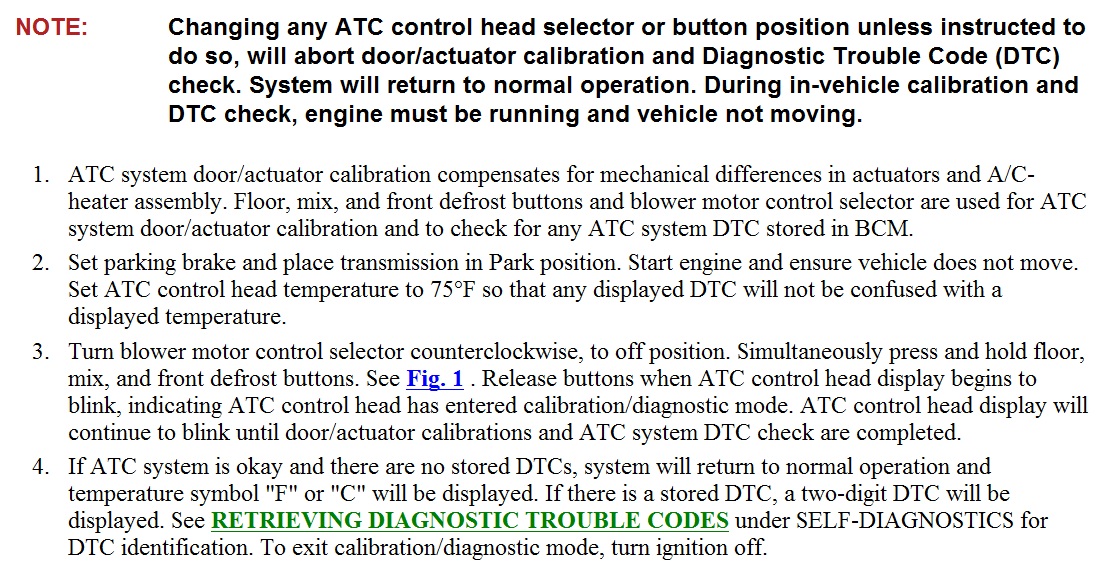

For the atc module you can try this calibration. See if any codes show up? List the codes and me or somebody will talk to you.
