1999 Chevrolet Venture Transmission Solenoids

1999 CHEVROLET VENTURE
170,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
BIFFY
  • MEMBER
  • 1 POST
I need to replace all transmission solenoids on my tranny. Are thry on the inside or outside of the tranny (do I need to remove the tranny to do this). And is there anywhere I can find a diagram to do this? Please help, we are extremely low income and I cannotafford to take it to a shop. Thank you for you time!
Jul 12, 2014 at 10:32 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

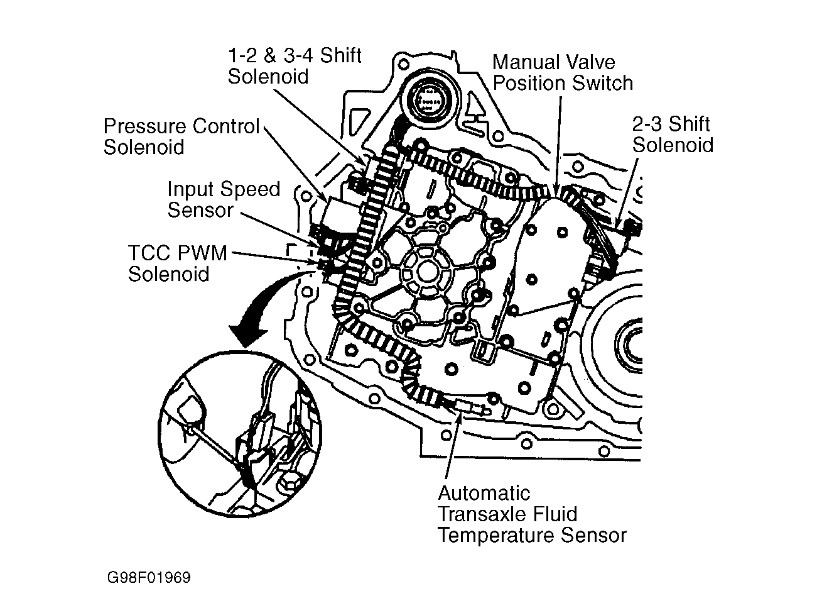

they are all in the transmission but I doubt its' your problem. have it properly diagnosed see pic
Image (Click to enlarge)
Attached Media
Jul 13, 2014 at 8:35 AM
Avatar
FREEMBA
  • CERTIFIED EXPERT
  • 1,152 POSTS
What problem are you having with the transmission?

There is one fuse which protects/controls all of the solenoids. It is the TCC fuse (10A) located in the underhood fuse box above the battery. Make sure that it is good before replacing all of the solenoids.
Aug 2, 2014 at 9:54 AM
