Front Passenger side engine mount bracket removal.

1999 CHEVROLET VENTURE

19,800 MILES

MGARDNER

MEMBER
1 POST
FOLLOW

How do you remove the front passenger side Engine mount torque strut bracket? I only see two bolts holding it but it still will not come off. I know the front corner head bolt is extended and this bracket slides on to that extended stud. Are their any more bolts holding this on. I'm changing the head gaskets. Any help will be appreicated.

Thanks,
Mark

Dec 3, 2011 at 9:00 PM

STRAILER

CERTIFIED EXPERT
53,855 POSTS

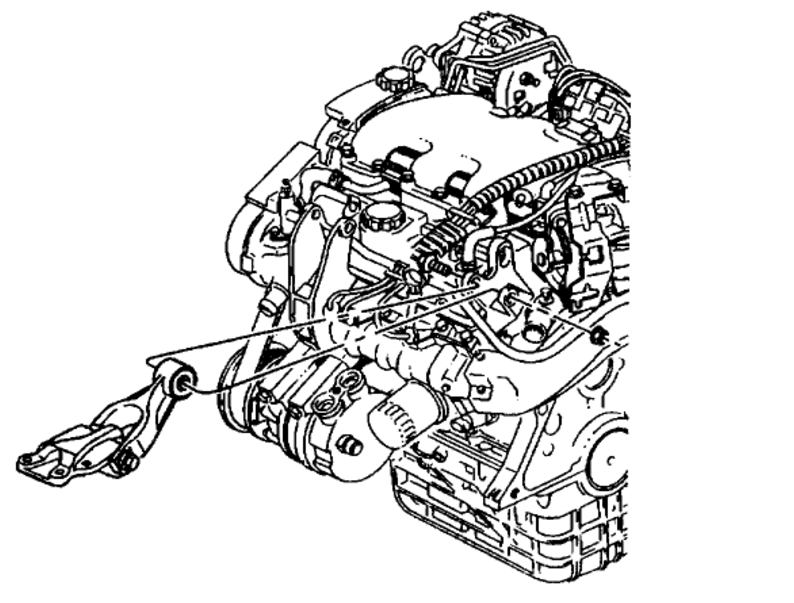

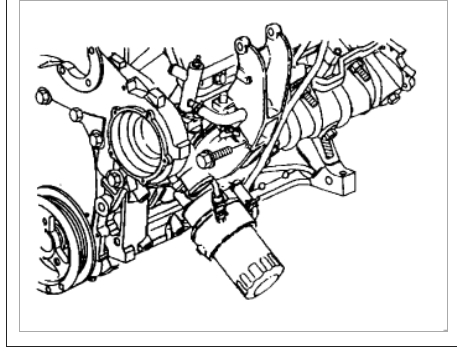

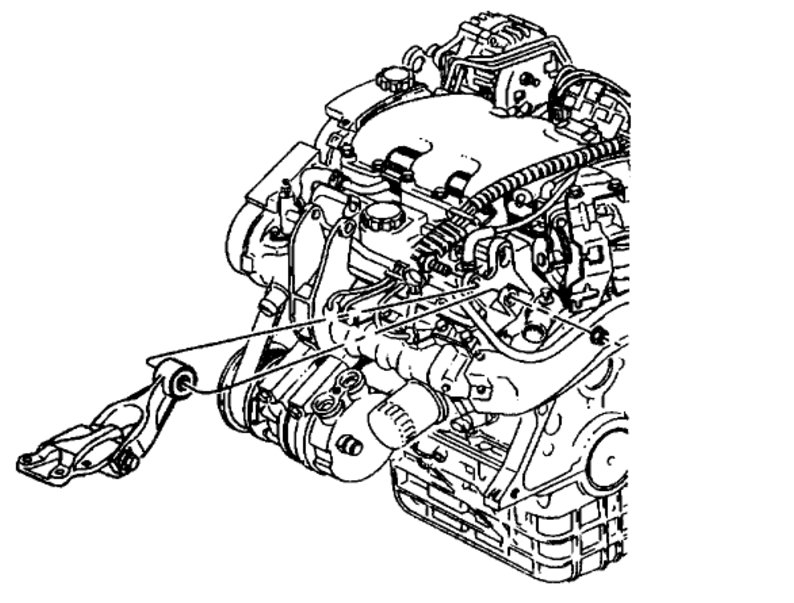

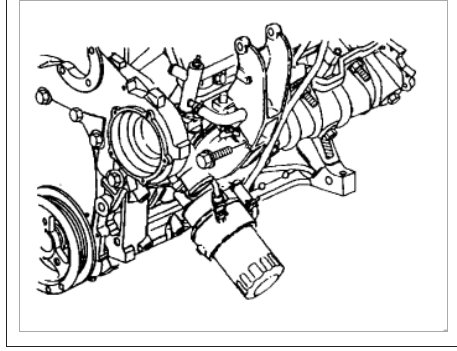

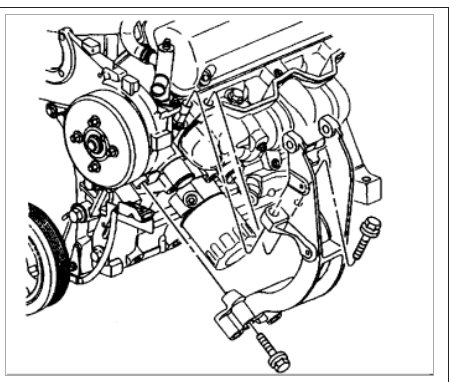

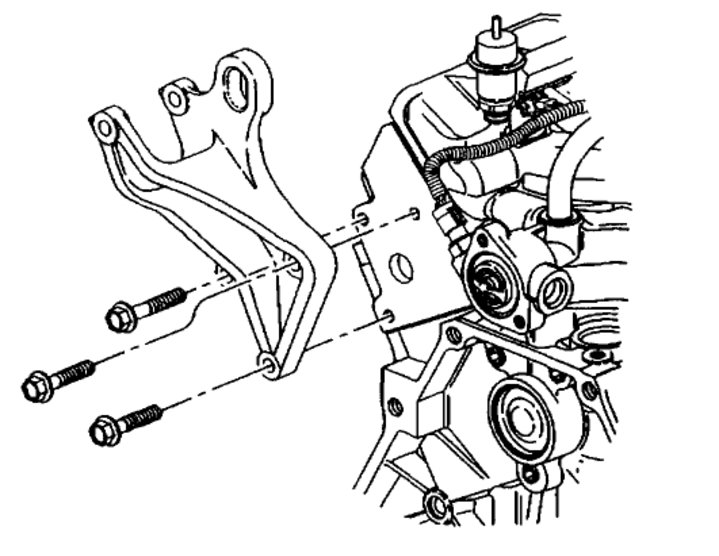

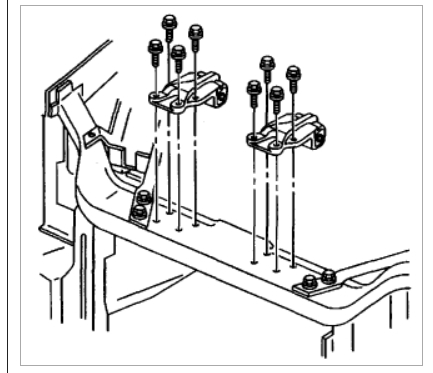

There is a third bolt down low. Here is some diagrams (below) that show the mount and all of the mounting bolts, the size is 15mm.

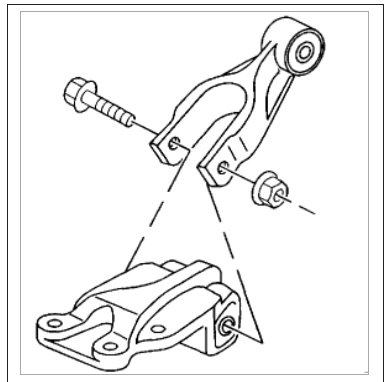

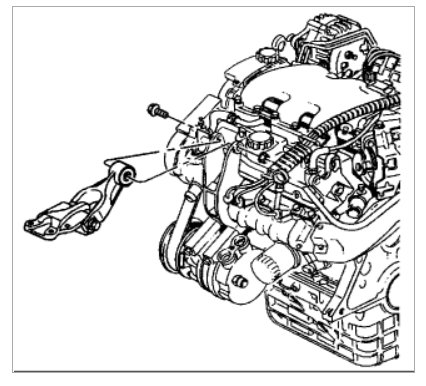

Remove the engine mount strut from the engine mount strut bracket at the upper radiator support.Remove the engine mount strut bracket bolts from the engine mount strut bracket. Remove the engine mount strut bracket from the upper radiator support.

Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
