How does one disconnect the fuel return line from the back end of a fuel rail 2.2L VIN 4 SFI

1999 CHEVROLET S-10
126,000 MILES
Avatar
WILLEZURMACHT
  • MEMBER
  • 1 POST

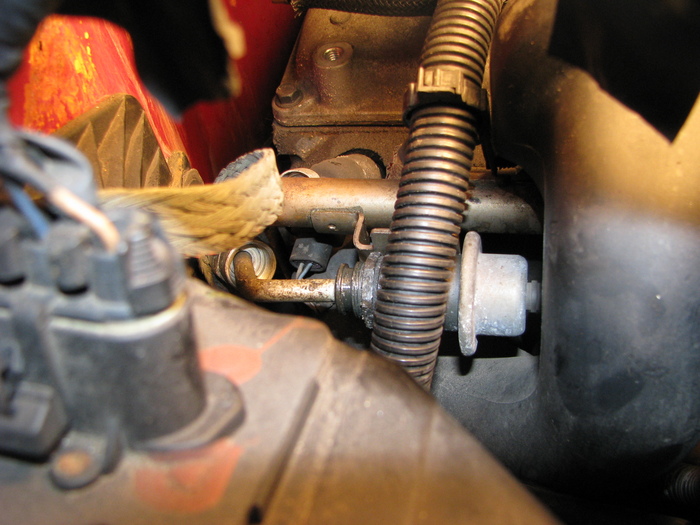

I am removing the intake manifold and need to detach the fuel return, I backed off a large threaded cap and there is a black
plastic ring but I don't see any kind of release or coupling, the supply end had a quick couple which I released.
Image (Click to enlarge)
Attached Media
Dec 31, 2011 at 12:45 AM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Once that nut is loose it should come right off unless there is bracket further back holding the line in place with a bolt.
Dec 31, 2011 at 12:54 AM
