How to change the fan belt on 1998 VW Passat 1.9tdi

1998 VOLKSWAGEN PASSAT
147 MILES
Avatar
MANUS MONAGHAN
  • MEMBER
  • 1 POST
Belt broken,need the route and tensioner location
Nov 9, 2011 at 10:10 AM
Advertisement
Avatar
DRCRANKNWRENCH1
  • CERTIFIED EXPERT
  • 3,435 POSTS

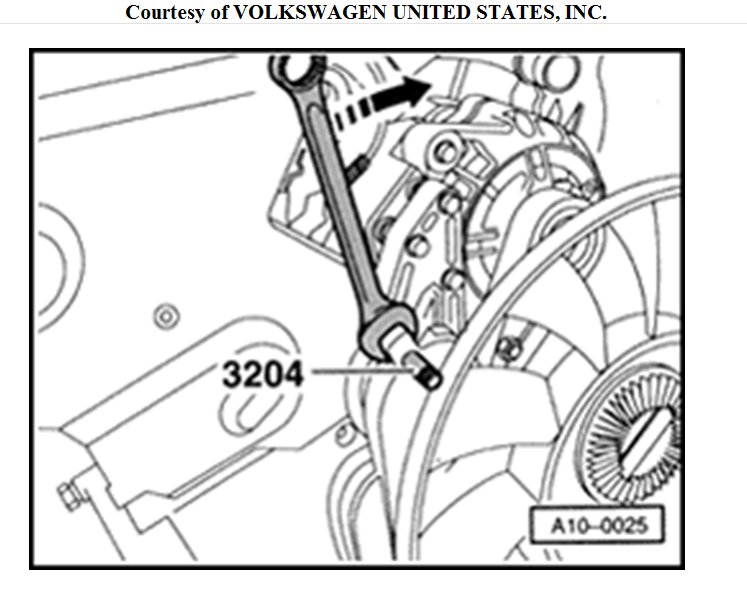

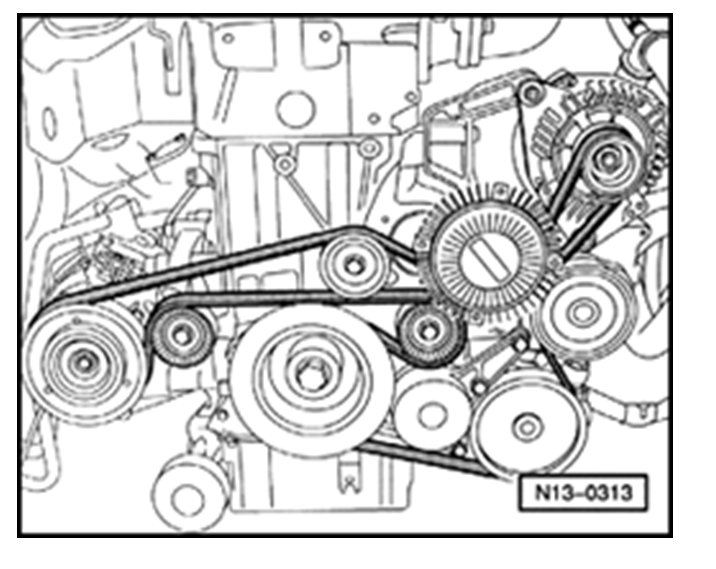

Here is an image of the belt path and the way in which to turn the tensioner to relieve the tension on belt.
Images (Click to enlarge)
Attached Media
Attached Media
Nov 9, 2011 at 2:53 PM
