1998 Toyota Corolla rocker arm torque specs

1998 TOYOTA COROLLA
111,700 MILES • 1.8L • 4 CYL • FWD • MANUAL
Avatar
CRAWFORDBRETT
  • MEMBER
  • 1 POST
There is a slight tick or rattle coming from the engine so I am going to take off my valve cover and see if they are tight but I don't know what they need to be tightened to. My torque wrench is in pounds to square inch.
Could you tell me what the torque specs are for the rocker arms. thank you
Apr 30, 2015 at 3:25 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

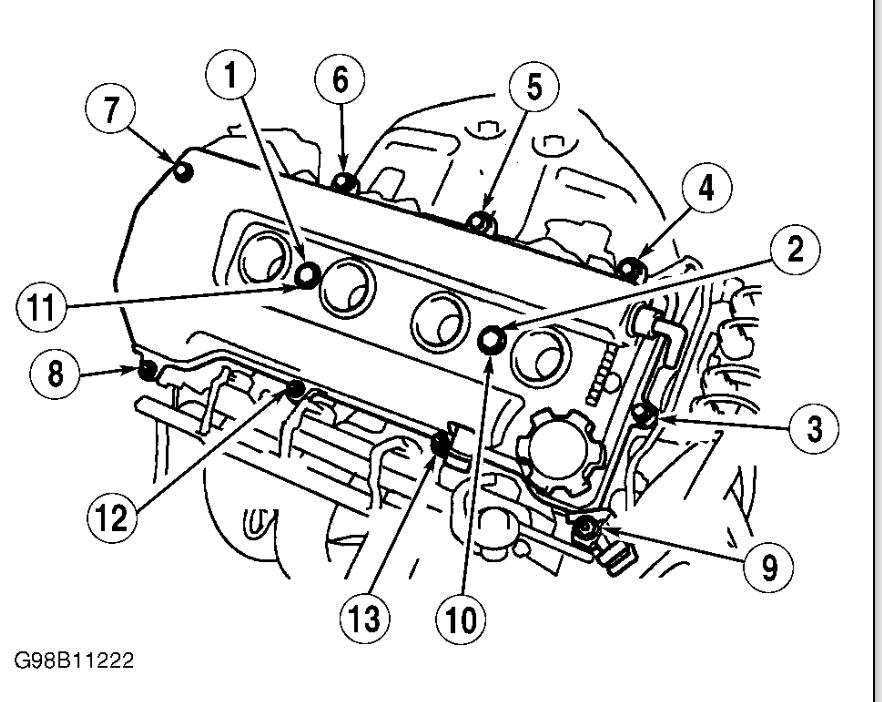

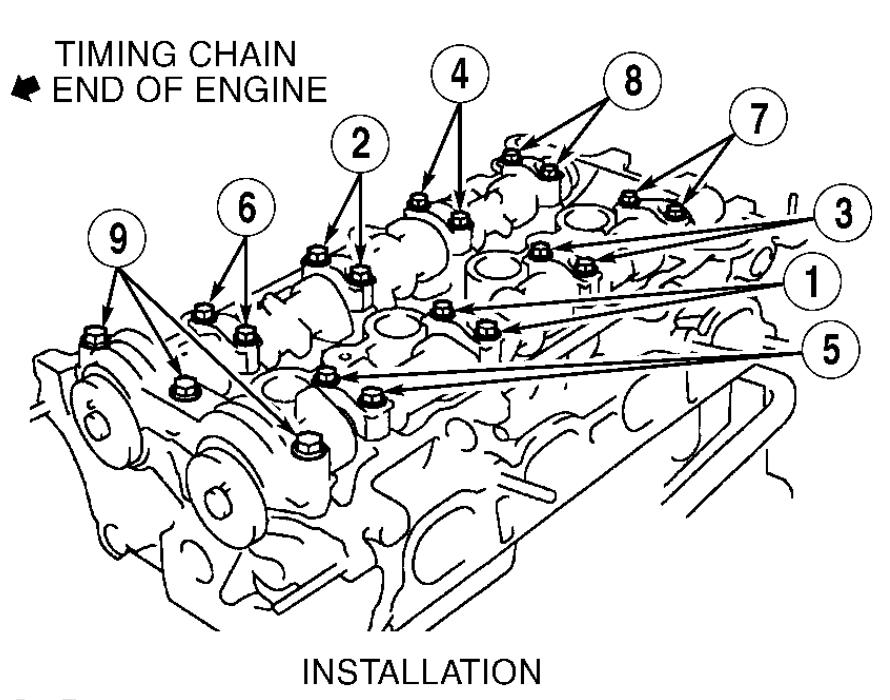

if yo have a tick it may be a valve adjustment which a pro should do or it's a worn cam lobe/lifter.however front rocker is 17 ft lbs and rest are 115 inch lbs. per diagram. valve 80 inch with washer and 97 without washers done in sequence . see pics.
Images (Click to enlarge)
Attached Media
Attached Media
May 5, 2015 at 6:09 AM
