heater fan blower motor

1998 SUZUKI SIDEKICK
147,000 MILES • 4 CYL • 4WD • AUTOMATIC
Avatar
STINGYWIDIT
  • MEMBER
  • 1 POST
how to replace the heater fan blower motor
Dec 3, 2010 at 12:36 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
BLOWER MOTOR
Removal & Installation
Disconnect negative battery cable.
Remove glove box and instrument panel support.
Remove relays and relay bracket from blower motor case.

Remove blower motor electrical connector.

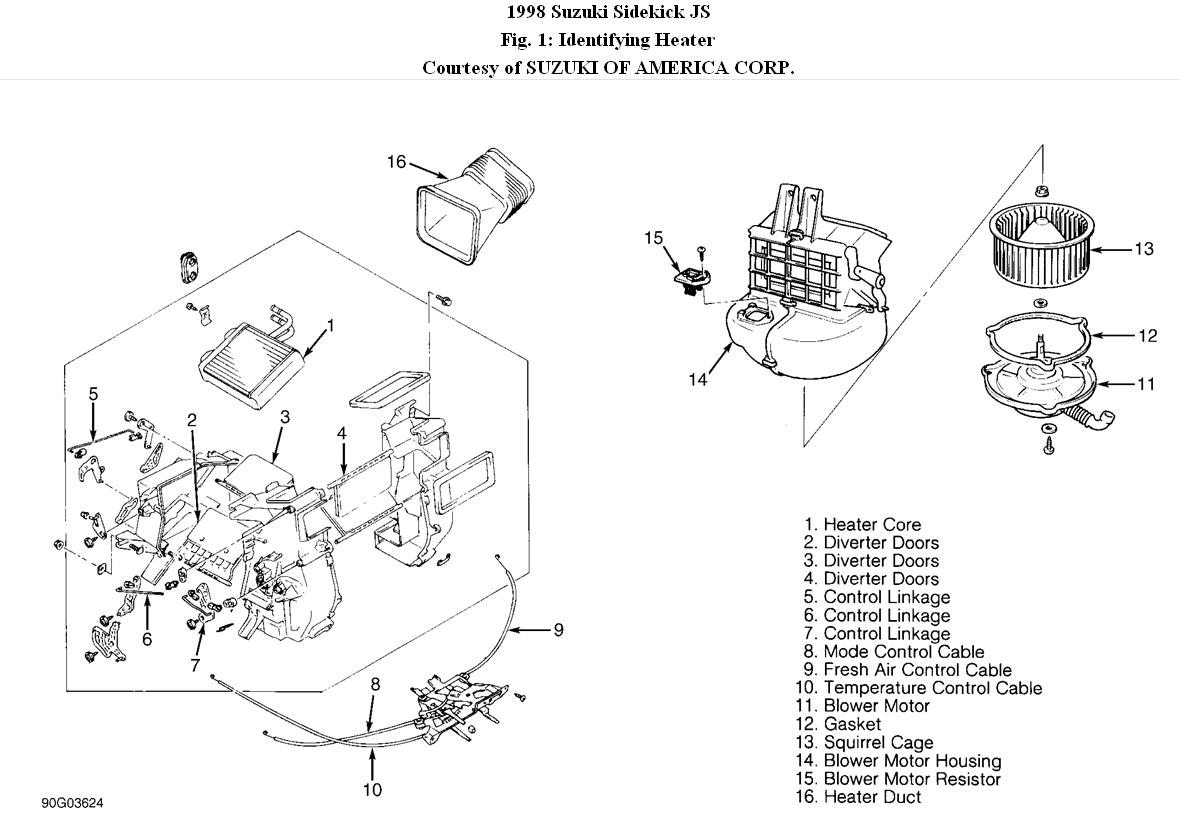

Disconnect fresh air control cable from blower motor case. See Fig. 1 .
Remove blower motor screws and blower motor from case.

To install, reverse removal procedure.


© 2008 Mitchell Repair Information Co., LLC.
Image (Click to enlarge)
Attached Media
Dec 5, 2010 at 1:10 PM
