98 sunfire fireing range

1998 PONTIAC SUNFIRE
Avatar
CHELSD
  • MEMBER
  • 4 POSTS
i have changed the spark plugs and wires along with with coil pack and i somehow mixed up the wires putting them back on the coil pack how do i know which wire to put on the coil pack and what is the firing range on my 1998 pontiac sunfire 4 cyclinder 2.2 liter
Feb 2, 2011 at 2:37 AM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS

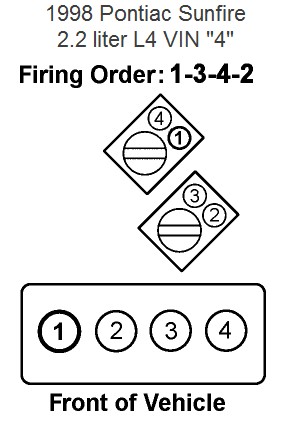

Here ya go
Image (Click to enlarge)
Attached Media
Feb 2, 2011 at 2:45 AM
Avatar
CHELSD
  • MEMBER
  • 4 POSTS
does one go where the one goes an the 3 goes on the 2 and 4 to the three and 2 on the four and are we working from left to write??? please help i need my car fixed
Feb 2, 2011 at 3:12 AM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
The diagram is very self explanatory. It shows you which cylinder is which and which coil tower it is attached to. You're looking at it from the front of the car.
Feb 2, 2011 at 3:15 AM
Avatar
CHELSD
  • MEMBER
  • 4 POSTS
ty for ur help still not sure i completly understand but i will start from right to left hoping this works ty alot
Feb 2, 2011 at 3:18 AM
Avatar
CHELSD
  • MEMBER
  • 4 POSTS
can having them hooked up wrong cos a cylinder to spark from the spark plug and not start?
Feb 2, 2011 at 3:21 AM
