No power from cigarette lighter

1998 PLYMOUTH VOYAGER
125,000 MILES • 6 CYL • FWD • AUTOMATIC
Avatar
HAROLD JOHNSON
  • MEMBER
  • 1 POST
Cigarette lighter has no power in '98 Plymouth Voyager No fuse appears blown
Feb 17, 2011 at 8:20 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

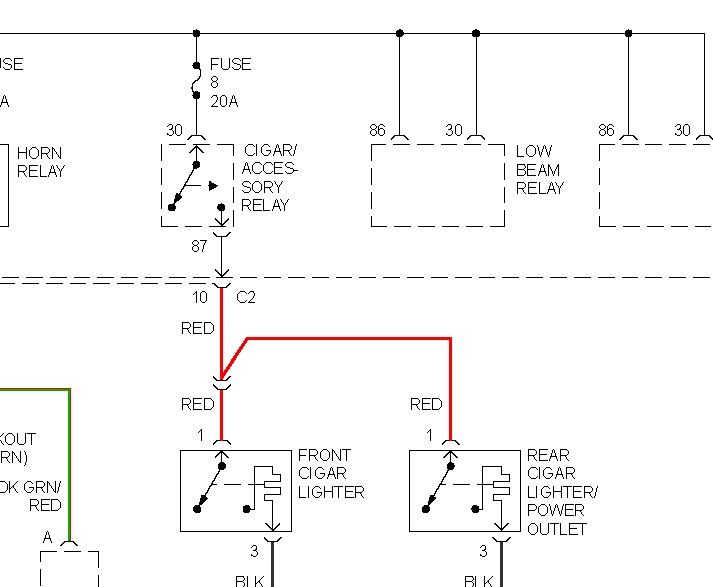

In the diagram use a voltage tester on the fuse circuit, should be hot all the. As you can see, there is relay. In the power distribution center. I'm not saying the relay is faulty. You have to test the relay circuits.
Image (Click to enlarge)
Attached Media
Feb 17, 2011 at 8:50 PM
