door lock relays location

Hello,

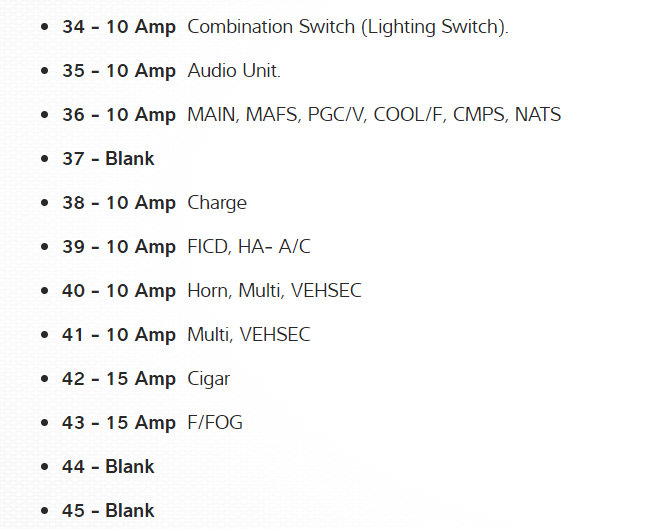

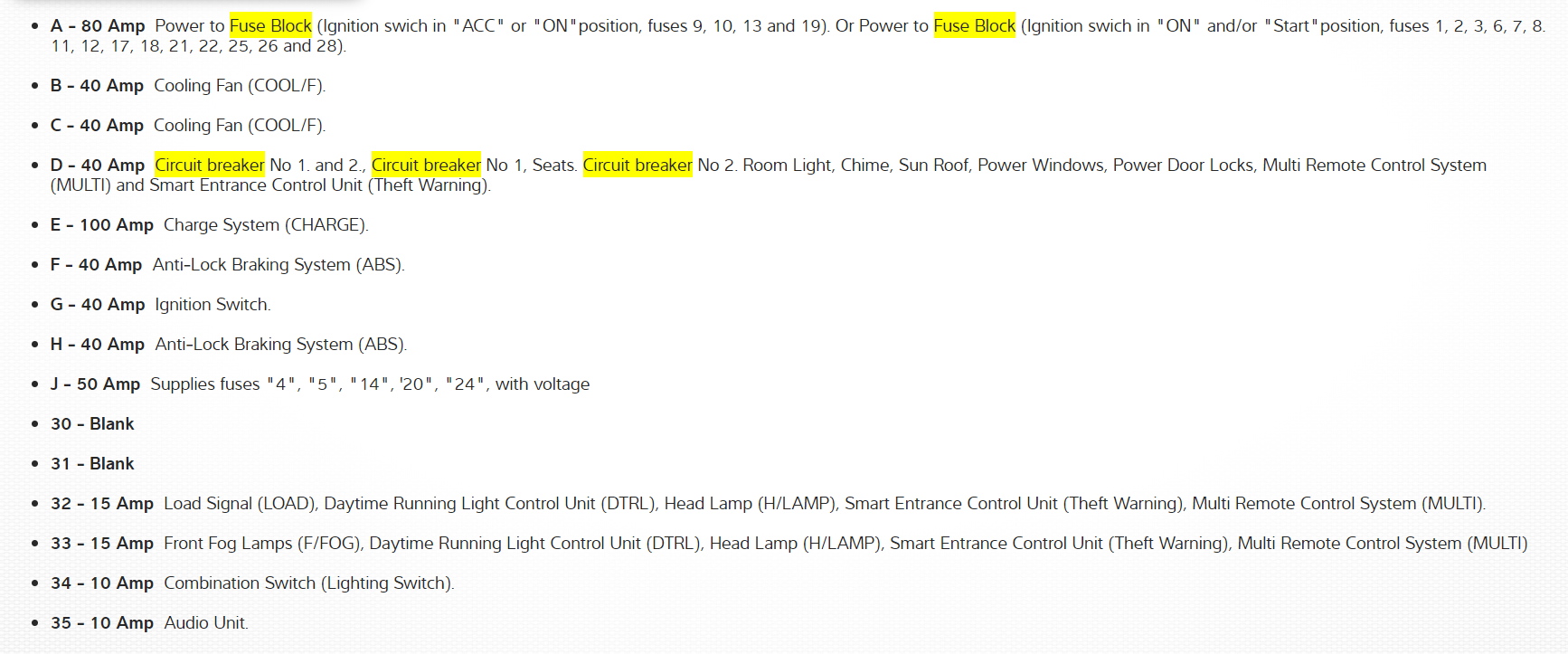

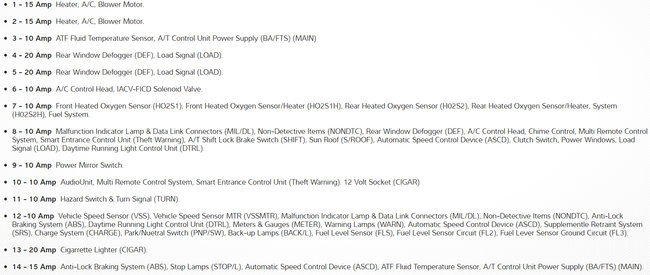

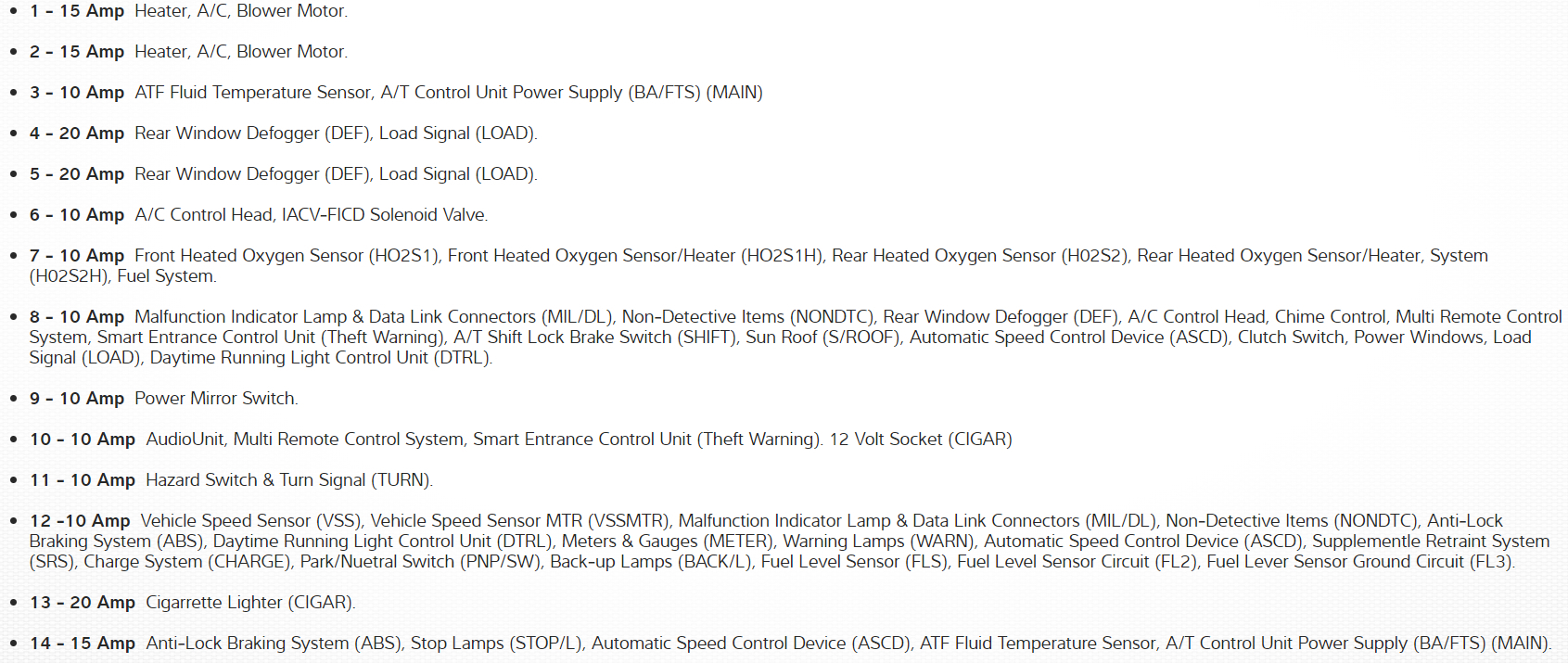

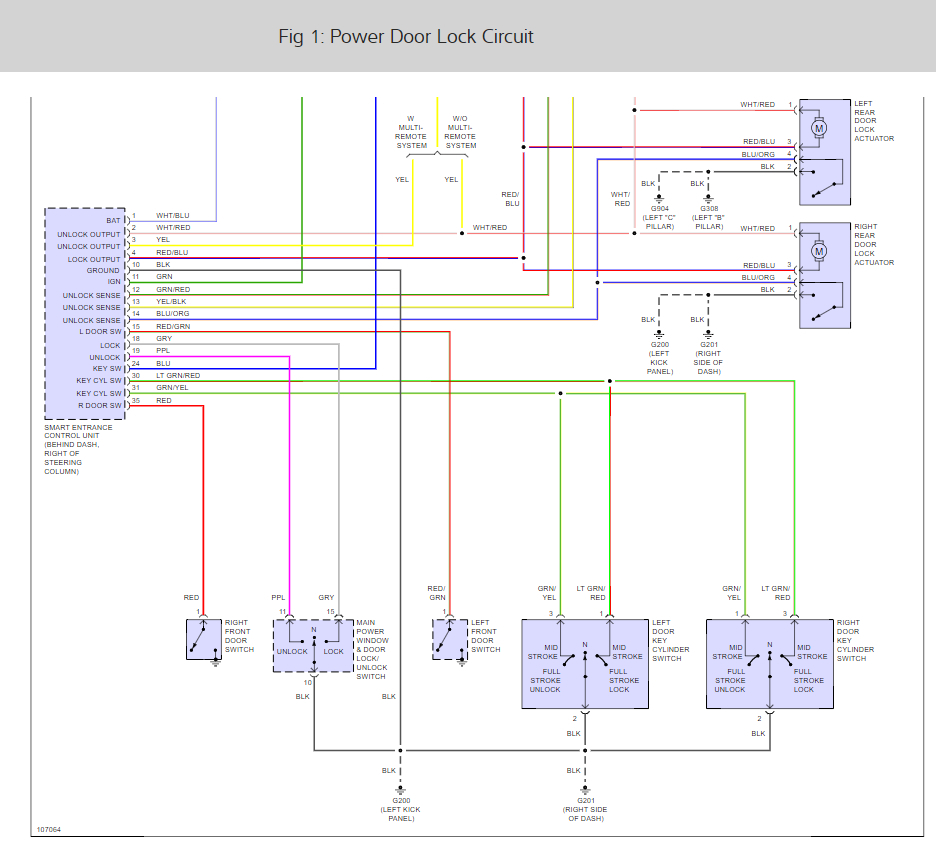

The system is run by one fusible link and two fuses, here is w ring diagrams and a guide to help you see which one has failed so you can replace it there is no door lock relay for this system.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

and

https://www.2carpros.com/articles/how-to-check-a-car-fuse

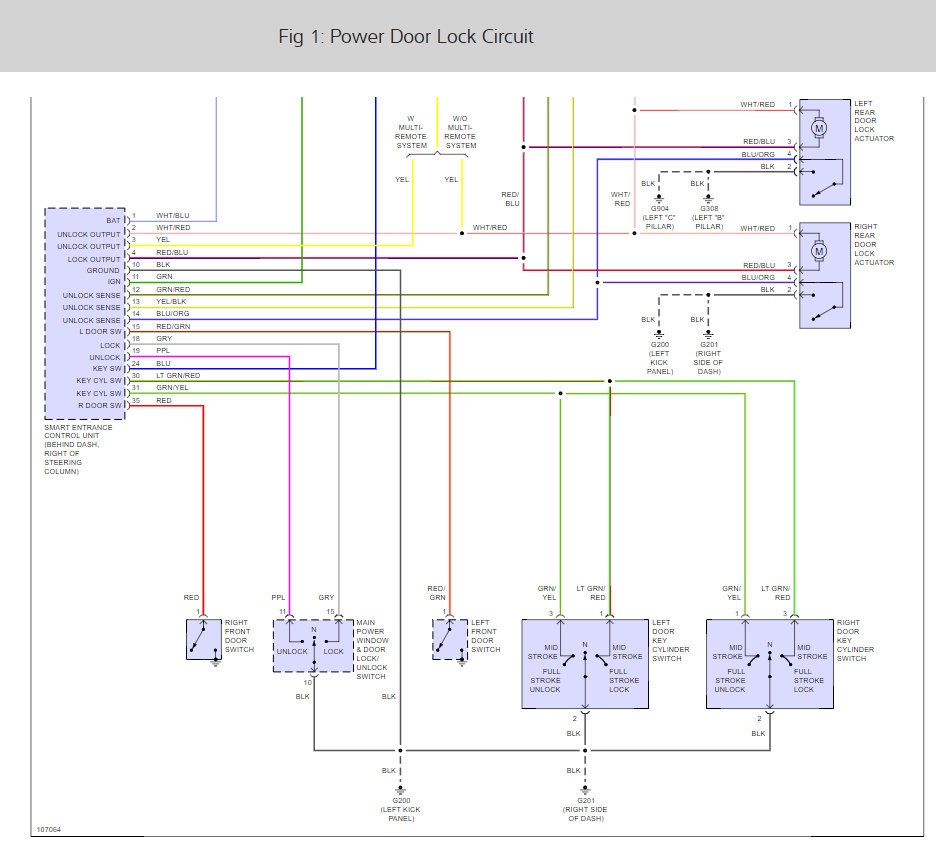

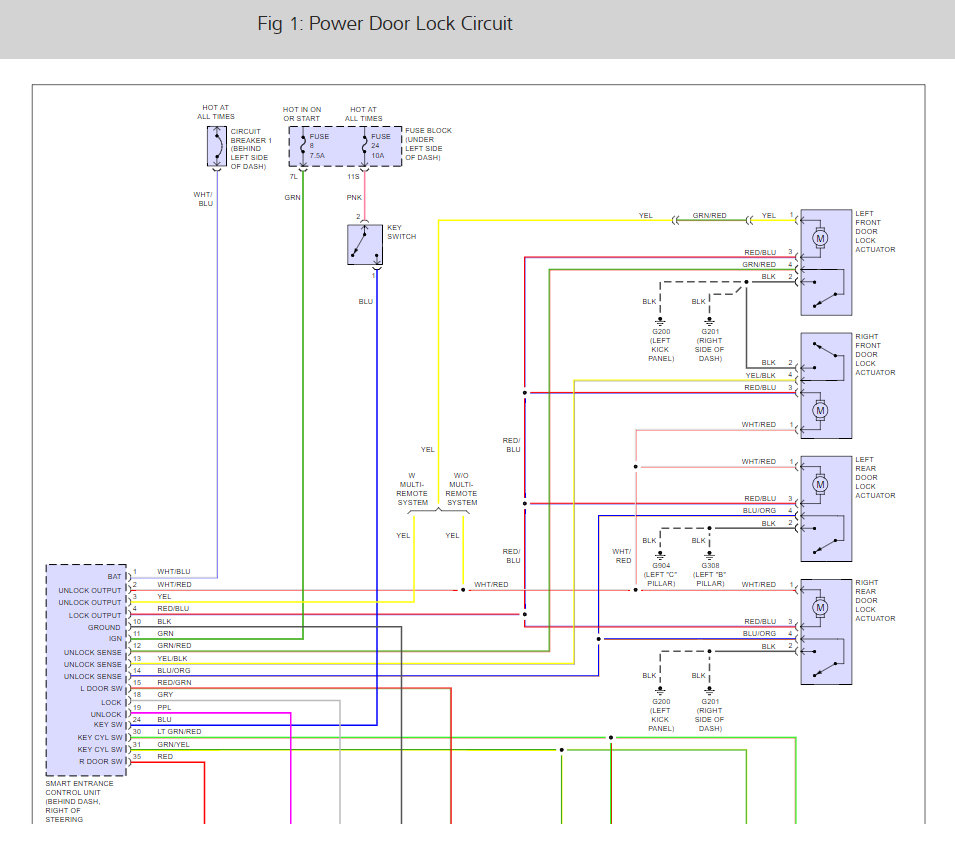

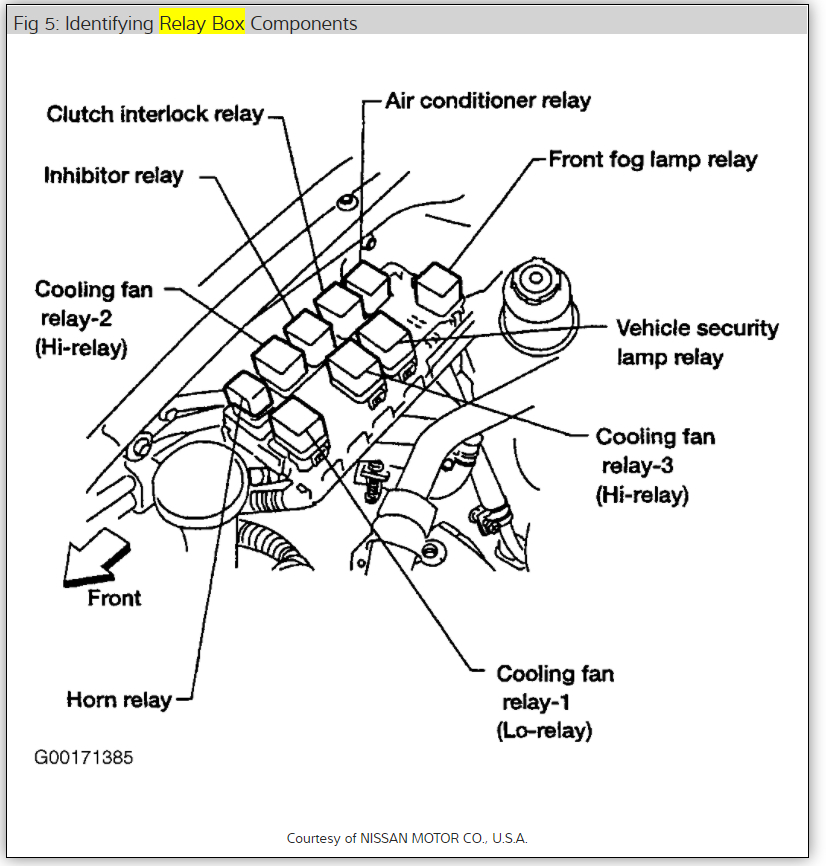

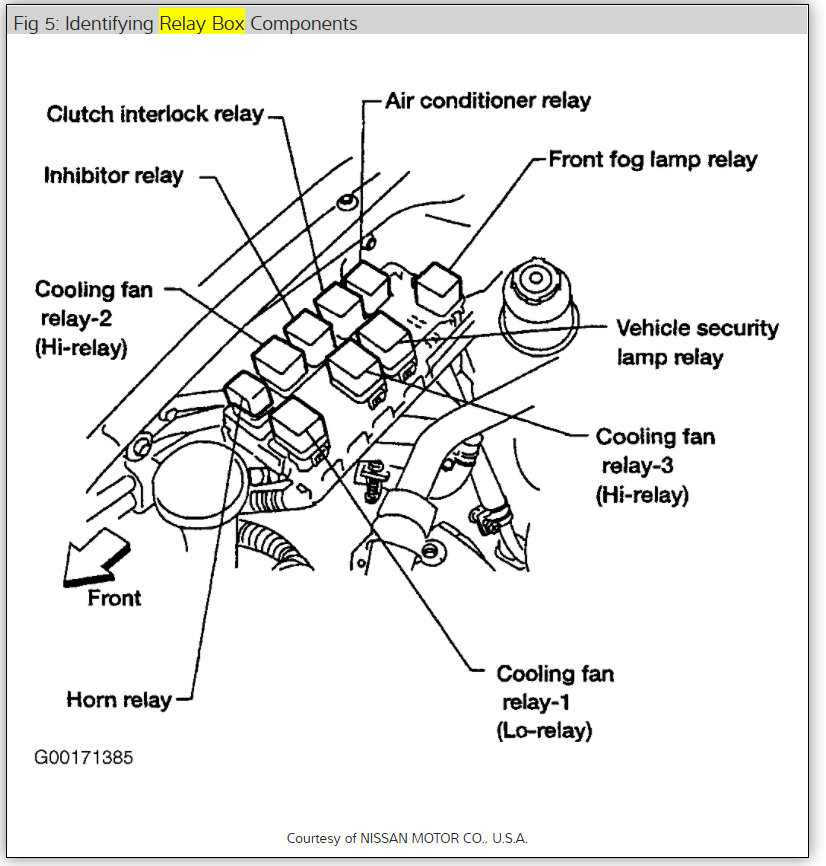

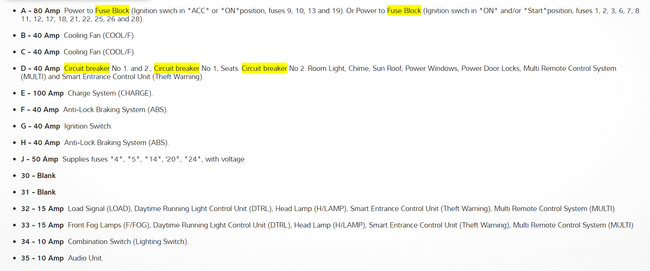

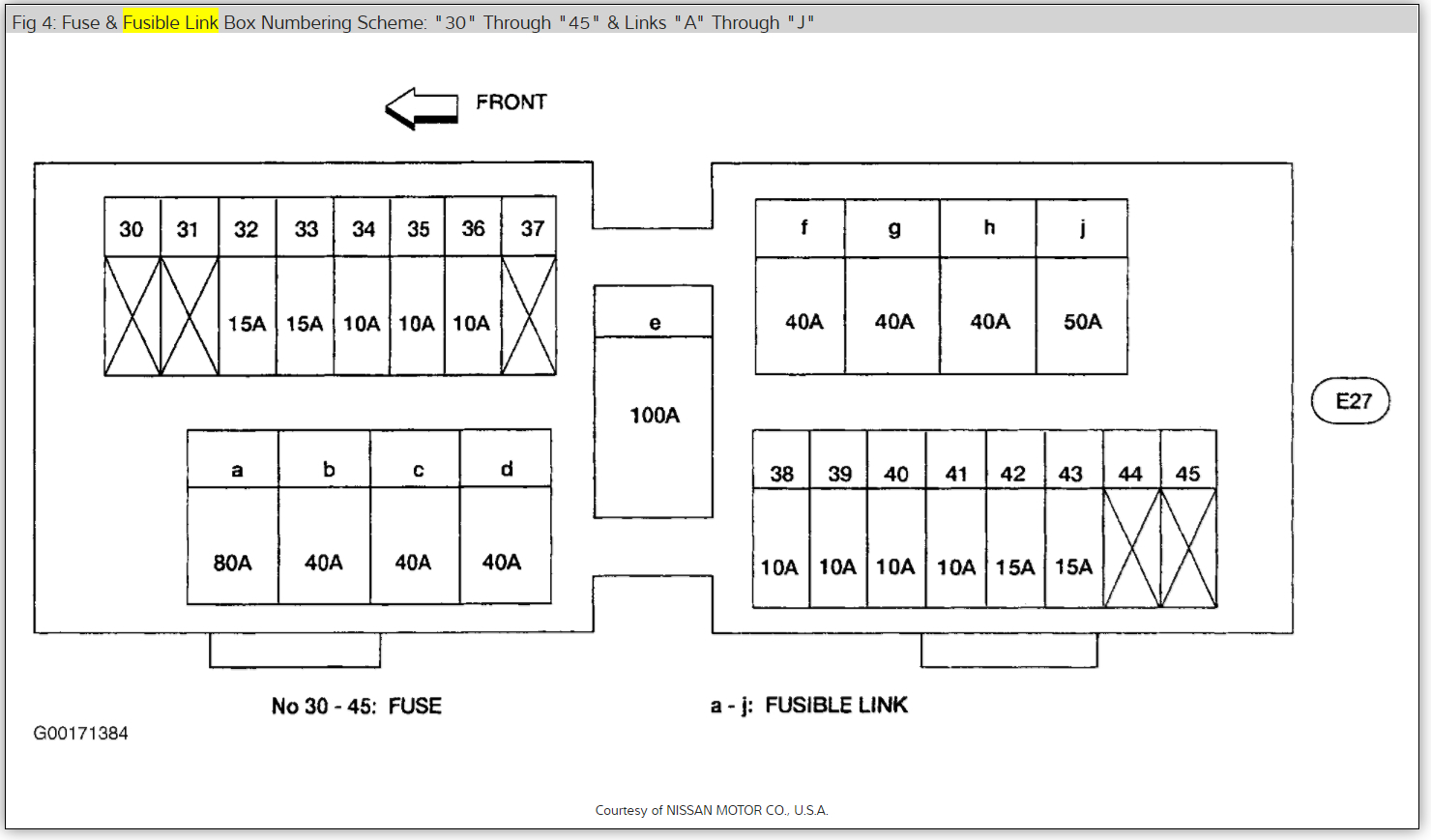

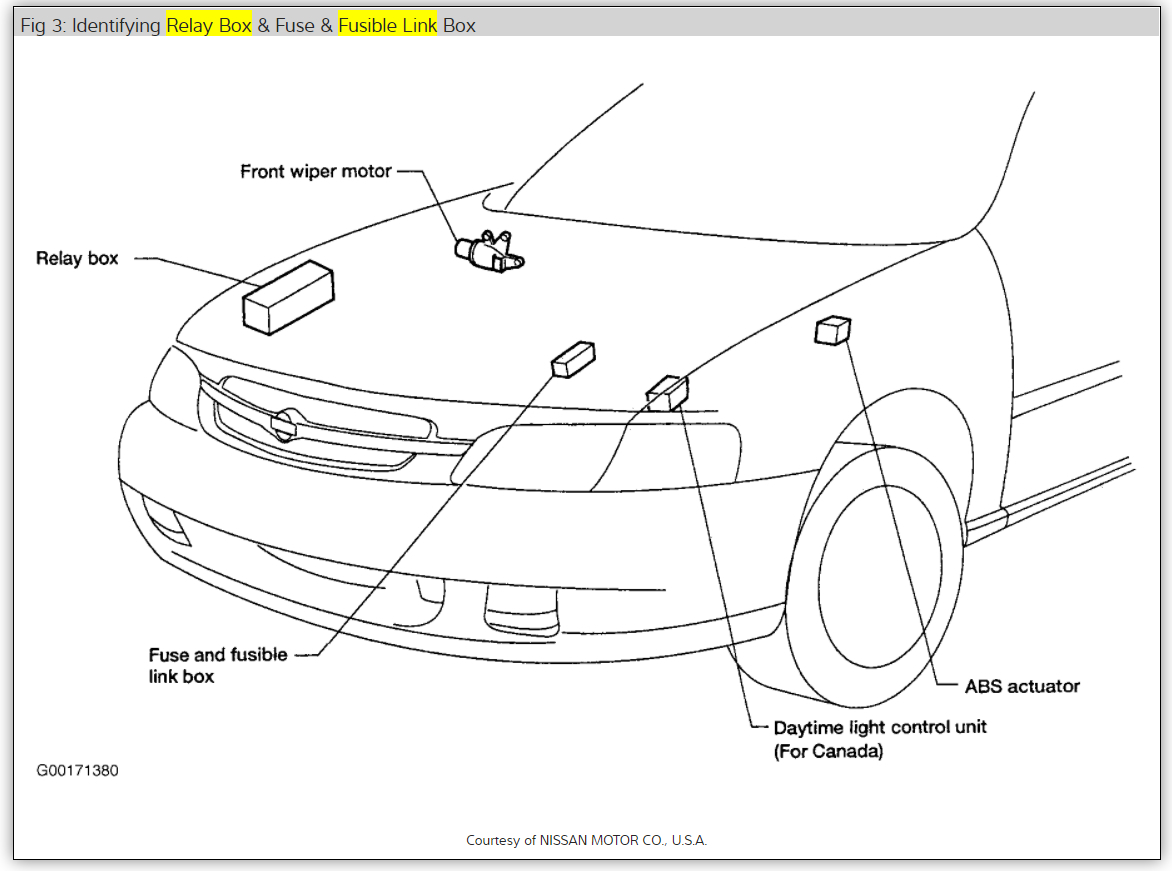

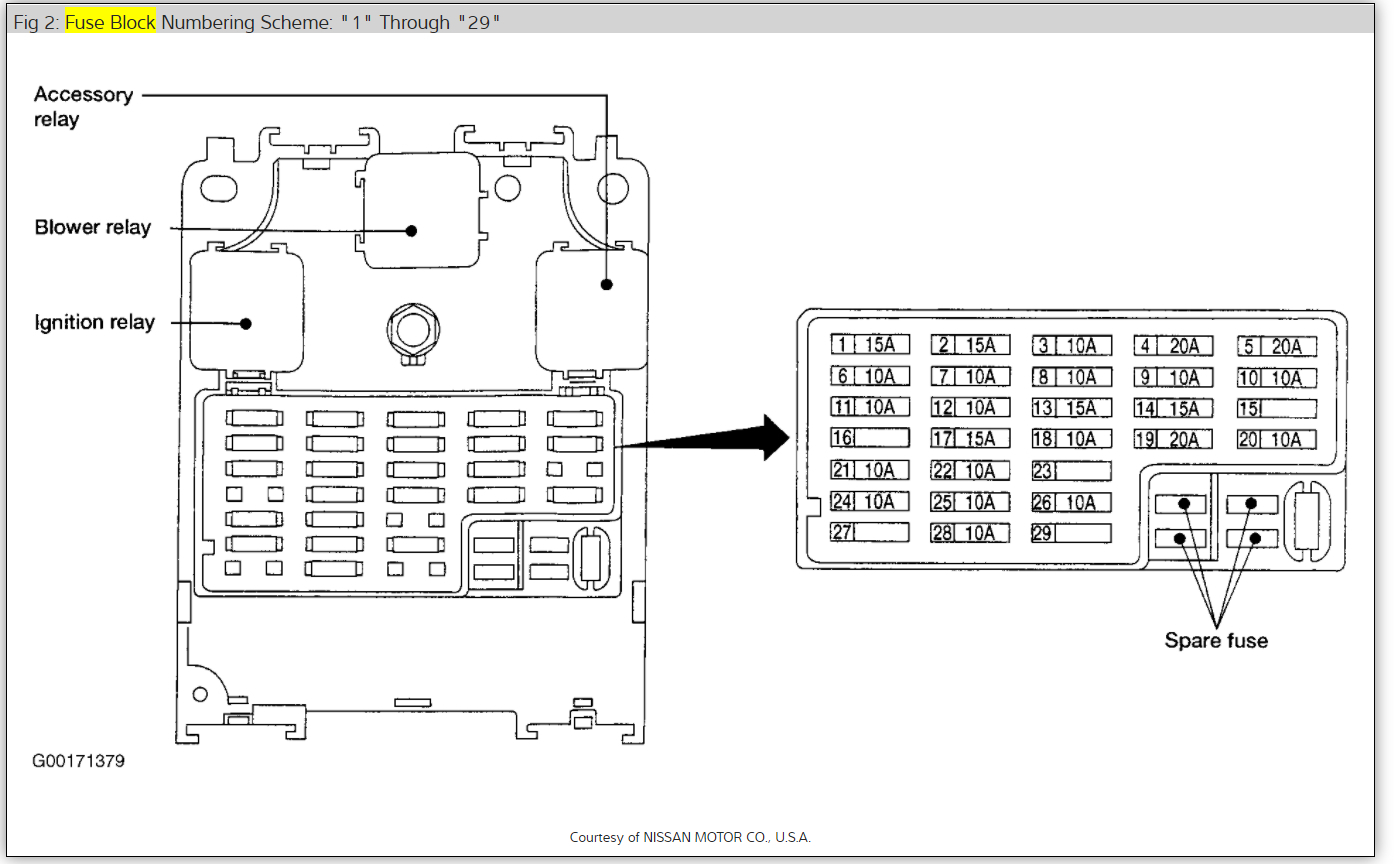

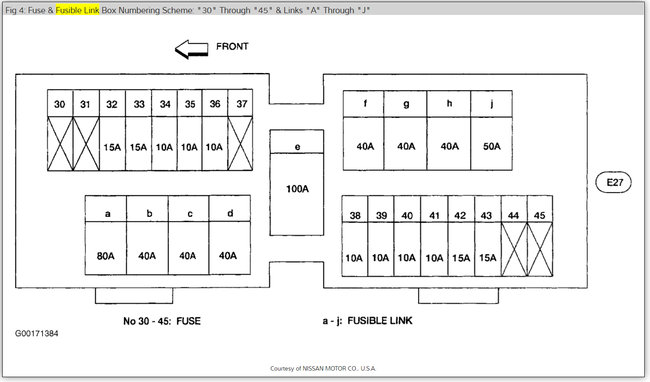

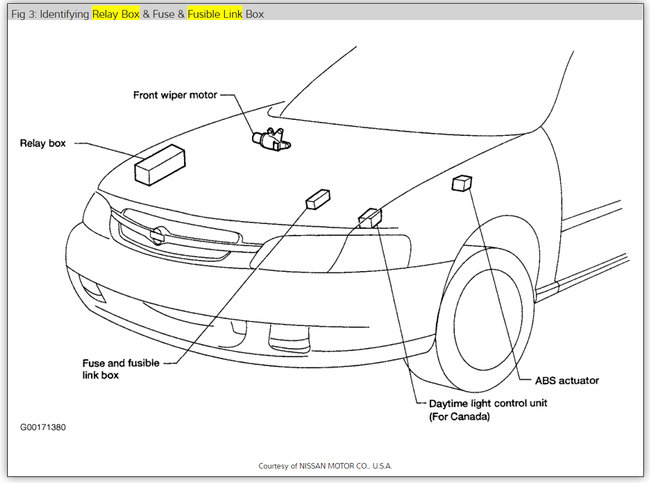

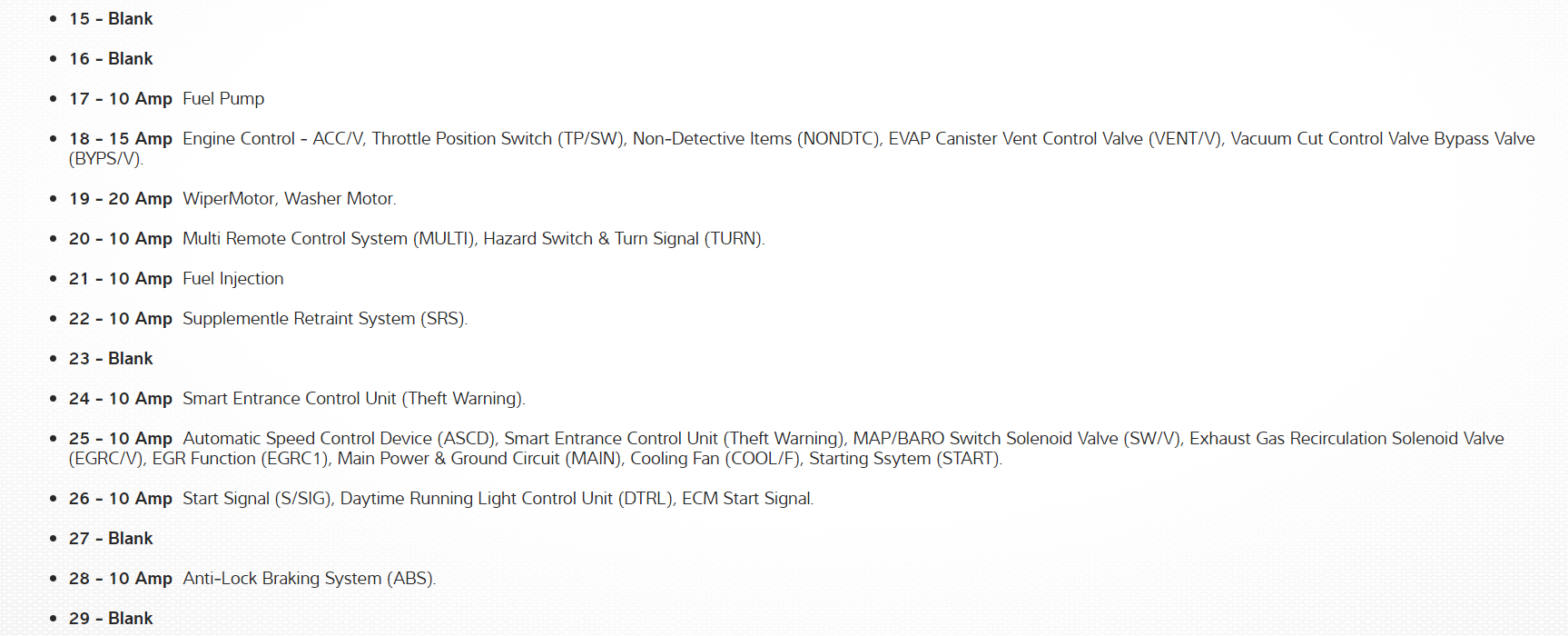

Check out the diagrams (Below)

Please let us know if you need anything else to get the problem fixed.

Cheers, Ken

Excellent! I fixed my door lock because the fusible link was bad this site is the best. Saved me $ ;)
