1998 Eclipse 2.0 Slave Cylinder

1998 MITSUBISHI ECLIPSE
130 MILES • 4 CYL • FWD • MANUAL
Avatar
GEARHEAD720
  • MEMBER
  • 3 POSTS
i was replacing the slave cylinder on a 1998 2.0 N/A Eclipse when i went to slip the new slave in from autozone the bleeder was rubbing on the center subframe. if i tighten the bolts down to secure the slave the bleeder is pinned up against the frame. does anyone have a part number? i went to autozone and they could not find nothing that matches to the oem slave i took off. The old slave bleeder was up top of the slave and the new for autozone is underneath next to the banjo. Thanks,SkyZero
Jan 8, 2011 at 7:08 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Anyway you can post a picture of your old slave cylinder?That would really help.Do you have a turbo or non turbo engine?
Jan 8, 2011 at 7:31 PM
Avatar
GEARHEAD720
  • MEMBER
  • 3 POSTS
it's N/A Motor. I dont have it on hand but i will as soon as i can get ahold of the stock one.
Jan 8, 2011 at 7:56 PM
Advertisement
Avatar
GEARHEAD720
  • MEMBER
  • 3 POSTS
when the oem slave cylinder was in its place the 90 degree banjo was at the bottom of the slave cylinder and the bleeder was on top easy accessable. The new slave cylinder Both banjo and Bleeder are on bottom.
Jan 8, 2011 at 8:08 PM
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Those are all the one's i have seen also with the bleeder screw by the banjo.Here is the factory part number.
Slave Cylinder 04670065 $117.32

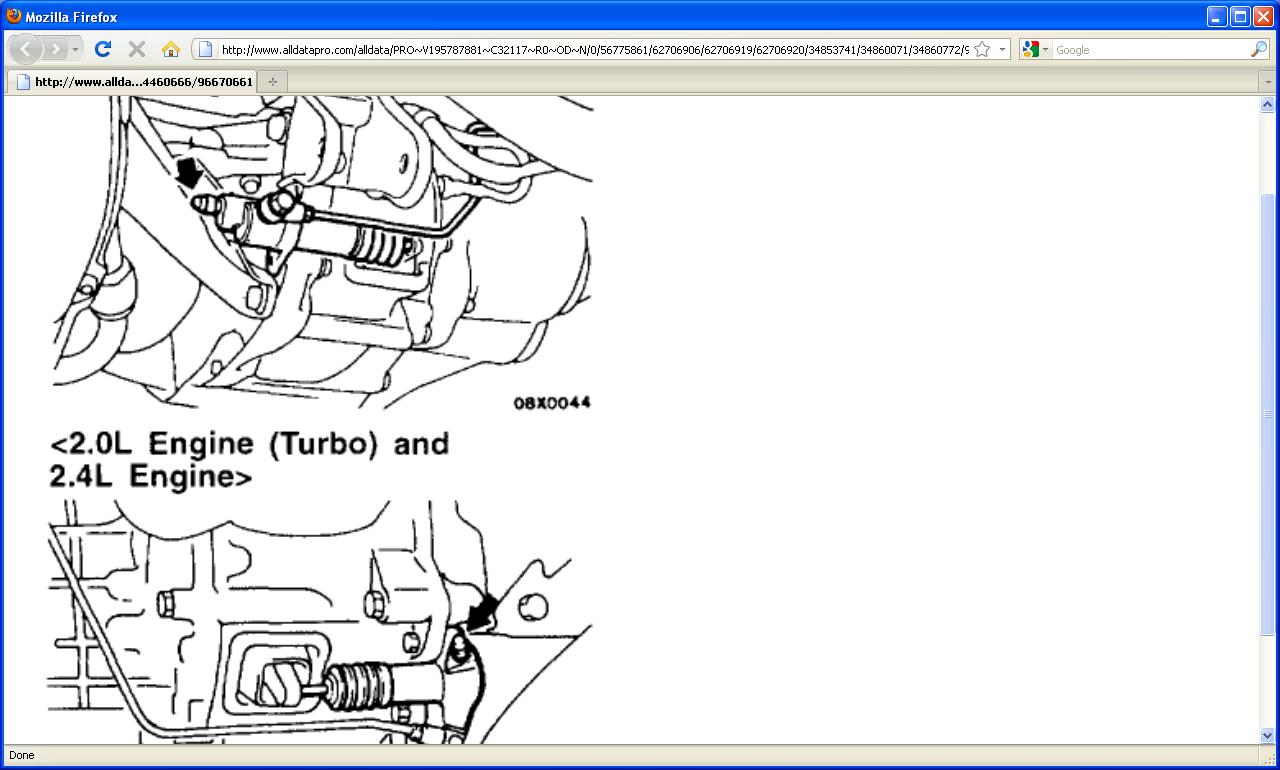

So does yours look like the top one in the diagram i posted or the bottom one?
Image (Click to enlarge)
Attached Media
Jan 8, 2011 at 8:18 PM
