Where is the fuse box located in my car? I am having a hard time finding it.
Mar 4, 2013 at 8:25 PM
Fuse box having a hard time
1998 MITSUBISHI DIAMANTE
ANONYMOUS
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Greetings

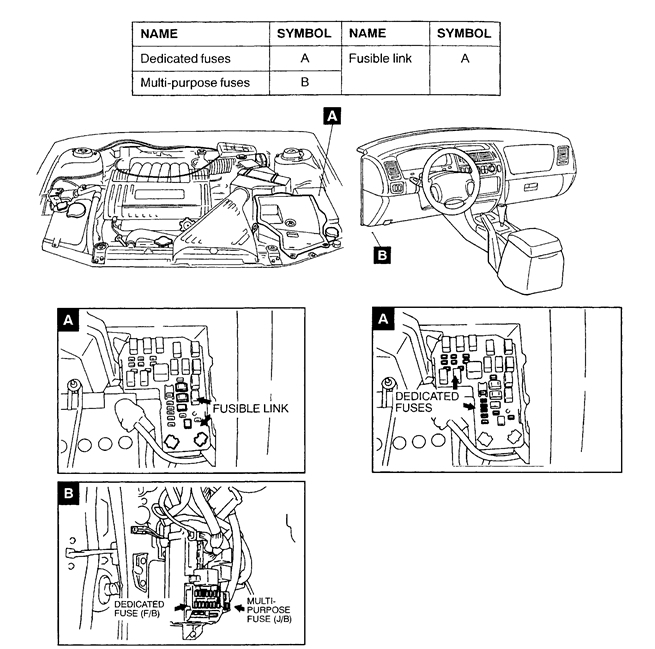

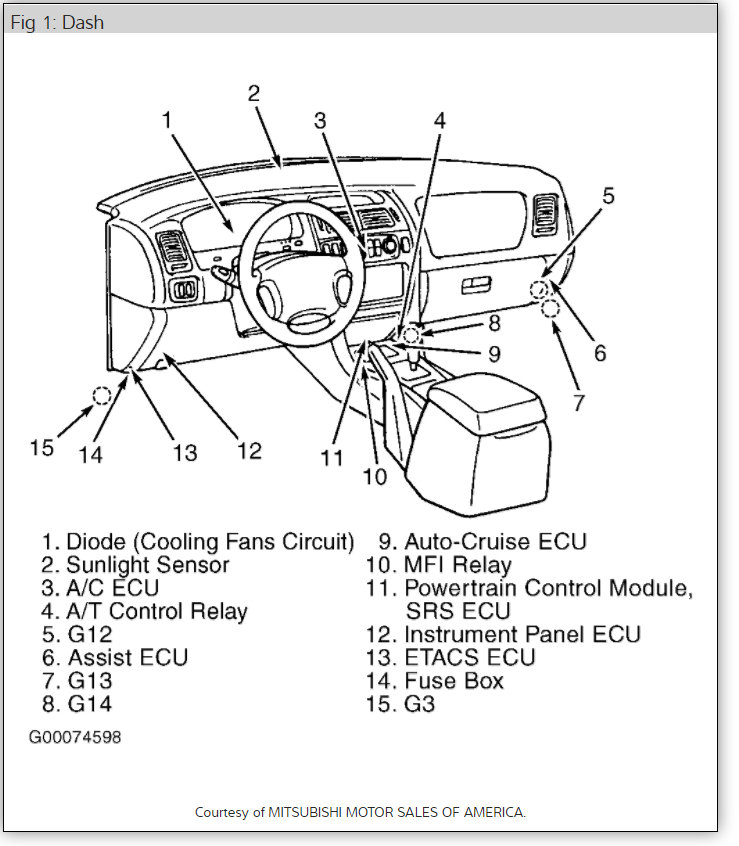

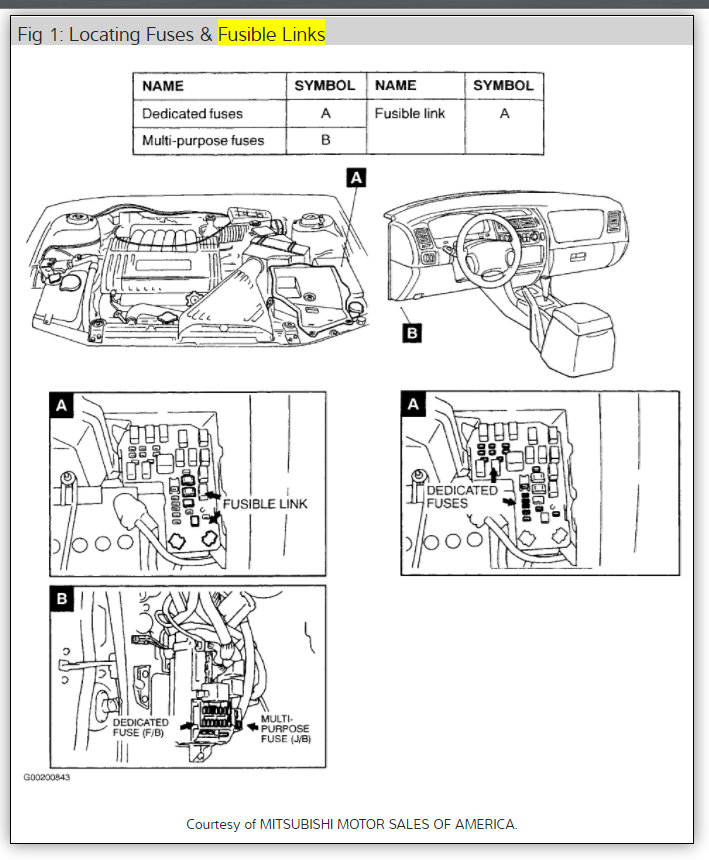

I have posted a diagram to help you locate your vehicle's fuses and a guide to elp you test them.
https://www.2carpros.com/articles/how-to-check-a-car-fuse

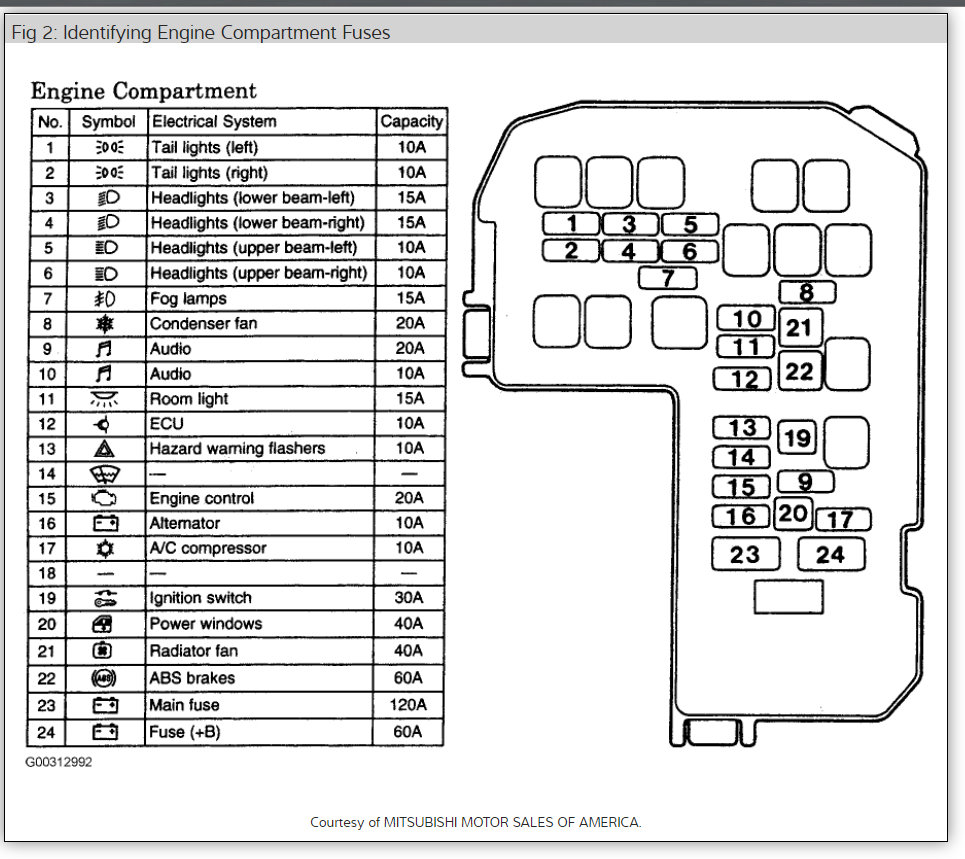

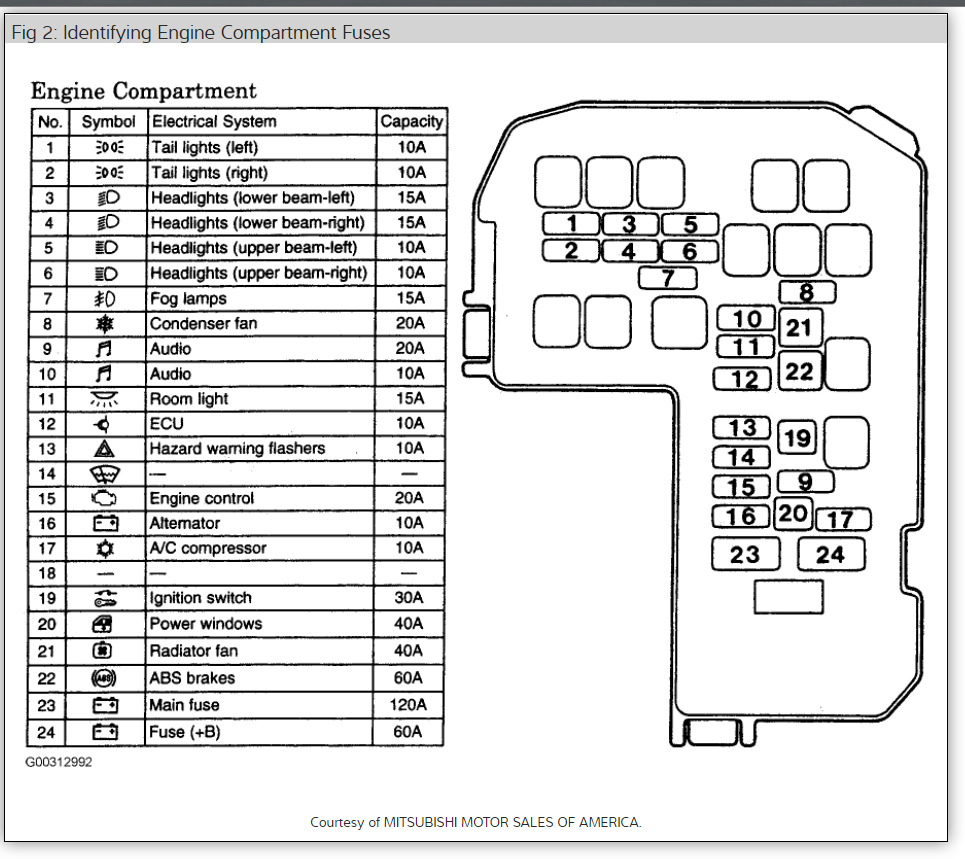

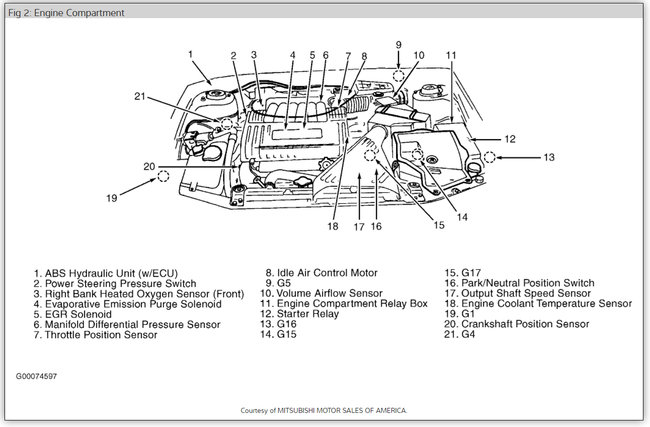

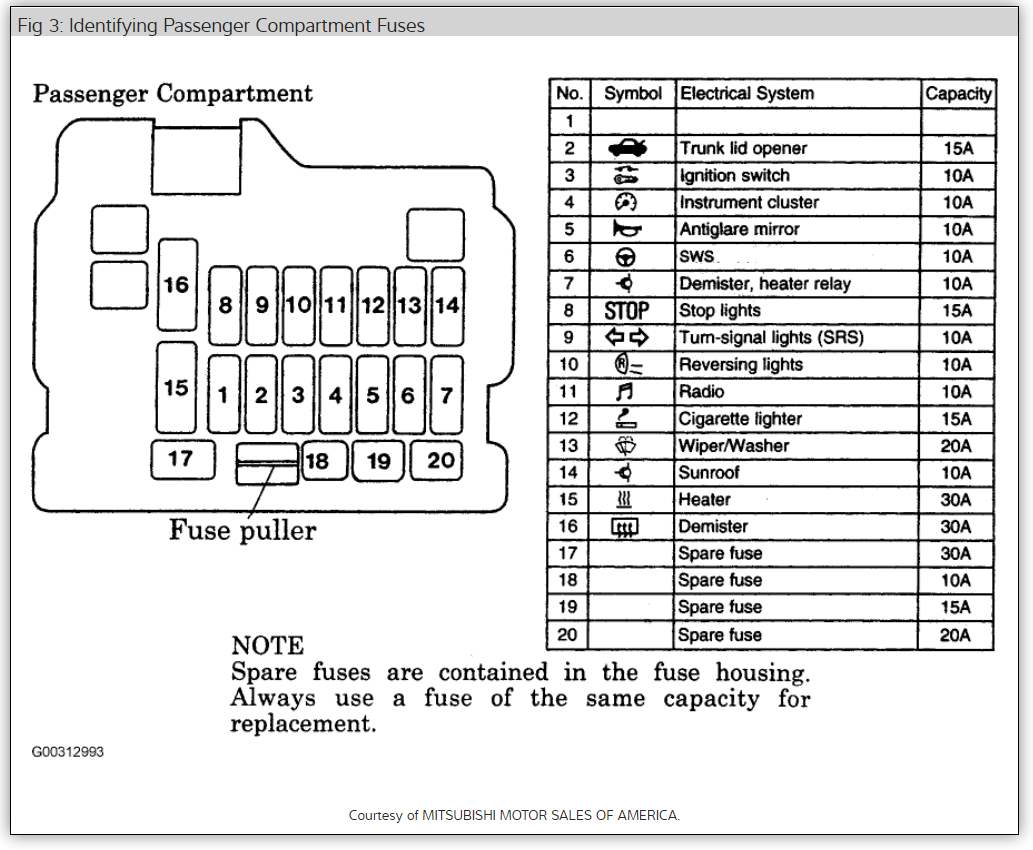

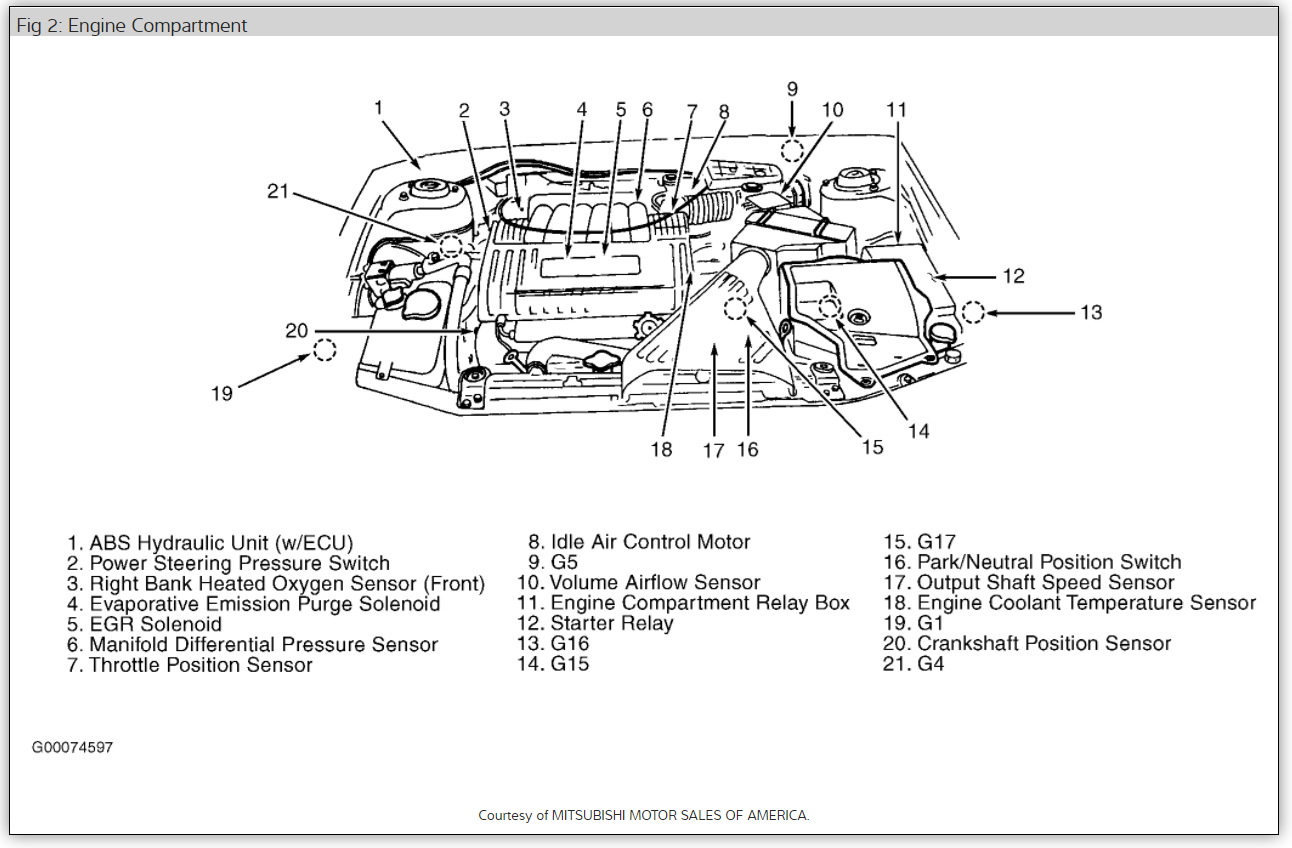

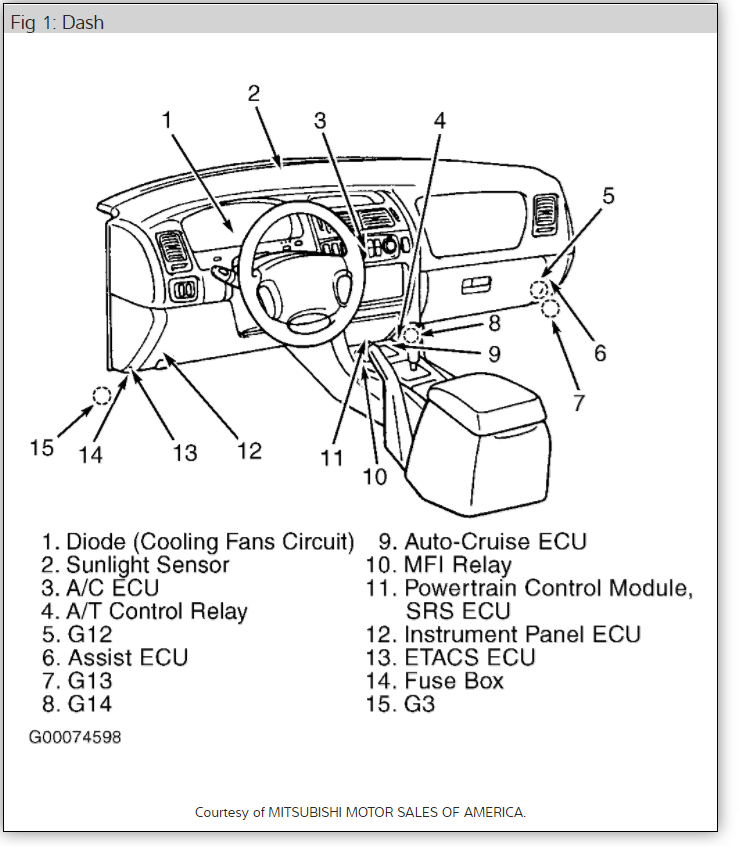

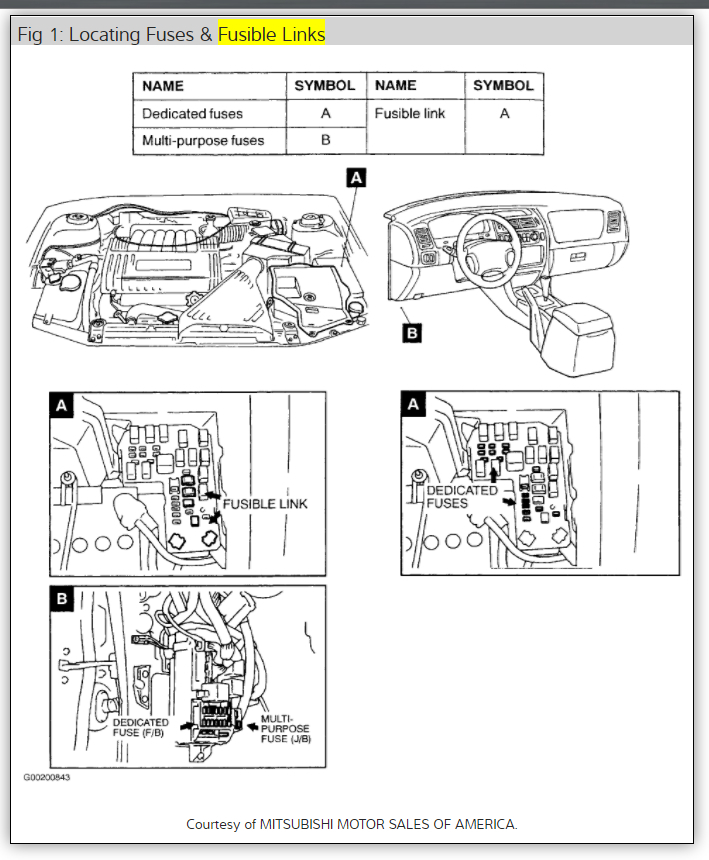

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
I have posted a diagram to help you locate your vehicle's fuses and a guide to elp you test them.
https://www.2carpros.com/articles/how-to-check-a-car-fuse
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Mar 4, 2013 at 9:19 PM
