1998 Mercury Tracer blower motor

1998 MERCURY TRACER
160,000 MILES
Avatar
JOECLARK385
  • MEMBER
  • 1 POST
Where is the blower motor found on my 1998 mercury tracer. I was driving and my a/c just quit working. Now none of my heating functions are working. If its not my blower motor what else could it be? Also how can I see if its just clogged.
Jul 15, 2013 at 9:07 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

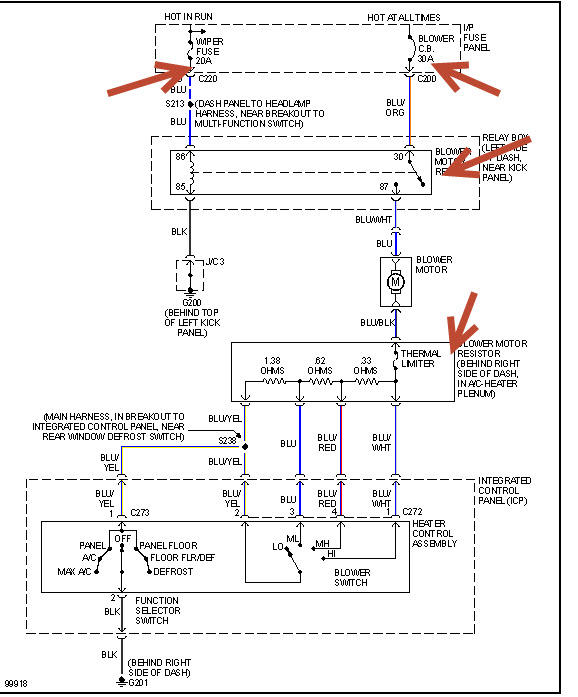

check to see if your blower motor resistor and relay are working also check your fuses it may have blown one. check what I've pointed out in drawing. check to see if resistor is getting power and if circuit breaker hasn't dengaged.
Image (Click to enlarge)
Attached Media
Jul 15, 2013 at 9:56 AM
