where is the fuel pump relay located and what does it look like?
Nov 24, 2012 at 2:49 AM
fuel pump relay location
1998 MERCEDES BENZ C230
ANONYMOUS
- MEMBER
- 1 POST
- FOLLOW
Advertisement
The fuel pump relay module is on the right side of trunk here is a guide to help tst it with the fuse and relay location below.
https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

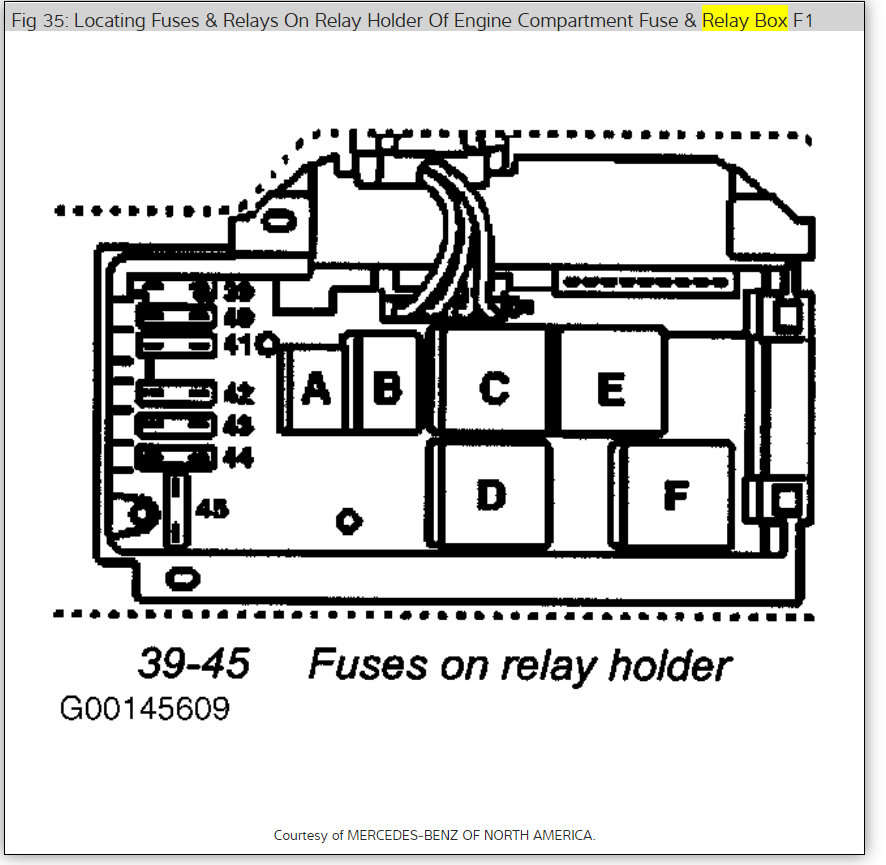

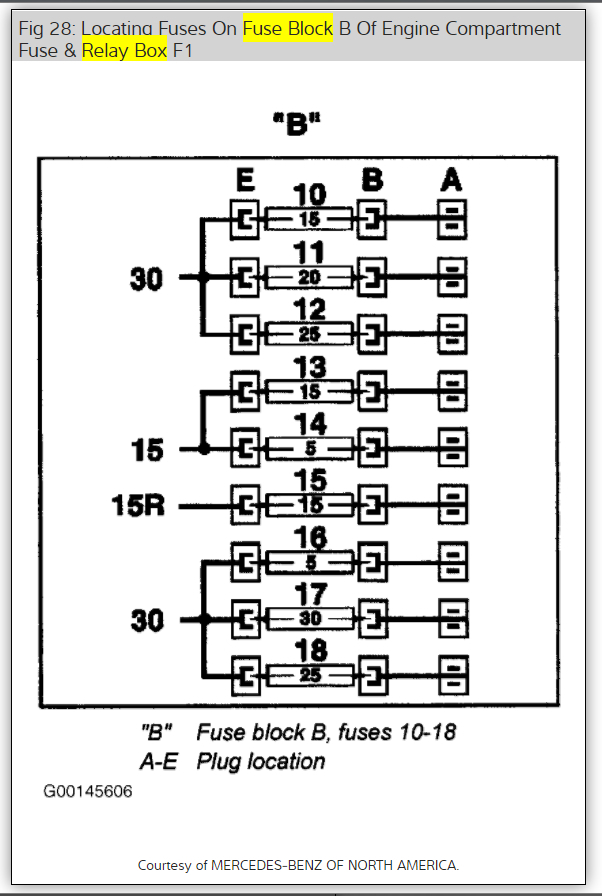

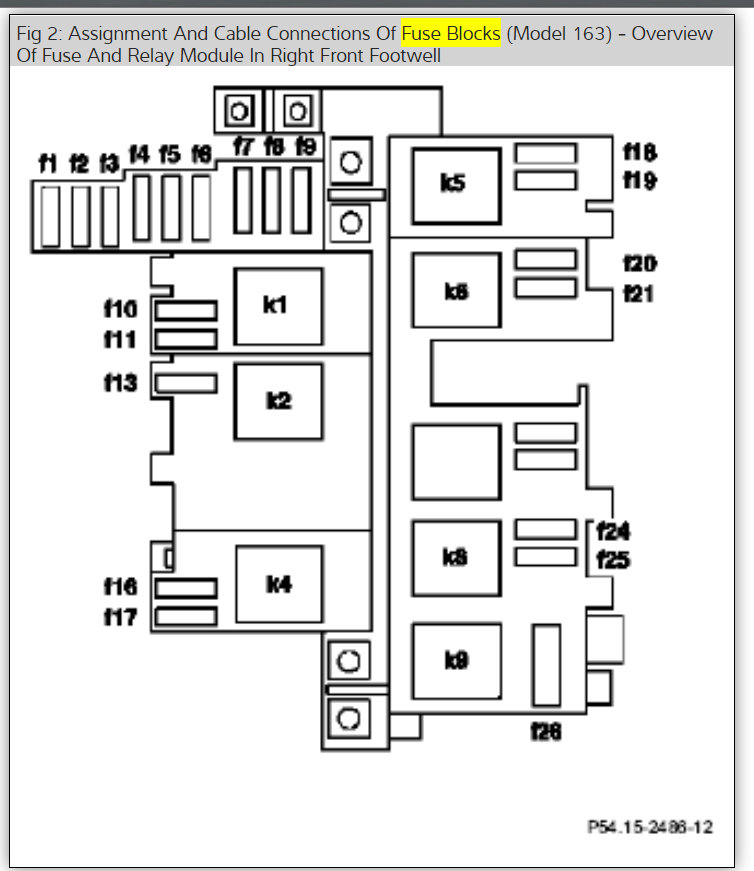

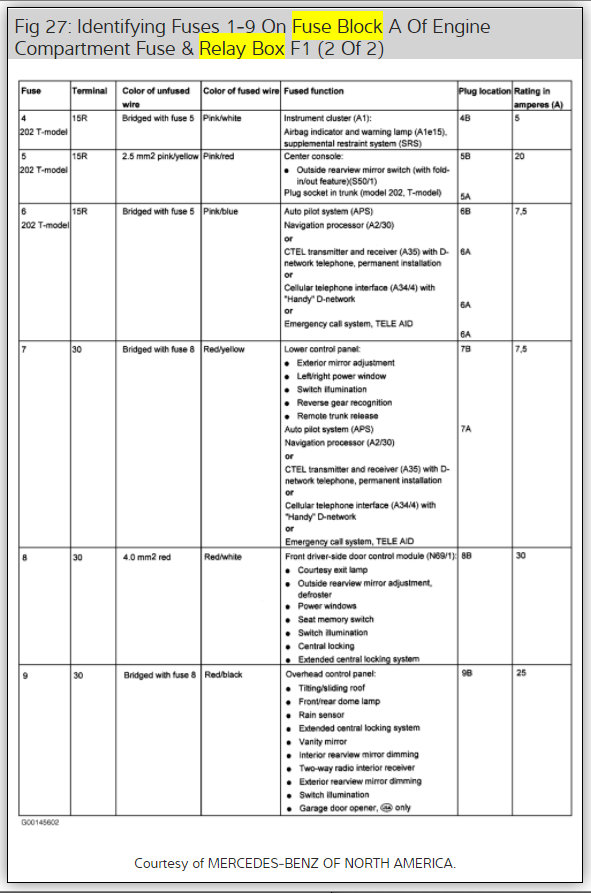

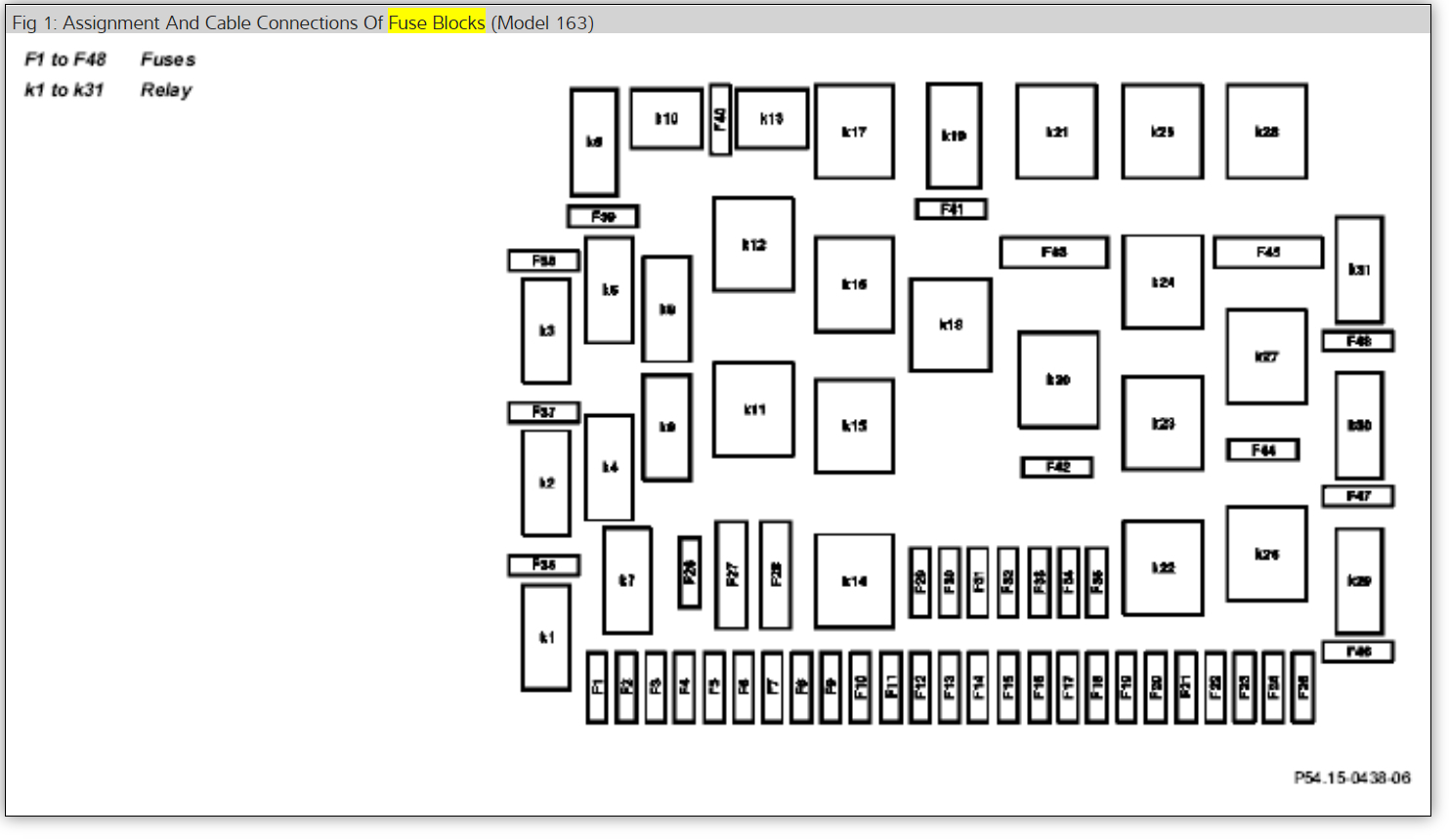

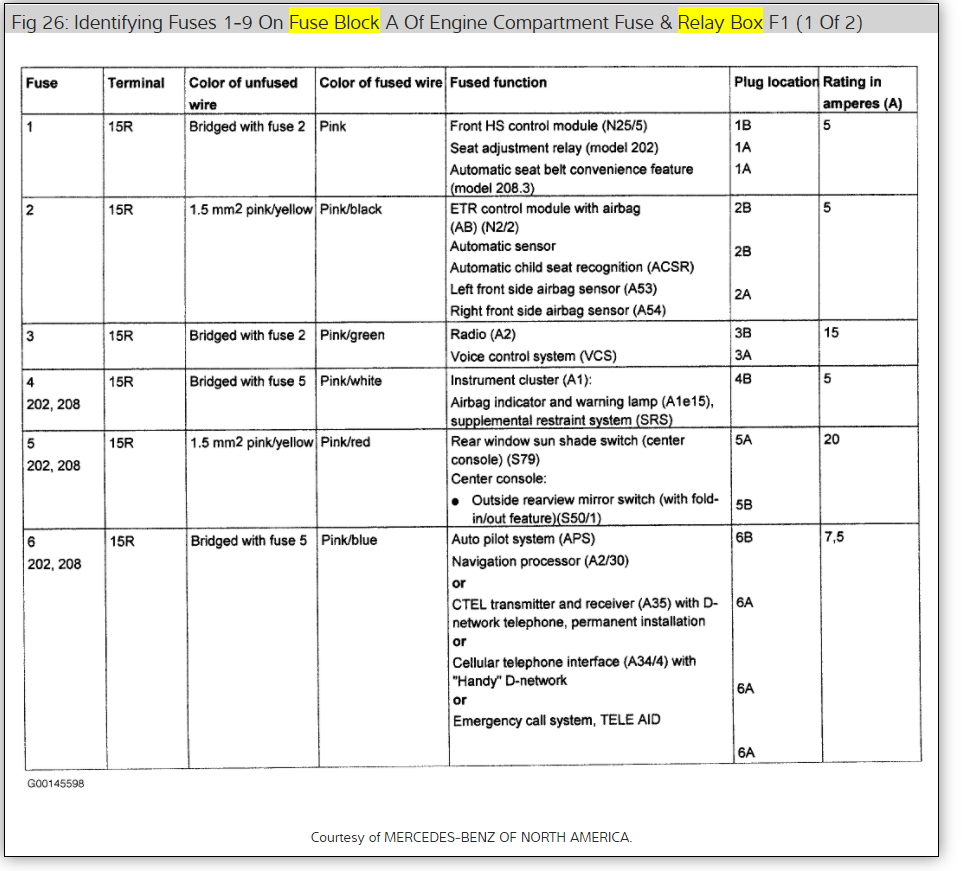

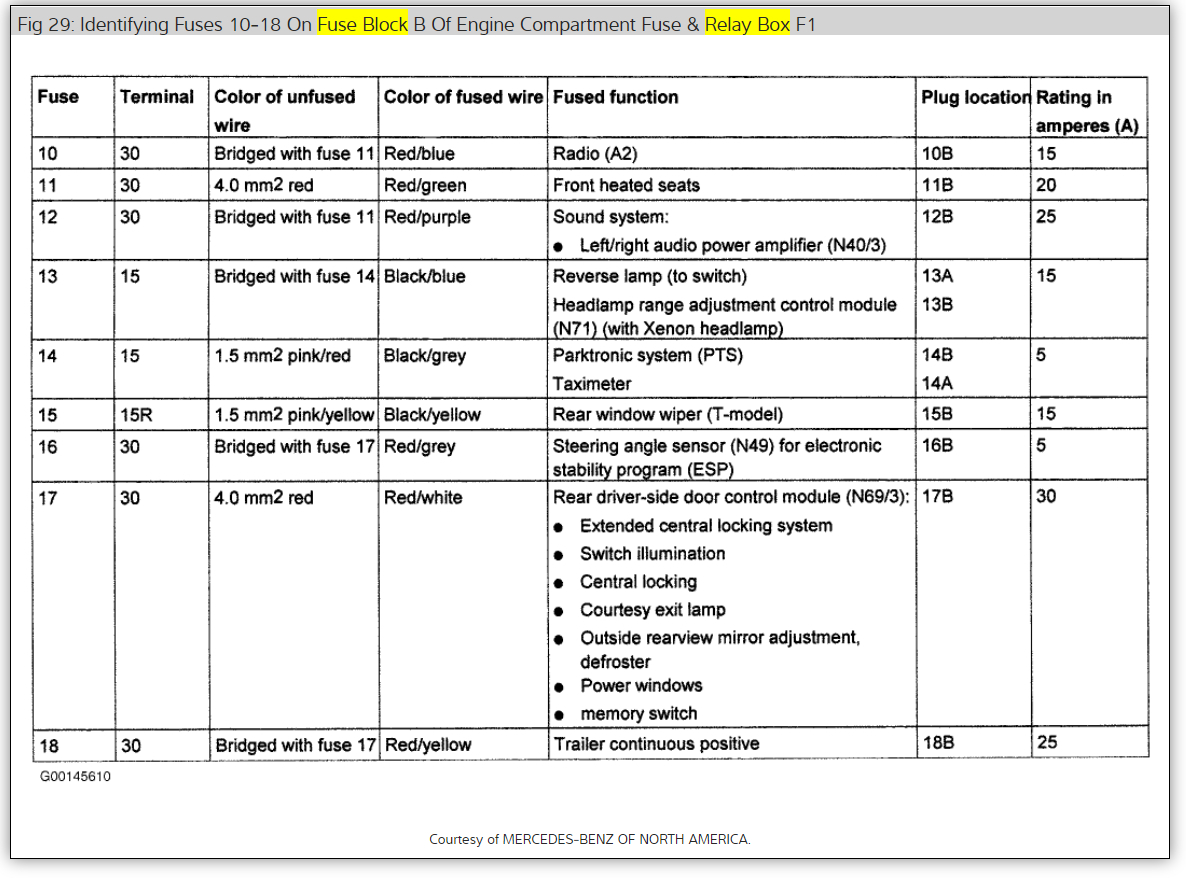

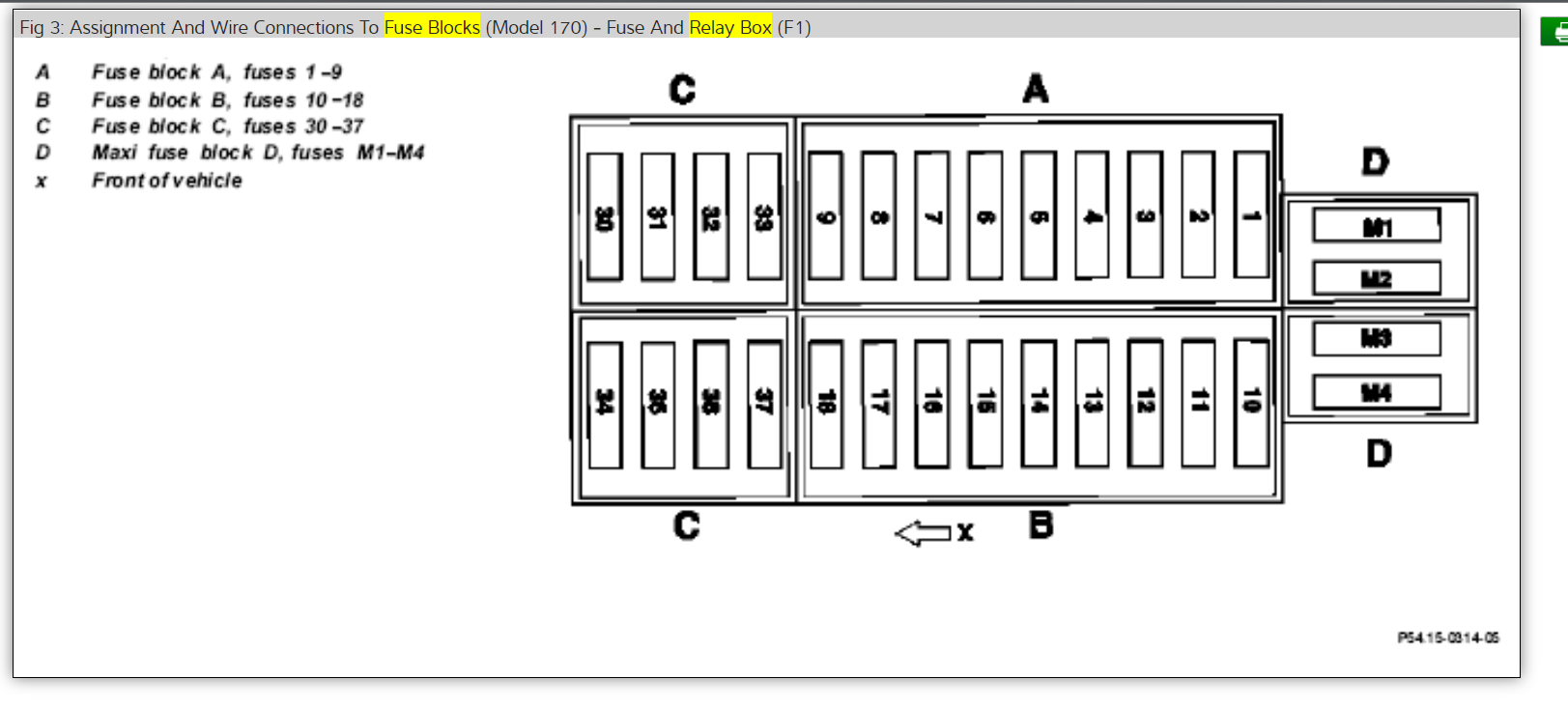

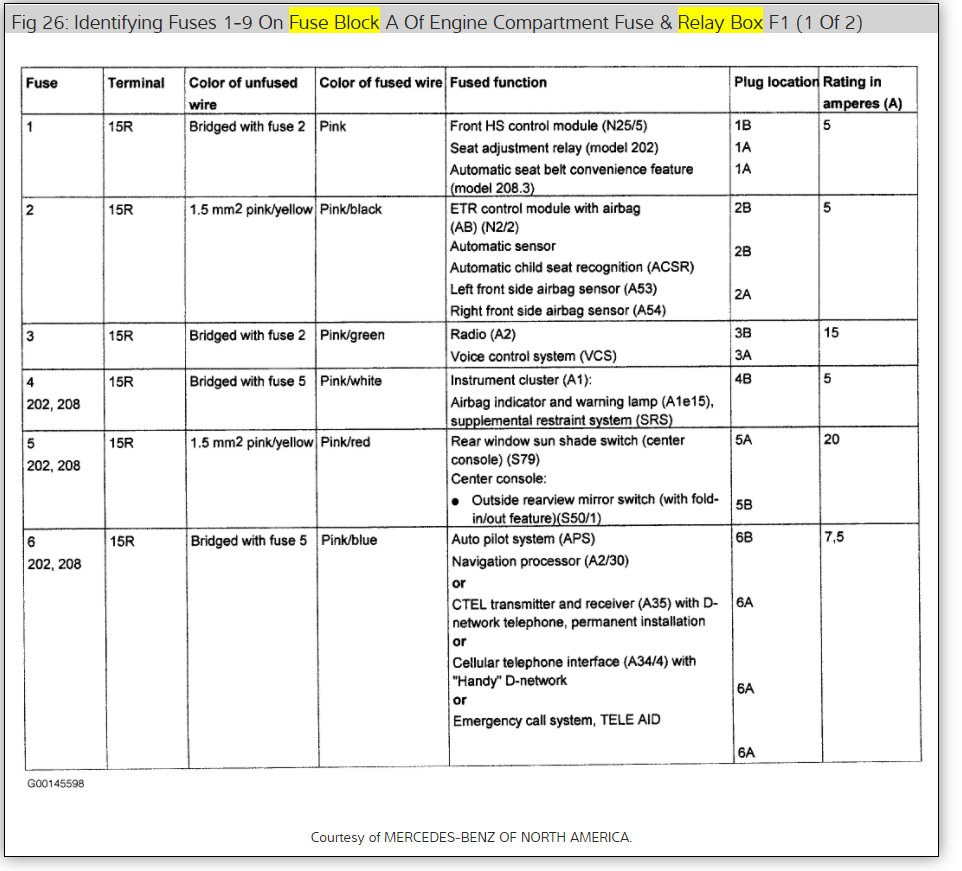

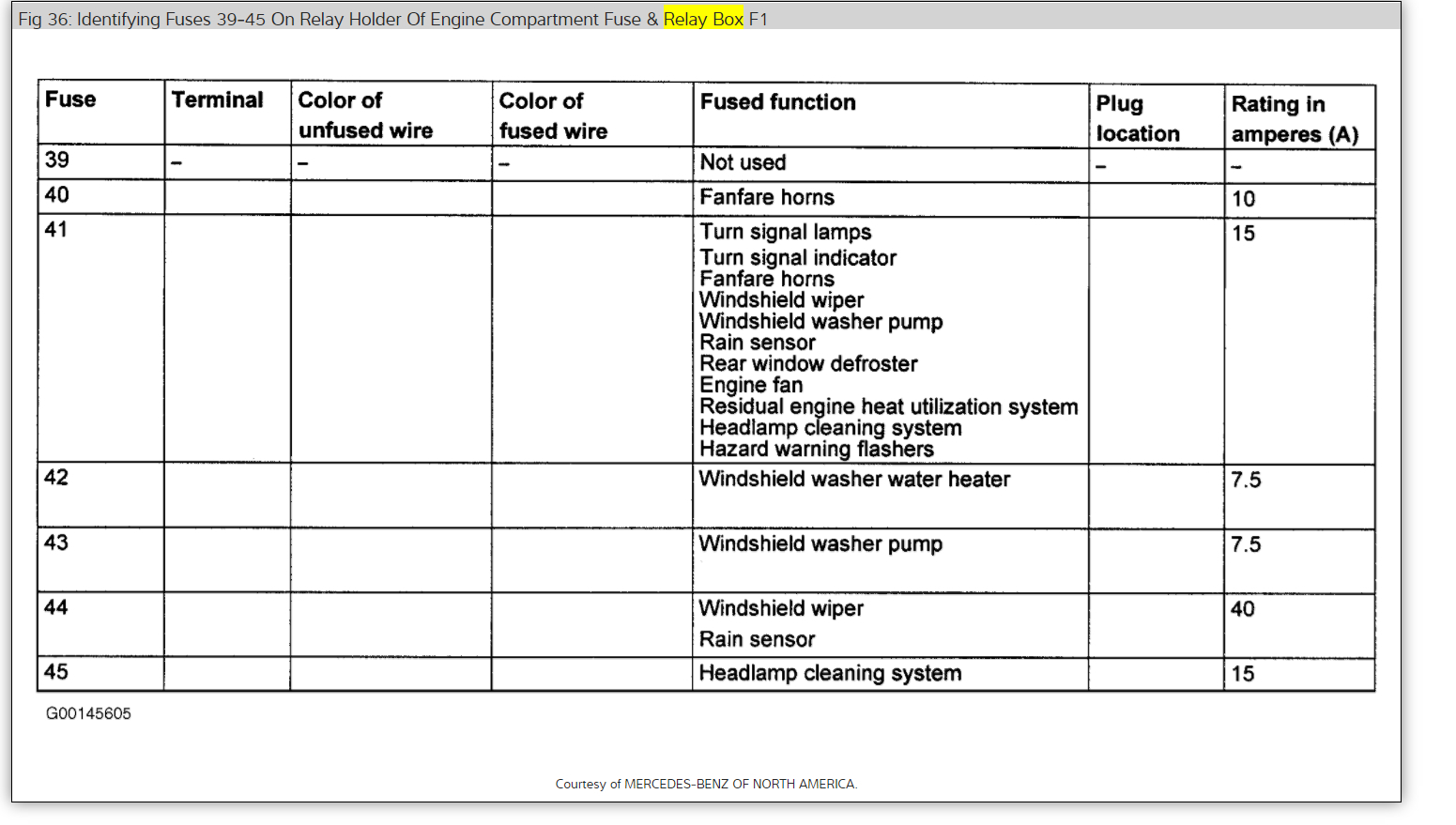

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
