I am getting a P1506 error code?

1998 MAZDA 626
250,000 MILES • 2.0L • 4 CYL • 2WD • MANUAL
Avatar
RDELAUNE
  • MEMBER
  • 1 POST
I am getting a P1506 error code. The following have been cleaned: MAF, Throttle Body, IAC, EGR. The respective gaskets have been replaced. After cleaning the parts, the engine was idle "hunting", about 250RPM, so I adjusted the idle. The "hunting" is now very minimal, really not noticeable. I am still getting the P1506 error code. Any ideas??? Does it sound like I need to continue adjusting the idle? Thank you.
Jan 23, 2015 at 2:43 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

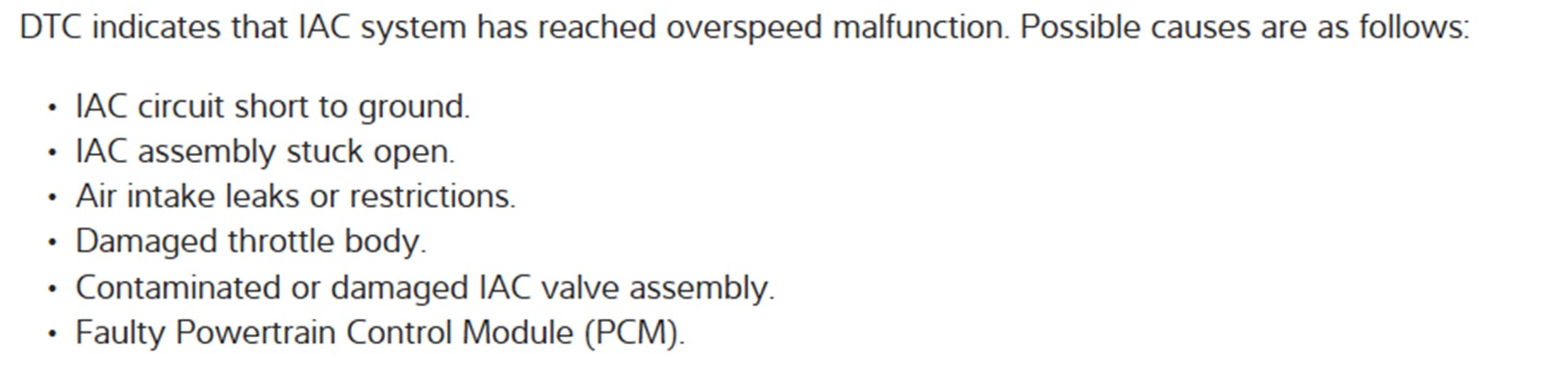

e pic for causes but also check for a vacuum leak and air leak between air cleaner and throttle body.
Image (Click to enlarge)
Attached Media
Jan 24, 2015 at 6:29 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
The error code P1506 on a 1998 Mazda 626 indicates an issue with the Idle Air Control (IAC) system, specifically an "Idle Air Control Overspeed Error." So this means the IAC is stuck, I would remove it and clean it here is a guide to help and the location of the IAC in the images below.

https://www.2carpros.com/articles/idle-air-control-valve-service

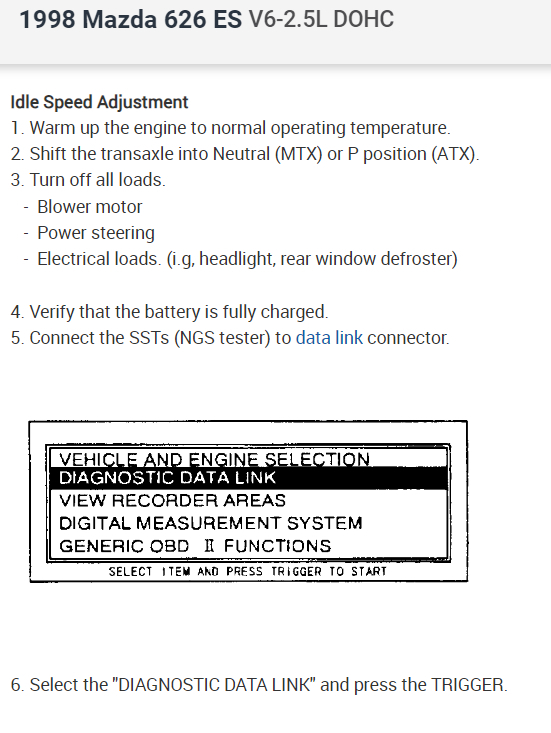

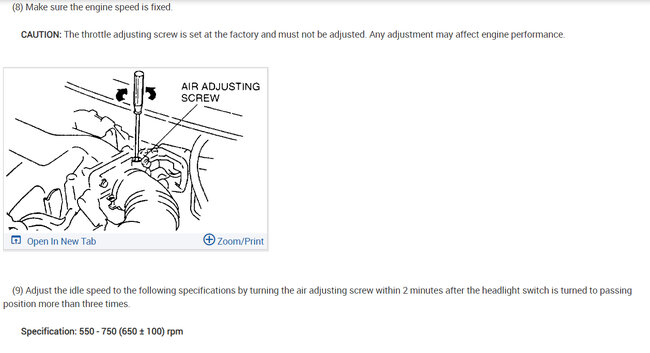

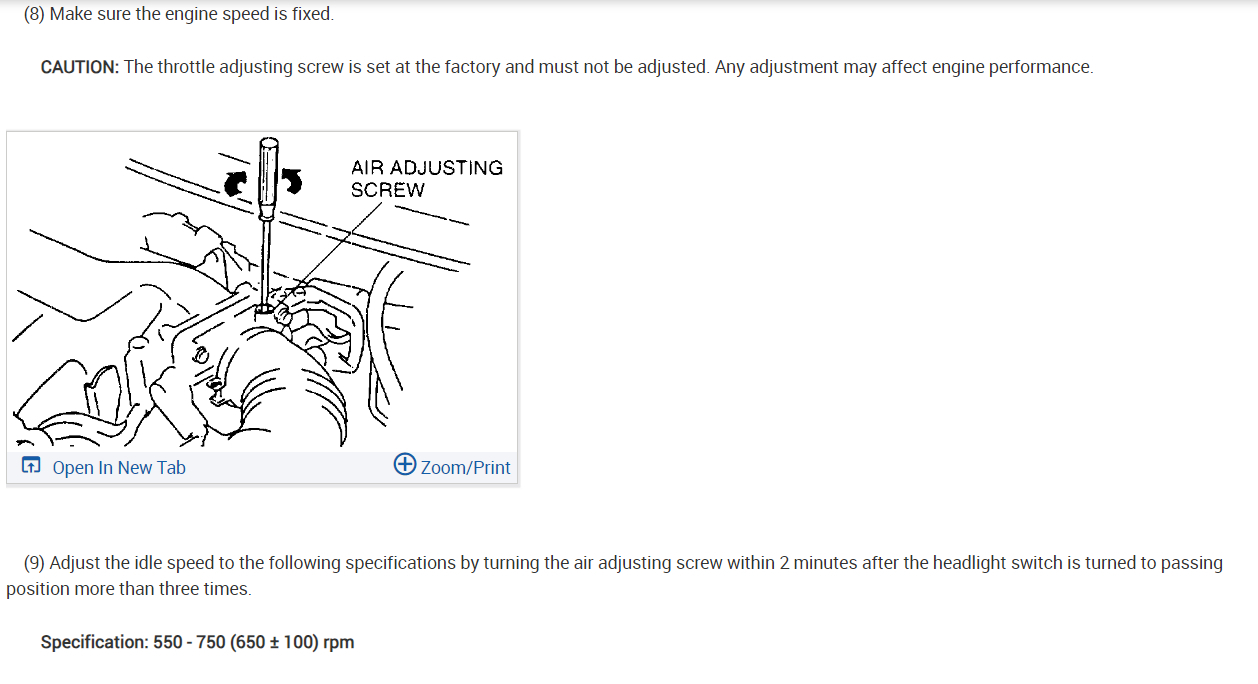

If cleaning does not work replace the valve. It could be the idle speed adjustment as well. Check out the images (below). Please let us know what happens.
Images (Click to enlarge)
Attached Media
Attached Media
Sep 27, 2024 at 2:06 PM
