i need a copy of the passenger side fuse box diagram for a 98 lexus gs 300
Jun 13, 2011 at 7:11 AM
locate a fuse box diagram
1998 LEXUS GS 300
MALOU307
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hello,
Here is a guide on how to check the fuses and all of the fuse panel locations and descriptions and relay locations as well.
https://www.2carpros.com/articles/how-to-check-a-car-fuse

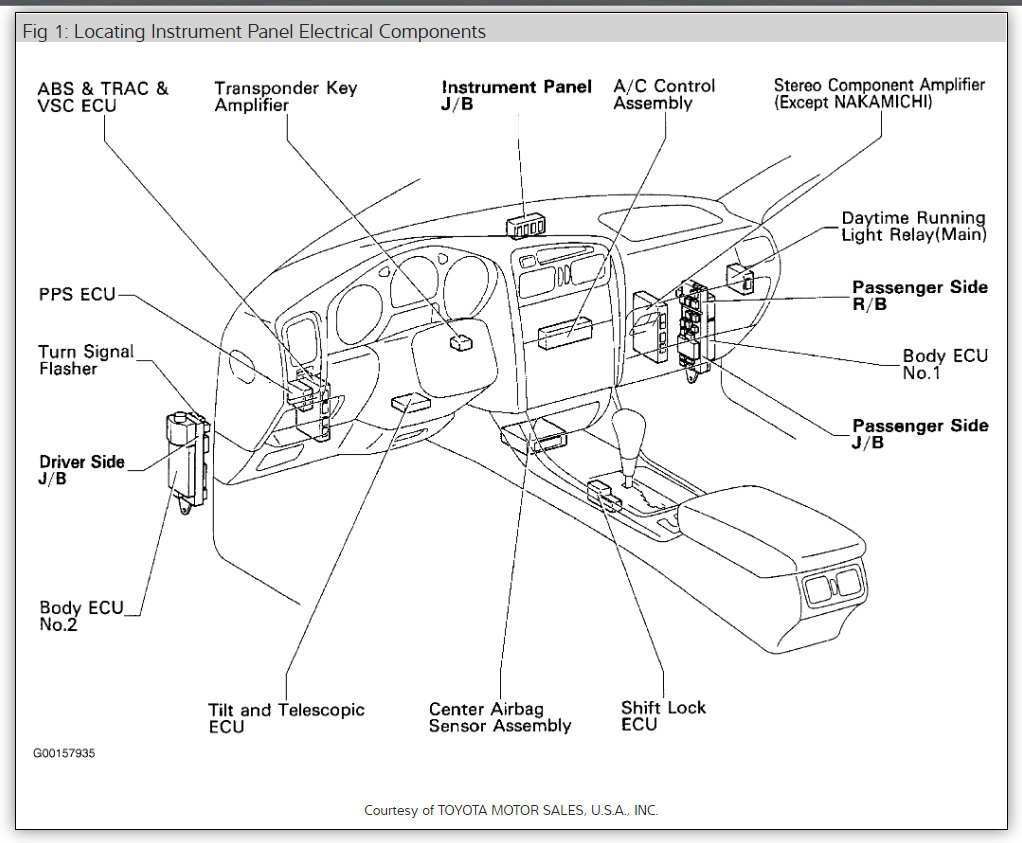

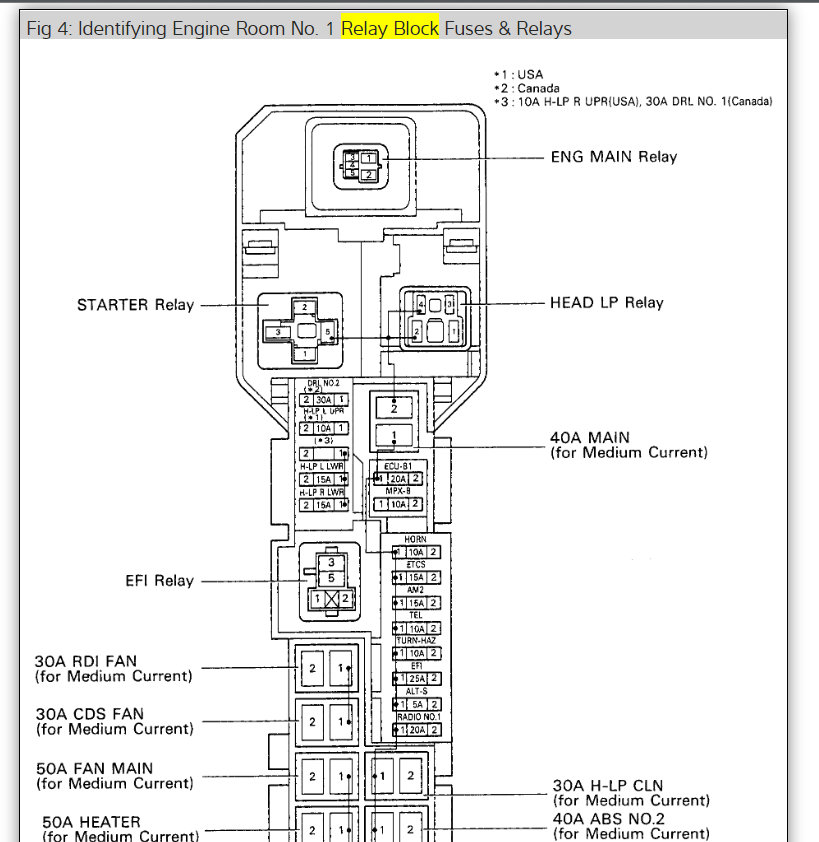

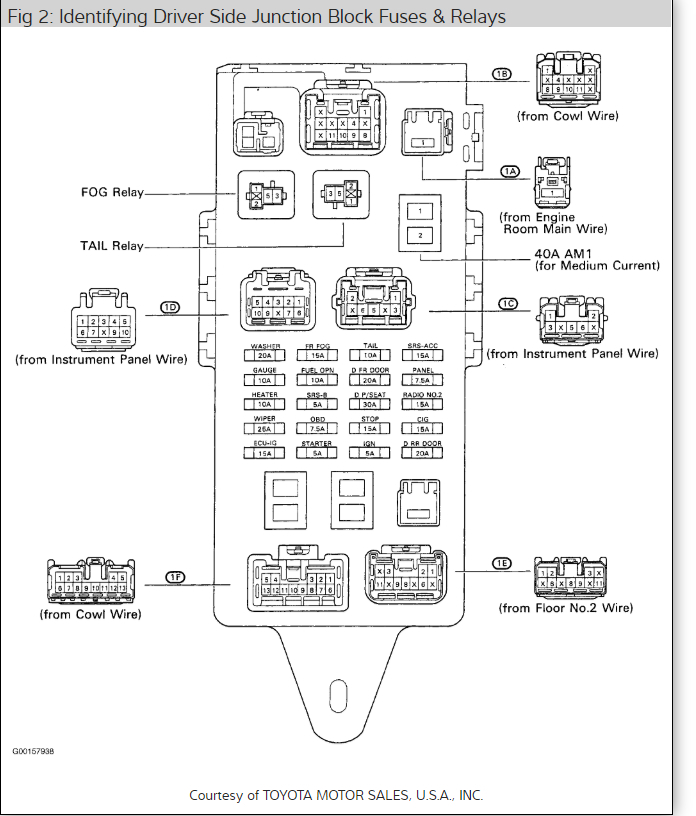

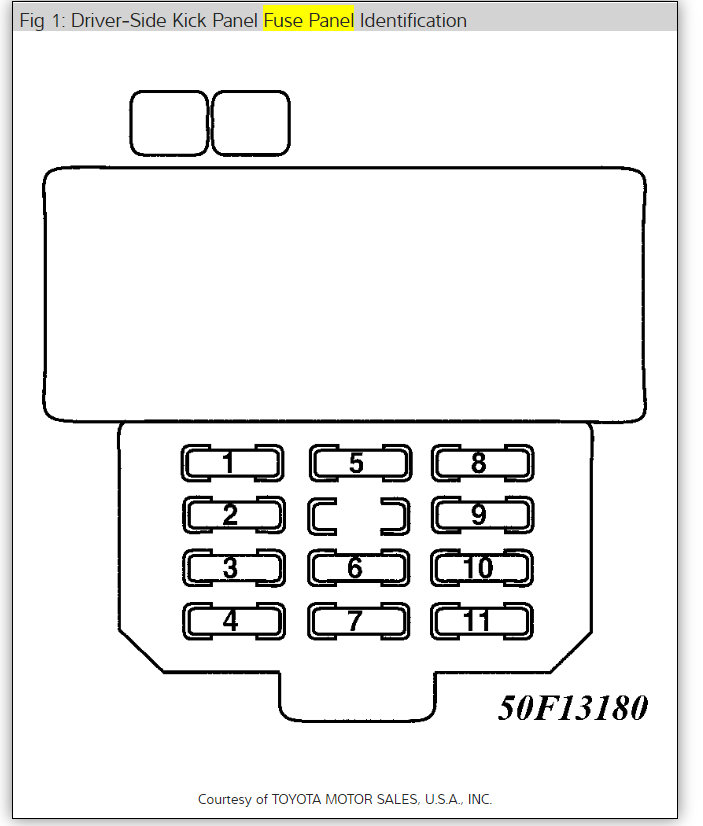

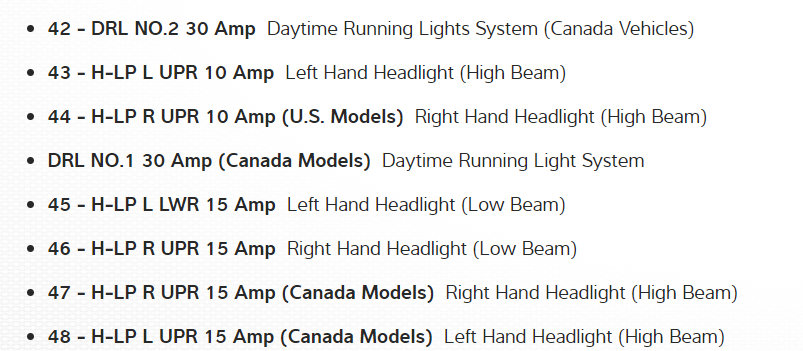

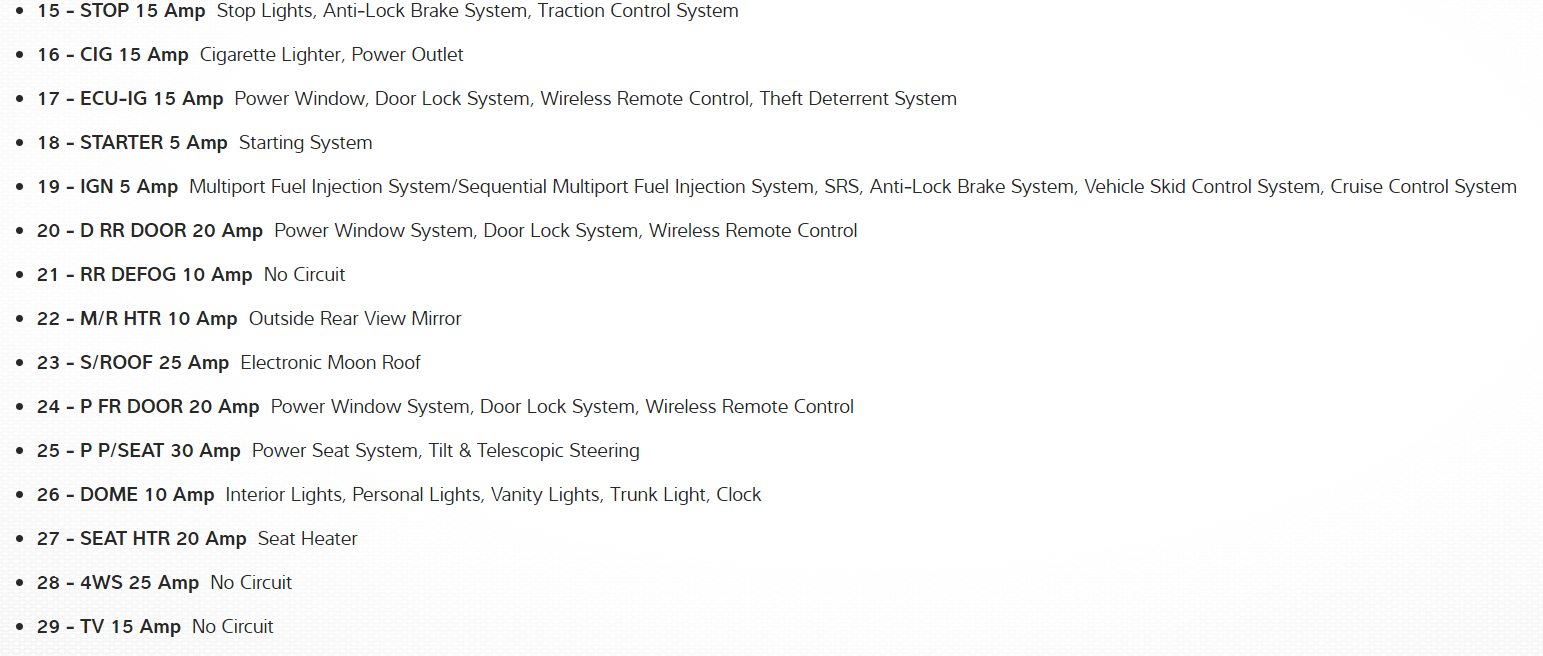

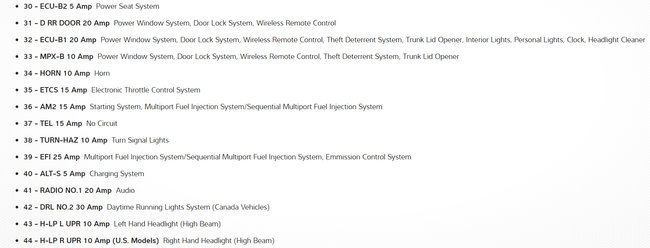

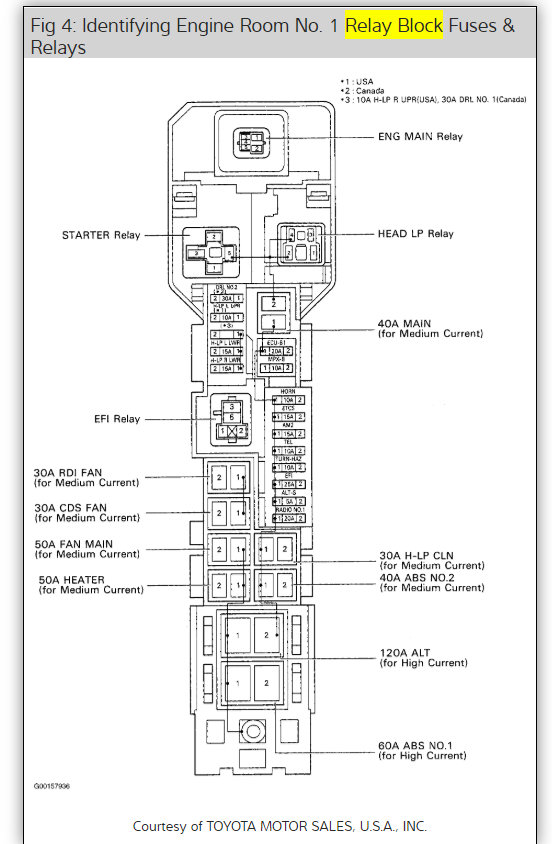

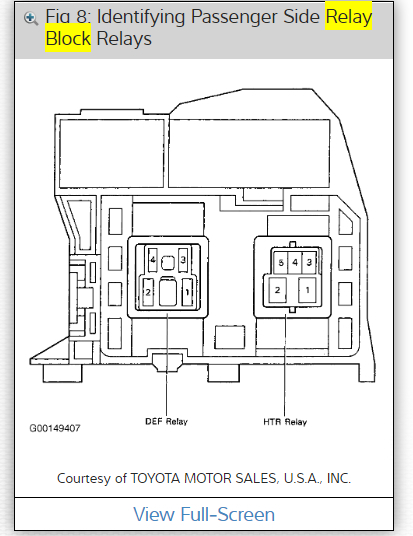

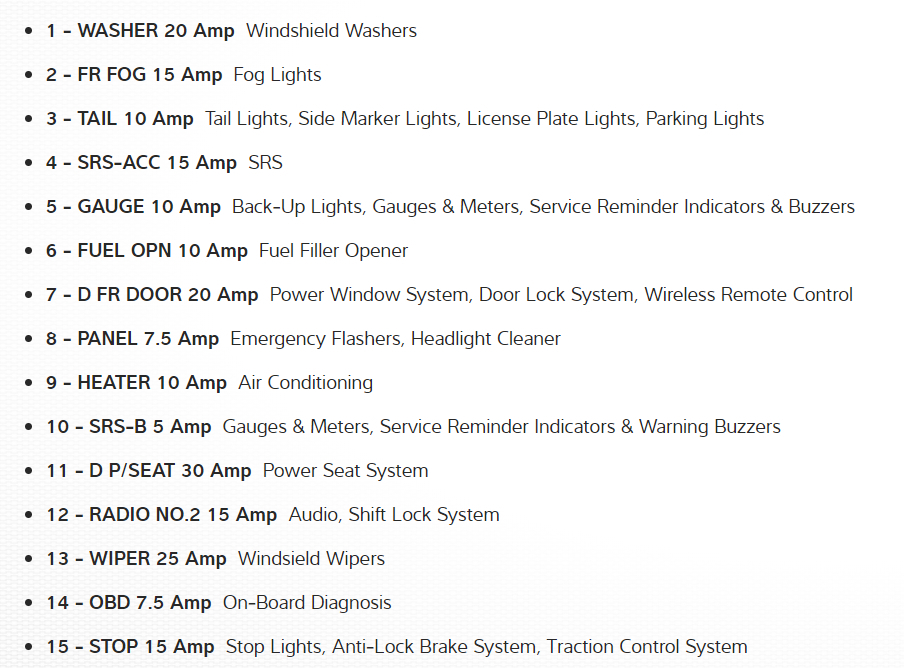

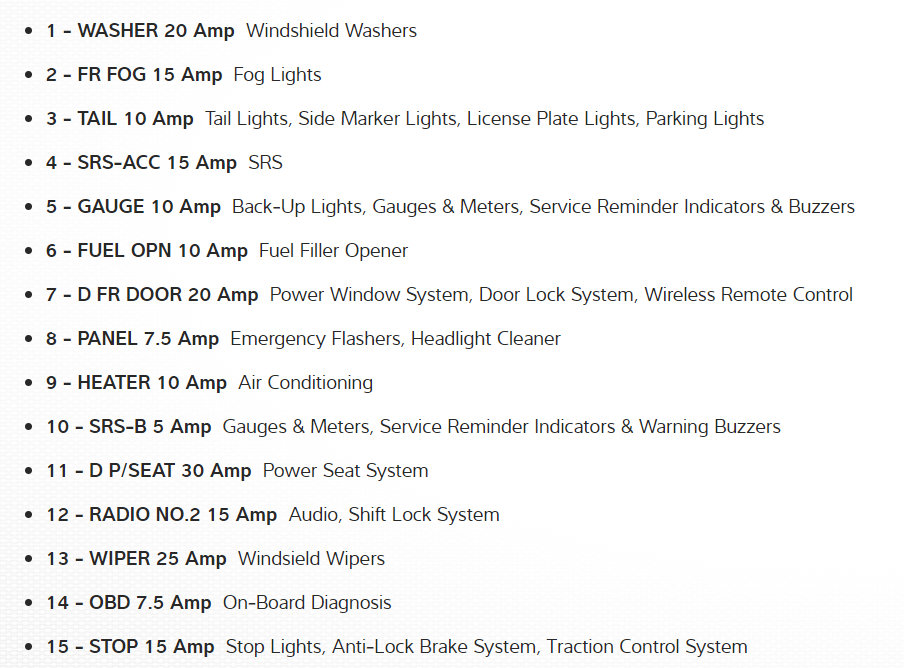

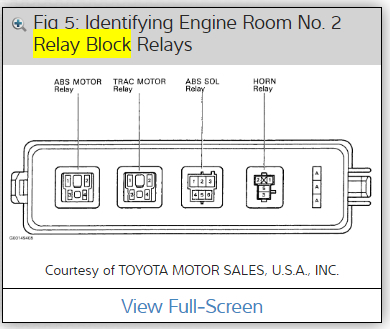

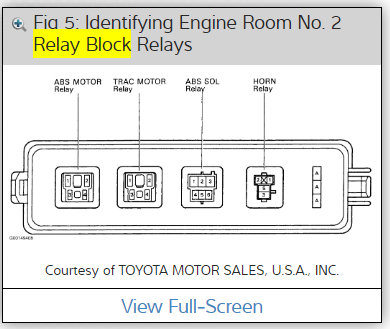

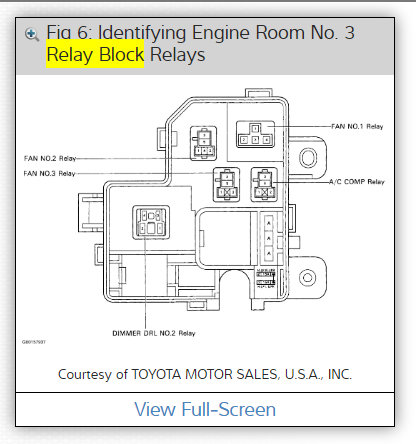

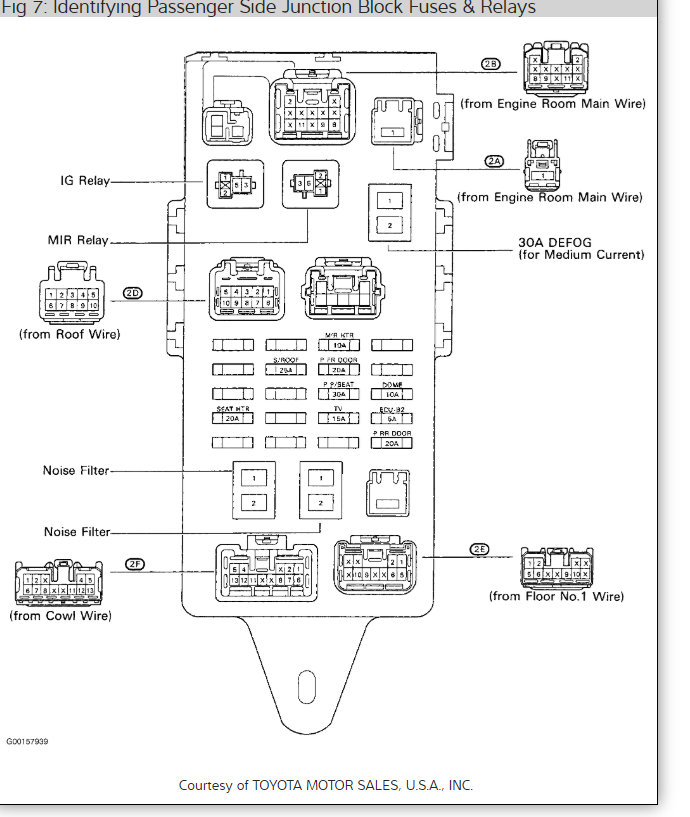

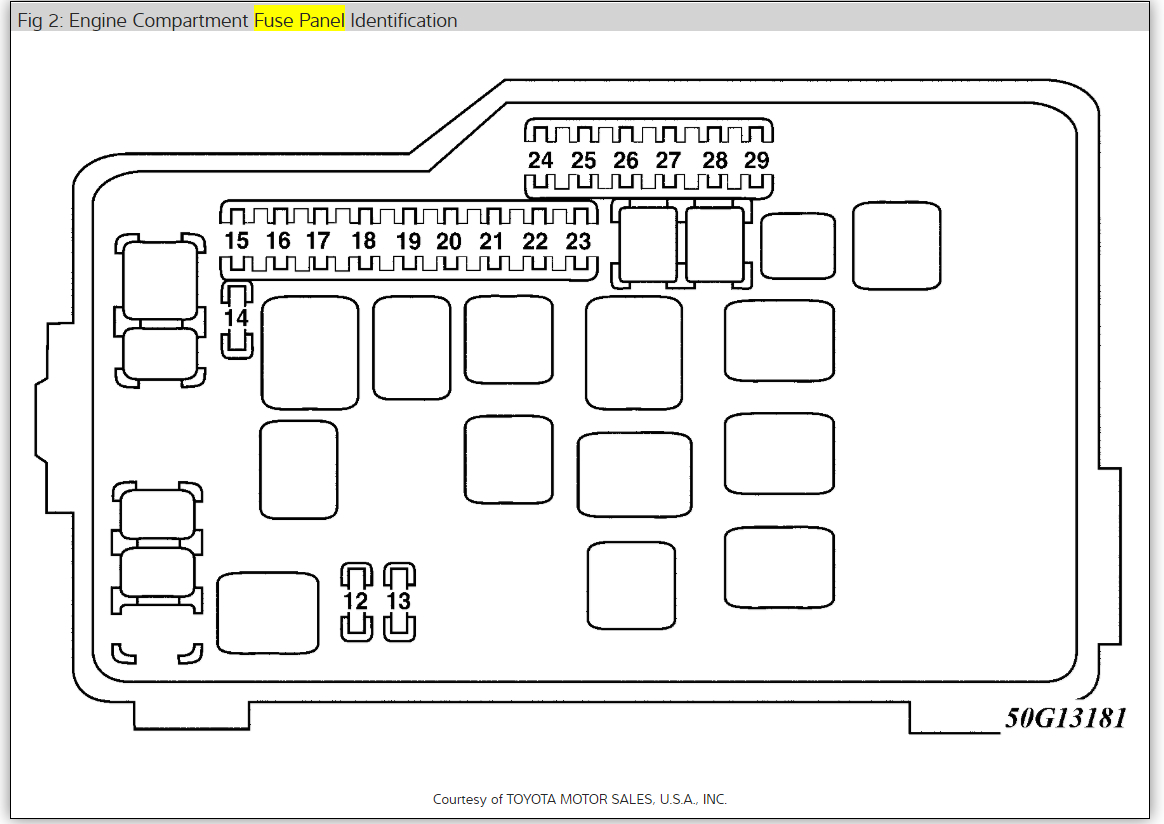

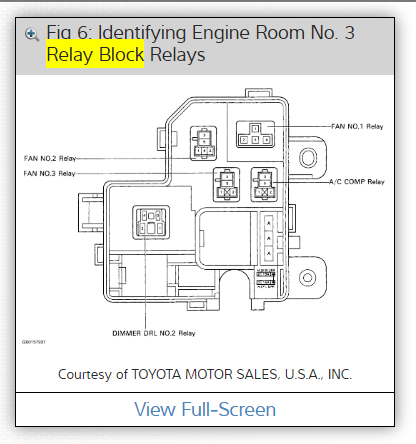

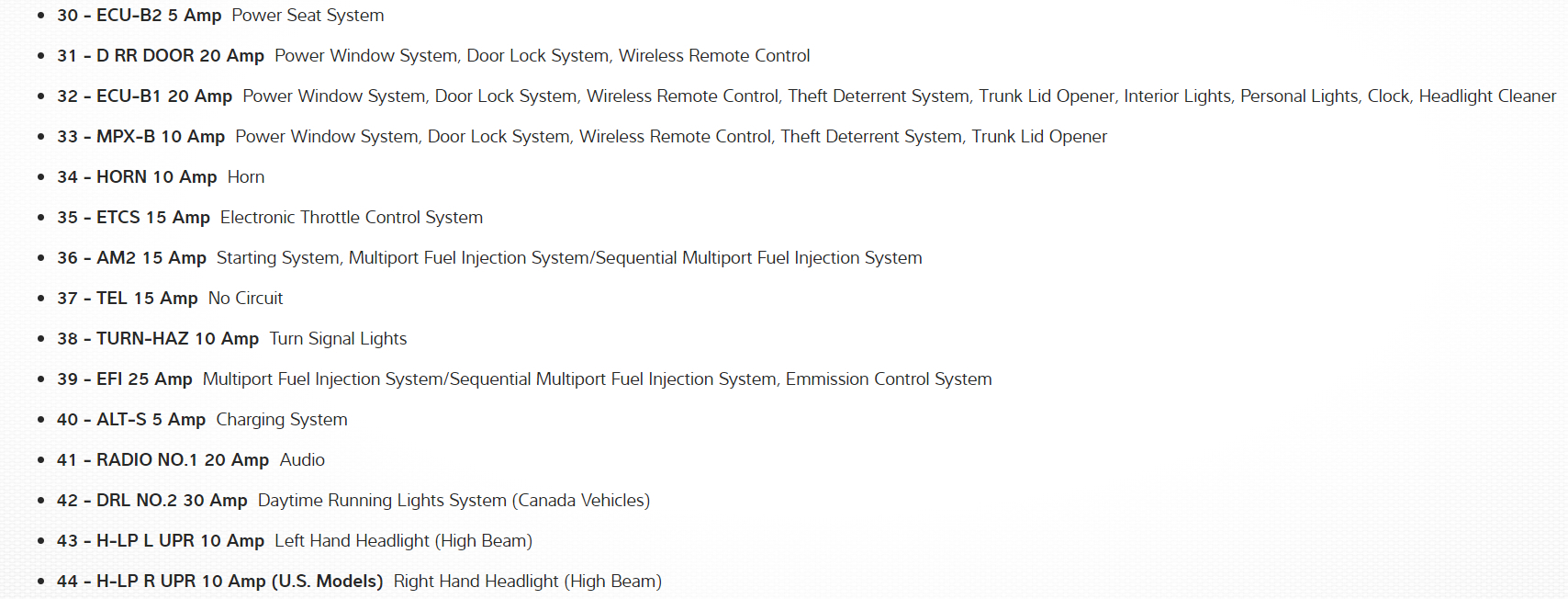

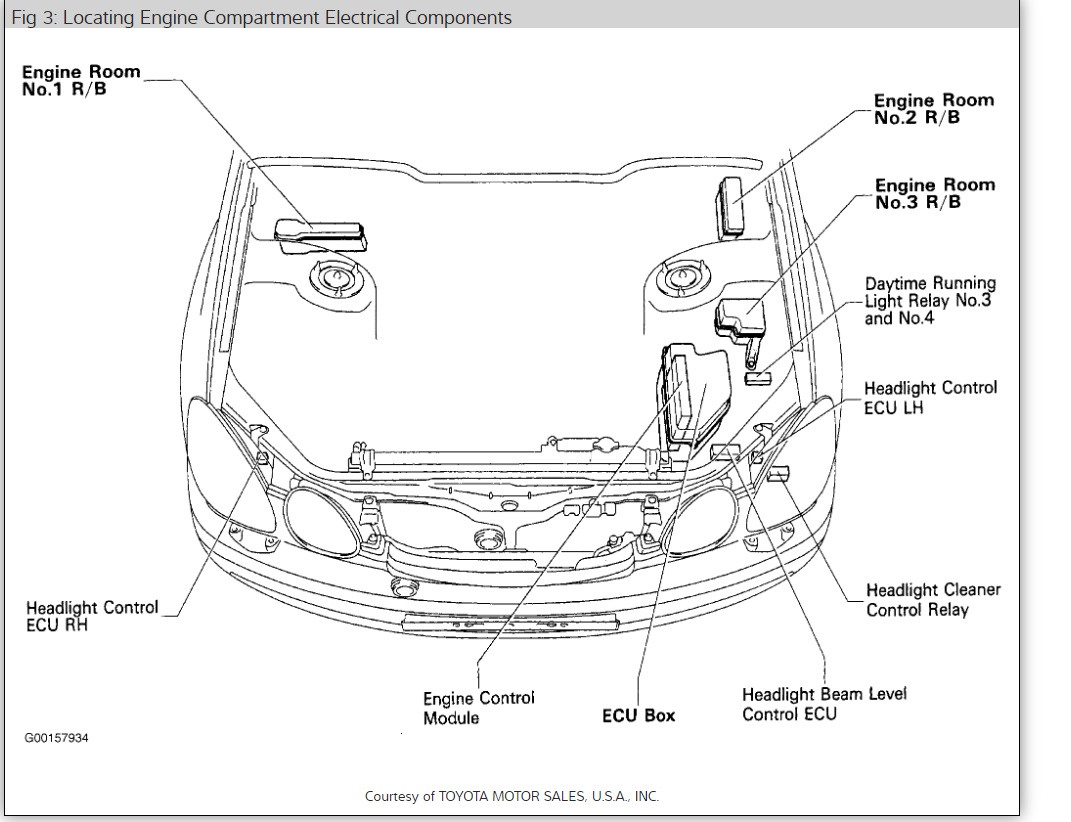

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Here is a guide on how to check the fuses and all of the fuse panel locations and descriptions and relay locations as well.
https://www.2carpros.com/articles/how-to-check-a-car-fuse
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Jun 13, 2011 at 1:01 PM
