1998 Honda Civic 98 honda civic evaporator core

1998 HONDA CIVIC
Avatar
HBAYLIS8787
  • MEMBER
  • 1 POST
How do you change the evaporator core on a 98 Honda civic ex 5 speed stick shift?? we have already changed the condenser and know it is the evaporator core. Not sure why I have to have 200 minimum to ask a simple question so I may just ramble to get it there. I mean it is a simple basic question
Jul 20, 2013 at 10:52 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
We need as much information as possible to understand questions before we are able to reply correctly and 200 characters to describe the probem is not really that much.

If you describe your intention and problem in detail, we would be able to reply correctly without having to ask for more information.

Removal

Remove battery.
Discharge A/C system, using approved refrigerant recovery/recycling equipment.
Disconnect refrigerant lines from evaporator core at engine compartment firewall.
Cap hose ends to keep moisture out of system.
Remove glove box and glove box frame.
Disconnect A/C thermostat connector.
Remove 4 screws, one bolt and one nut from evaporator unit and remove evaporator unit.

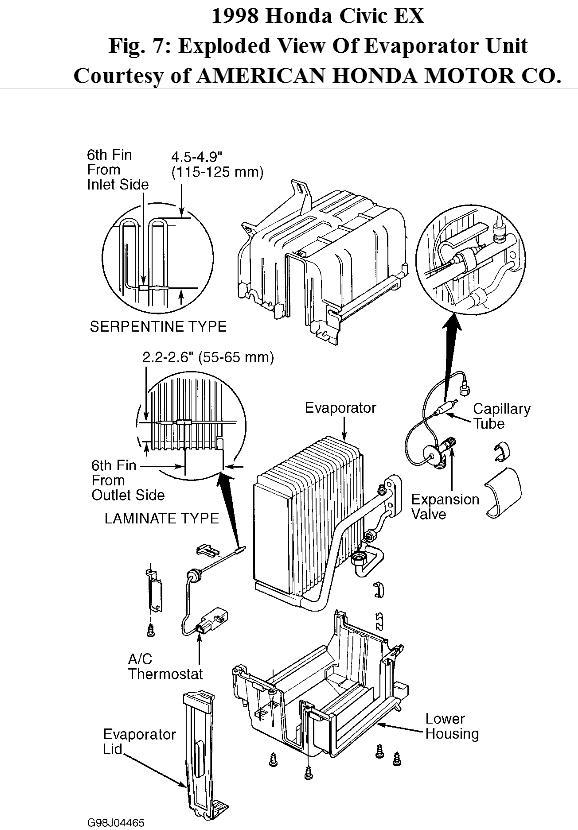

Image (Click to enlarge)
Attached Media
Jul 21, 2013 at 2:06 AM
