1998 GMC SAVANA
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
When turning ignition key on, dash lights, head lights come on but starter will not engage....there is no sound( no click from selenoid).. Bcaa emergency technician "jumped starter ",van started. When shut off..would not start again...same problem
Nov 6, 2012 at 6:23 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

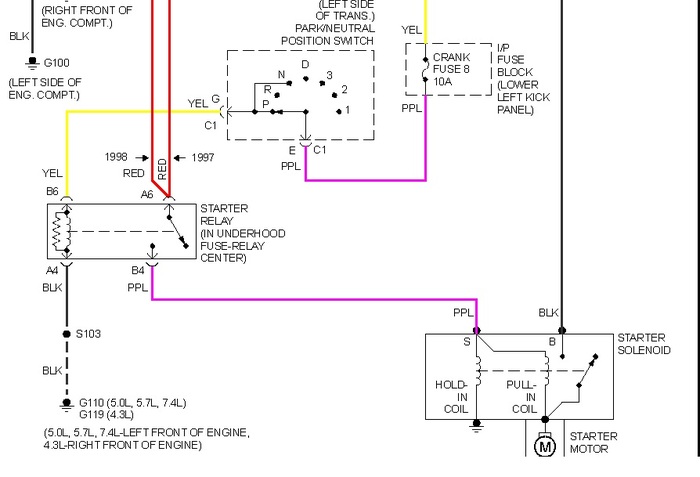

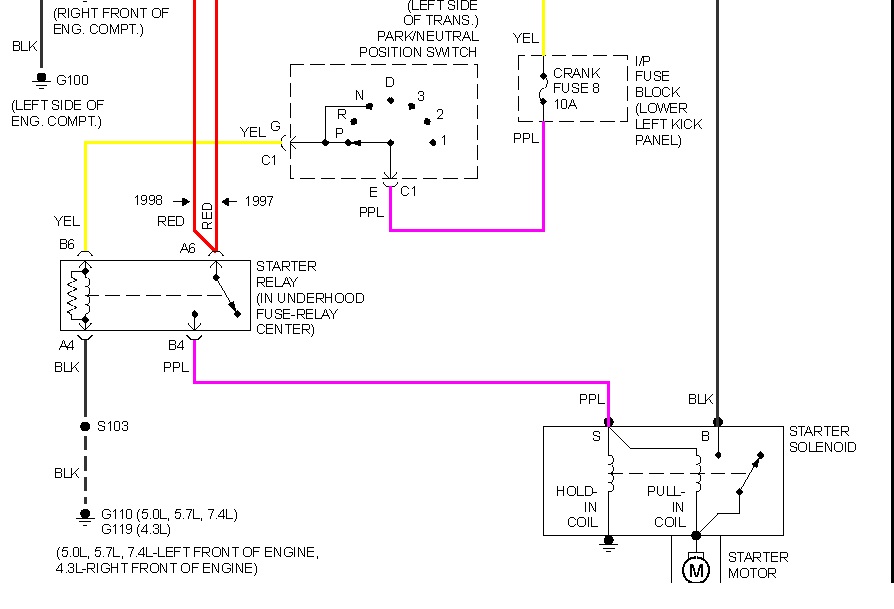

I looked at G1500 savana, 4.3L. Might be problem with neutral switch/tranny range switch? Note the diagram below. Check for voltage at the fuses.
Image (Click to enlarge)
Attached Media
Nov 6, 2012 at 6:33 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

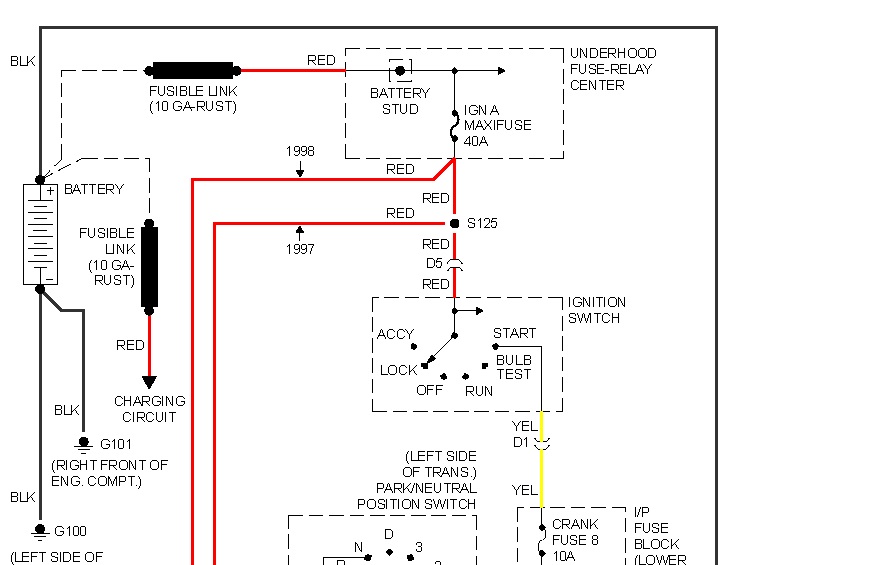

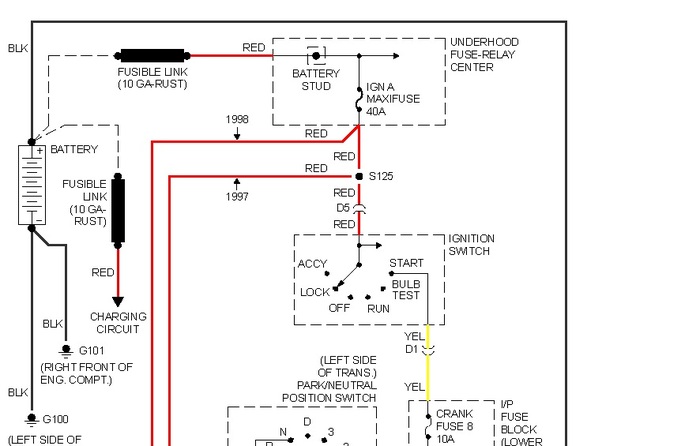

Here is the second part.
Image (Click to enlarge)
Attached Media
Nov 6, 2012 at 6:34 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Just wanted to add, any starter testing, make sure tranny is in park or neutral and e-brake is set.
Nov 6, 2012 at 6:35 PM
