Odometer quit working?

1998 FORD F-350
43,500 MILES • 2WD • MANUAL
Avatar
JTSZ3
  • MEMBER
  • 1 POST
Odometer quit working
Dec 26, 2010 at 12:05 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

If the only issue is an inoperative odometer, it is likely a worn/broken gear for the odometer inside the gauge cluster.
Those gears tend to wear off overtime and can even brake due to the plastic quality.

In order to fix this issue, you will have to remove the gauge cluster and open the back of the cluster to access the odometer gears.

There are repair kits that is available for these. Typically costs around $20.00.

You might find this video helpful:

https://youtu.be/_HEC44xENxw

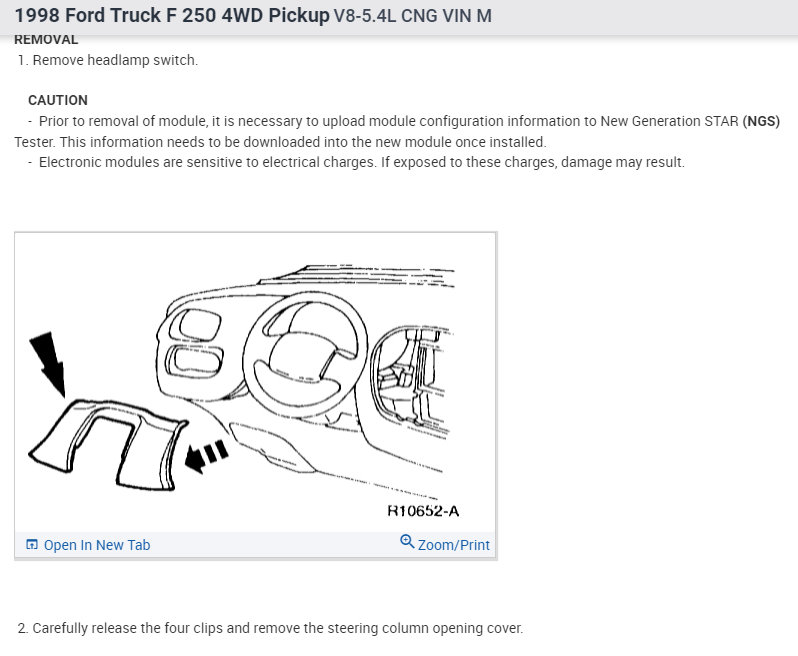

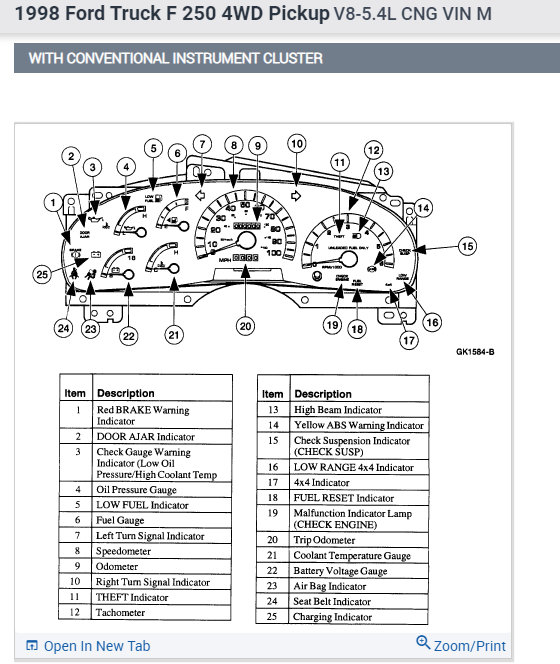

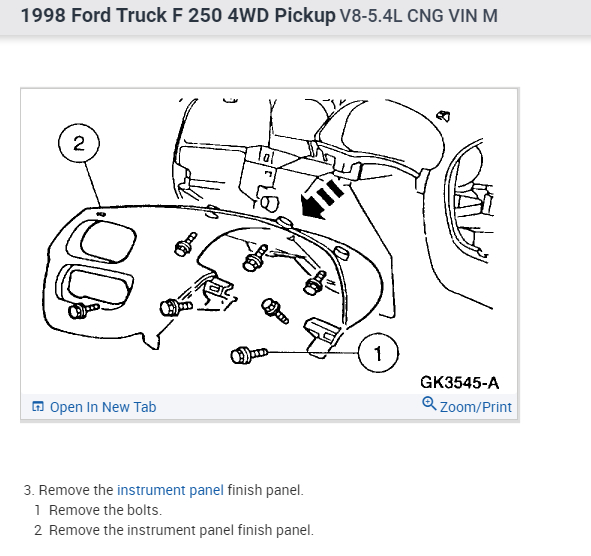

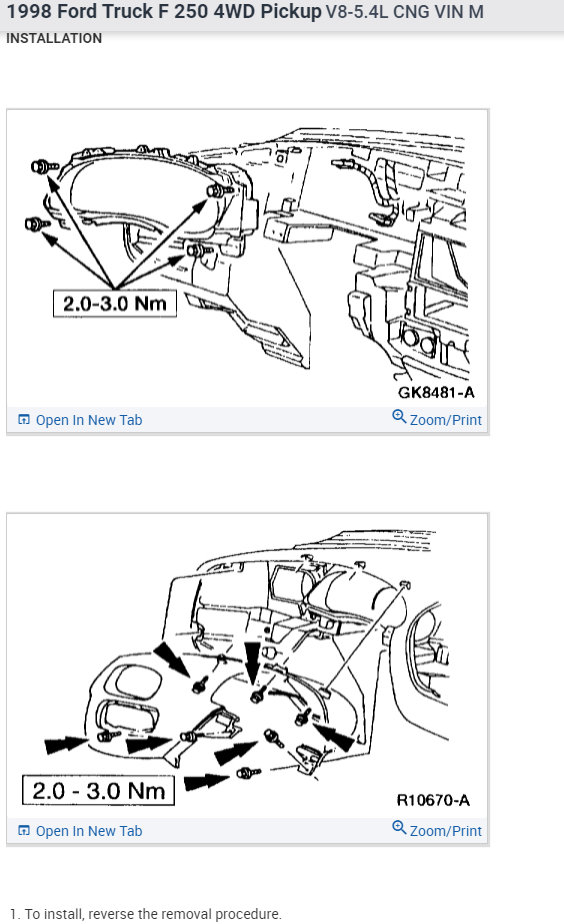

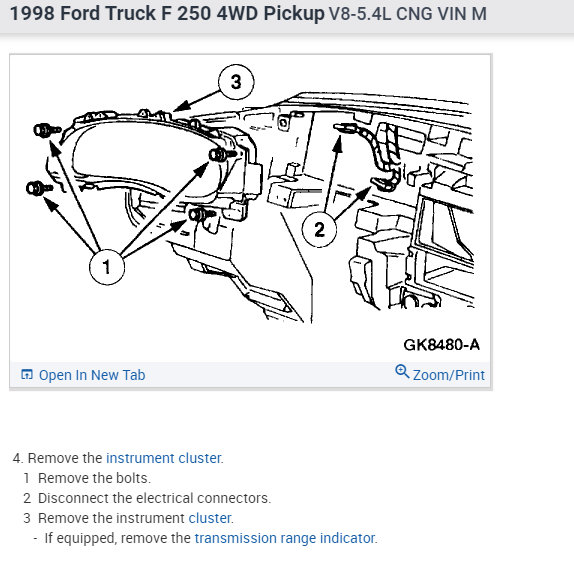

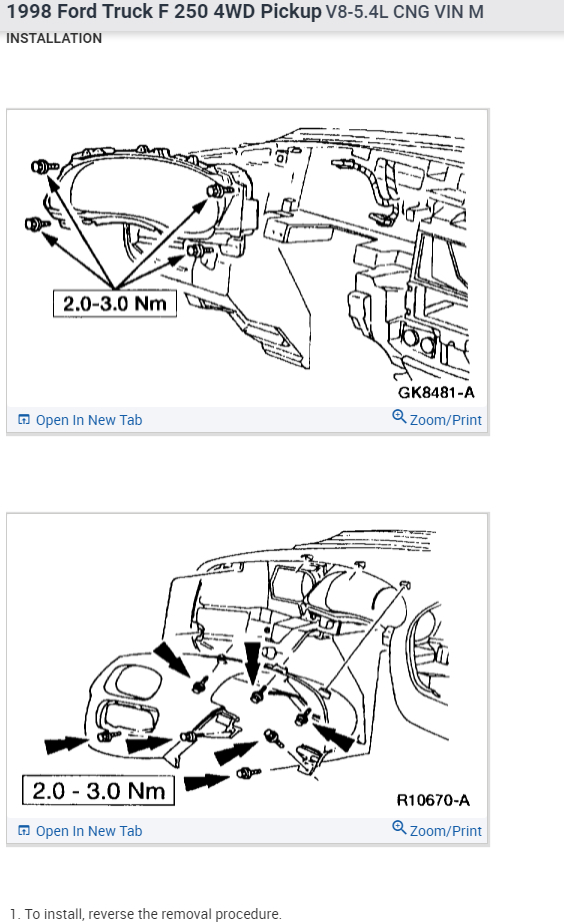

I have attached diagrams for your reference.

Please let me know if you have any questions.
Thank you.
Dec 3, 2021 at 11:08 PM
