Timing marks/ timing alignment

1998 FORD F-250
299,999 MILES
Avatar
BCMULLEN95
  • MEMBER
  • 249 POSTS
I am looking for a diagram that will show me the timing marks for my truck. I took it apart 6 months ago and am putting it back together.
Jul 6, 2012 at 9:58 PM
Advertisement
Avatar
BCMULLEN95
  • MEMBER
  • 249 POSTS
The truck is a 4.6 L 2wd. I am not sure which way the cam gears are supposed to be and am stuck at the moment. The crank is at TDC.
Jul 6, 2012 at 10:00 PM
Avatar
DRCRANKNWRENCH
  • CERTIFIED EXPERT
  • 3,380 POSTS

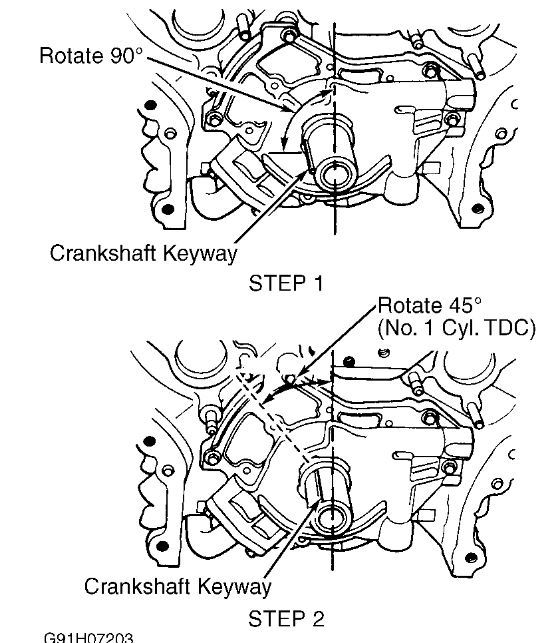

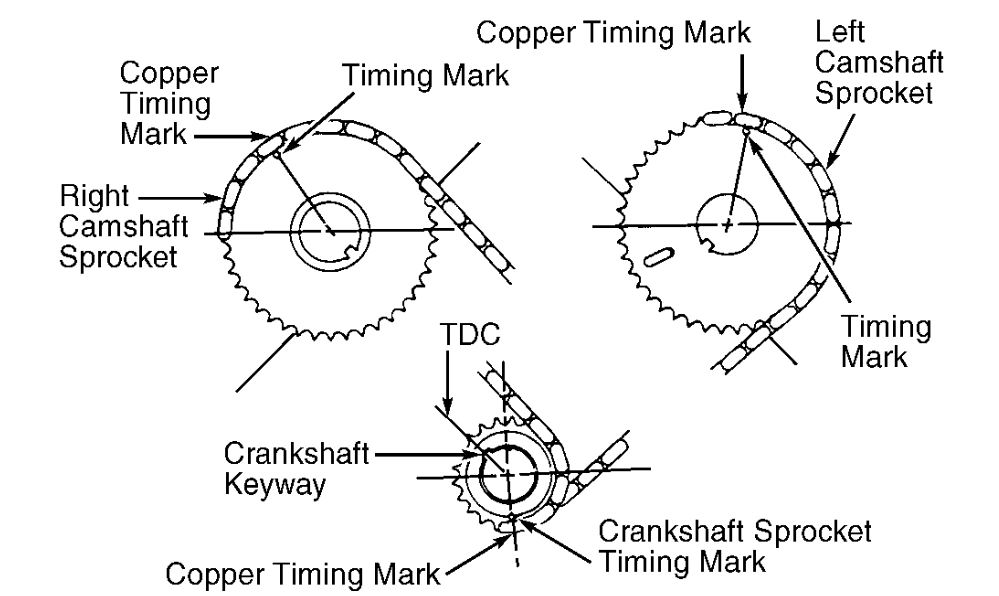

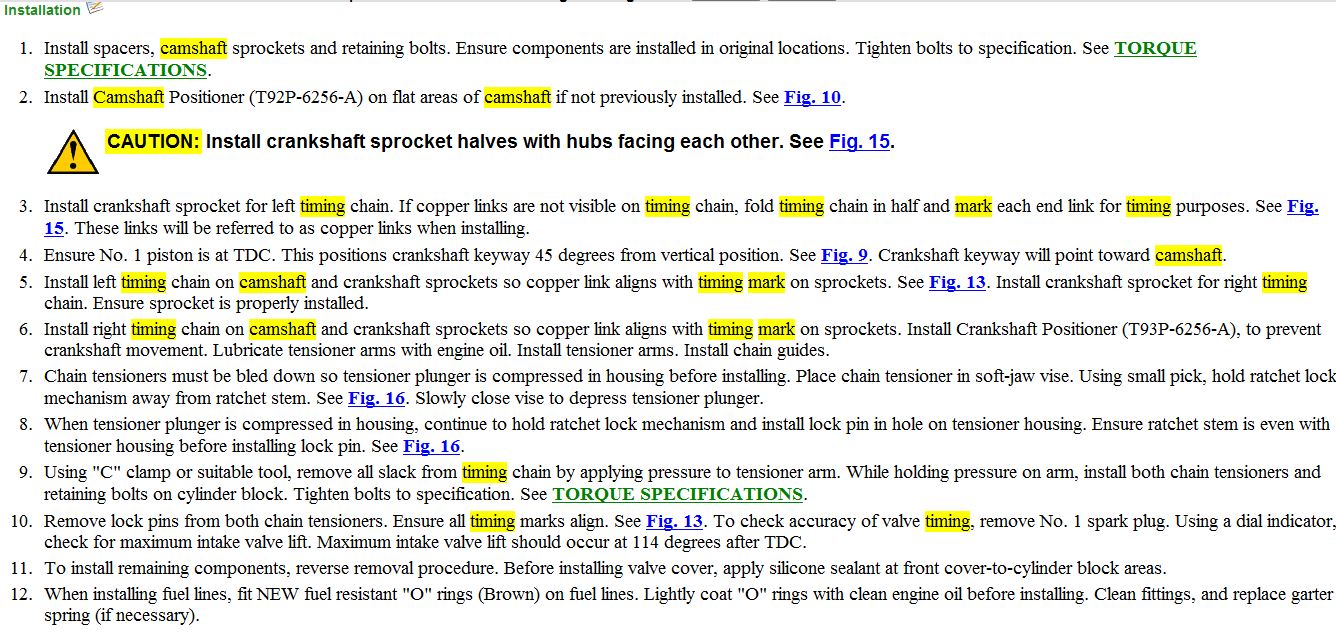

I am attaching the installation instructions for the timing chain and the FIGs you will need to align the camshafts.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jul 6, 2012 at 11:00 PM
