E brake

1998 FORD F-150
152,000 MILES • 6 CYL • 2WD • MANUAL
Avatar
[email protected]
  • MEMBER
  • 2 POSTS
How do I back off the E brake Cable on my 1998 F150? I have installed a new one on the passenger side and it is really tight now it drags?
Nov 28, 2010 at 2:52 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
It sounds like you need to check the ebrake shoe adjustment. Its hard to tell if there is an adjust and these diagrams you are doing to need to check it out and go from there.

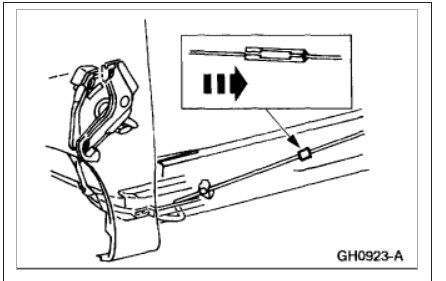

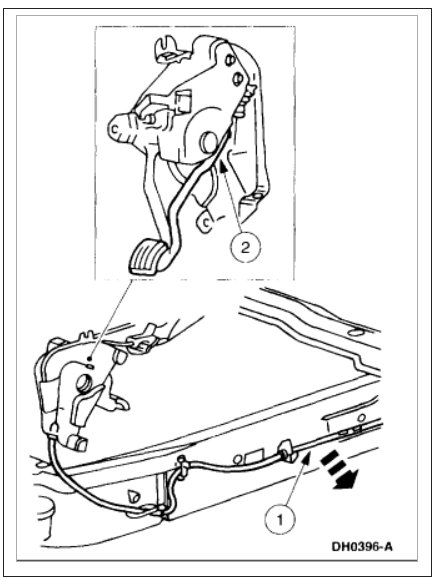

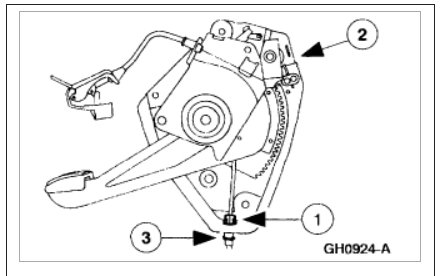

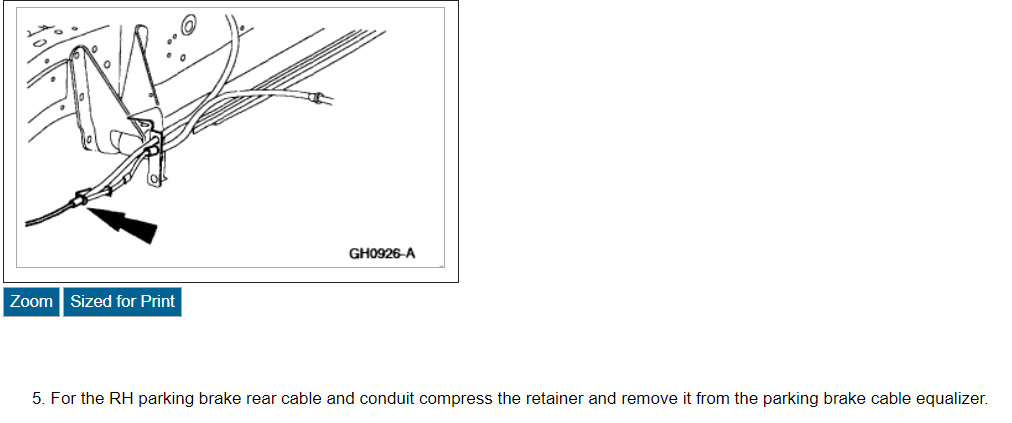

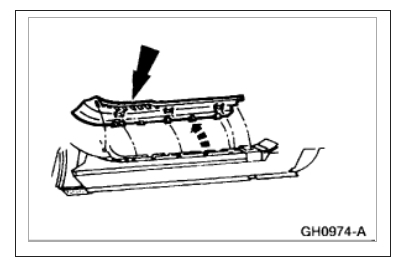

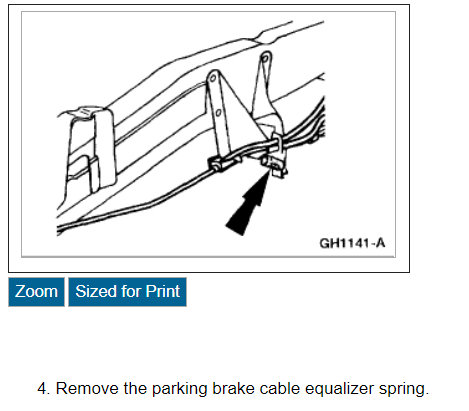

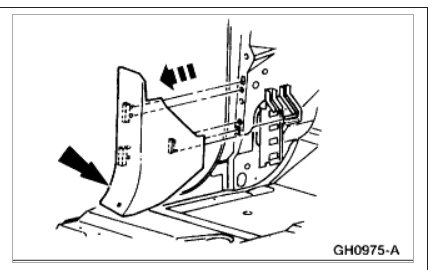

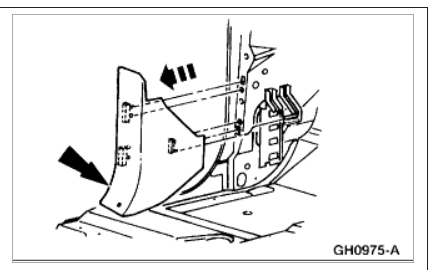

Check out the diagrams (Below)

Please let us know what happens.

Cheers,
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Mar 10, 2021 at 11:44 AM
Avatar
[email protected]
  • MEMBER
  • 2 POSTS
1998 ford f-150 2x4 does not have disk brakes on rear. the adjustment was at the pedal.
Mar 10, 2021 at 11:44 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Use 2CarPros anytime, we are here to help. Please tell a friend.

Cheers
Mar 10, 2021 at 11:44 AM
