Wiring diagram for 1998 Ford E350 transit bus.

1998 FORD E-SERIES VAN
12,600 MILES
Avatar
KSTAILGATER
  • MEMBER
  • 1 POST
Looking to identify wires behind dash (radio), and those connected to switch panel on engine cover. The passenger compartment was built by "Goshen Coach".
Feb 27, 2012 at 8:47 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

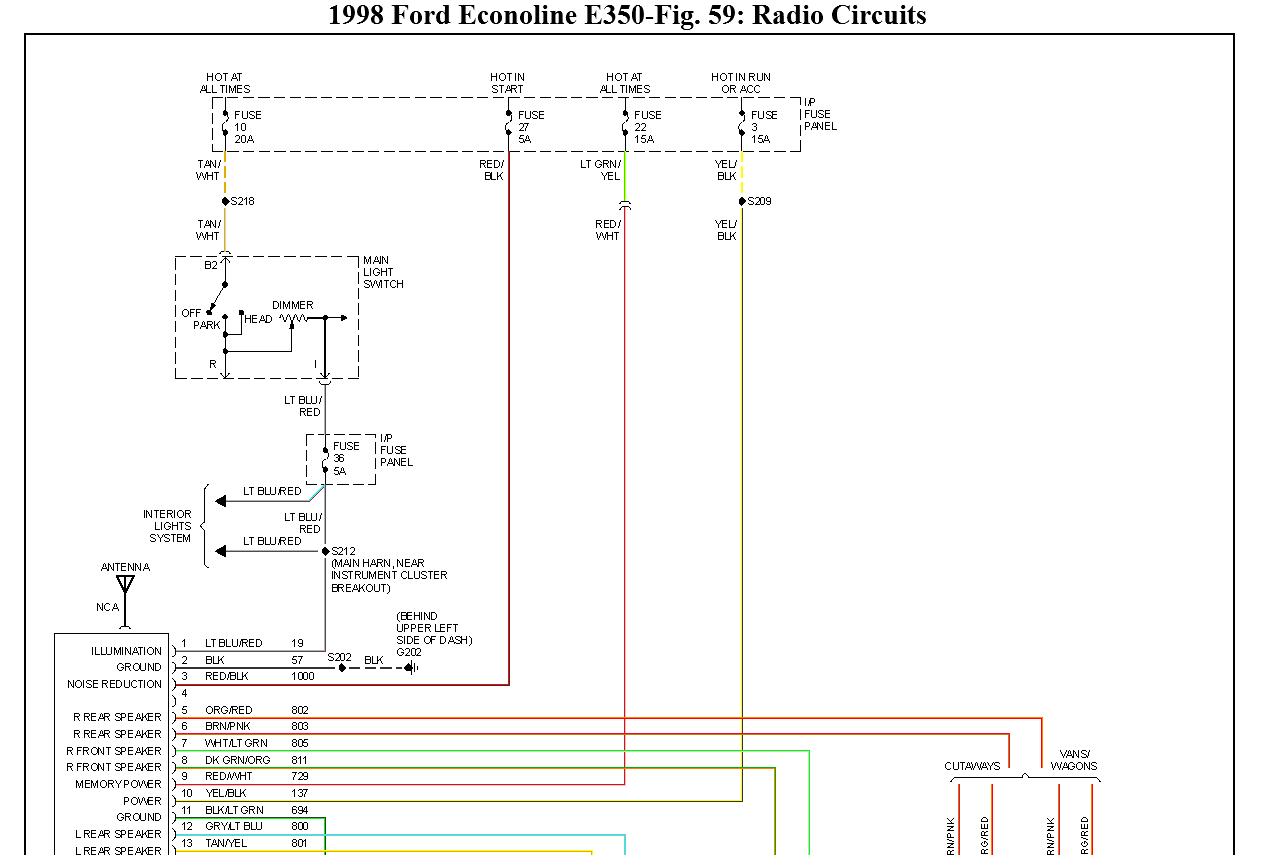

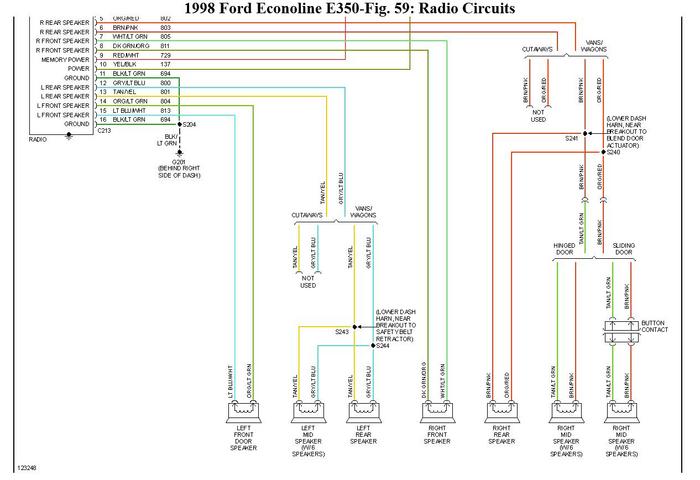

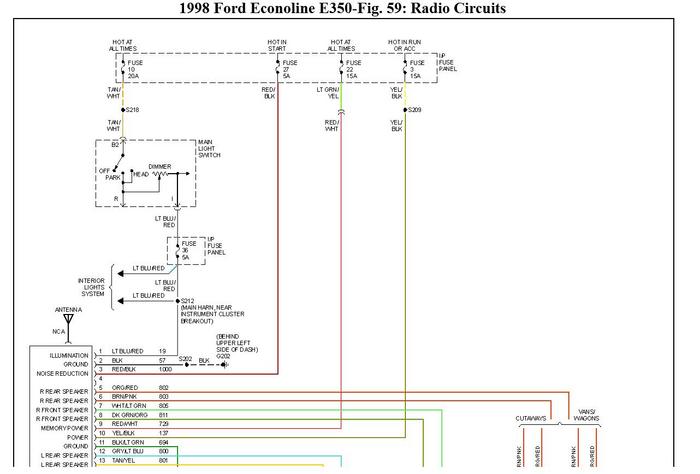

Attached are schematics of the radio circuit. As to the one on engine cover, I do not know what your are referring to so I am not able to include it.

Wiring for the vehicle is rather vast and you need to be component specific to be able to get the correct wiring schematic.
Images (Click to enlarge)
Attached Media
Attached Media
Feb 27, 2012 at 1:37 PM
