I have a check engine light and code p0500. I replaced the speed sensor in the transmission and still popping the code
Aug 26, 2015 at 6:30 PM
Advertisement
RIVERMIKERAT
CERTIFIED EXPERT
6,110 POSTS
Here is what we have for diagnostic steps. I would also check continuity on the wiring.
Aug 26, 2015 at 7:05 PM
CELTICWILD
MEMBER
10 POSTS
How do i check for the 5 ohm signal?
Aug 26, 2015 at 7:33 PM
Advertisement
CELTICWILD
MEMBER
10 POSTS
There was 6k of resistance on the wires
Aug 26, 2015 at 8:16 PM
RIVERMIKERAT
CERTIFIED EXPERT
6,110 POSTS
You need a volt-ohm meter. You can usually buy a decent one for less than 20 bucks.
Aug 27, 2015 at 6:21 AM
CELTICWILD
MEMBER
10 POSTS
I have one. I was getting a little over 6ohms. And I think that link u posted says then it's my computer. Could it be a speed sensor in my tire?
Aug 27, 2015 at 8:26 AM
RIVERMIKERAT
CERTIFIED EXPERT
6,110 POSTS
It could be a wheel speed sensor, but if the diagnostic procedure points to the ECM, that's probably what it is. Let me know if you want me to and I'll see what other info I can find a little later.
Aug 27, 2015 at 8:44 AM
CELTICWILD
MEMBER
10 POSTS
Yes please. That would be vary helpful. Thank you
Aug 27, 2015 at 8:50 AM
RIVERMIKERAT
CERTIFIED EXPERT
6,110 POSTS
Ok. Here's the full DTC diagnostic I've got for code P0500.

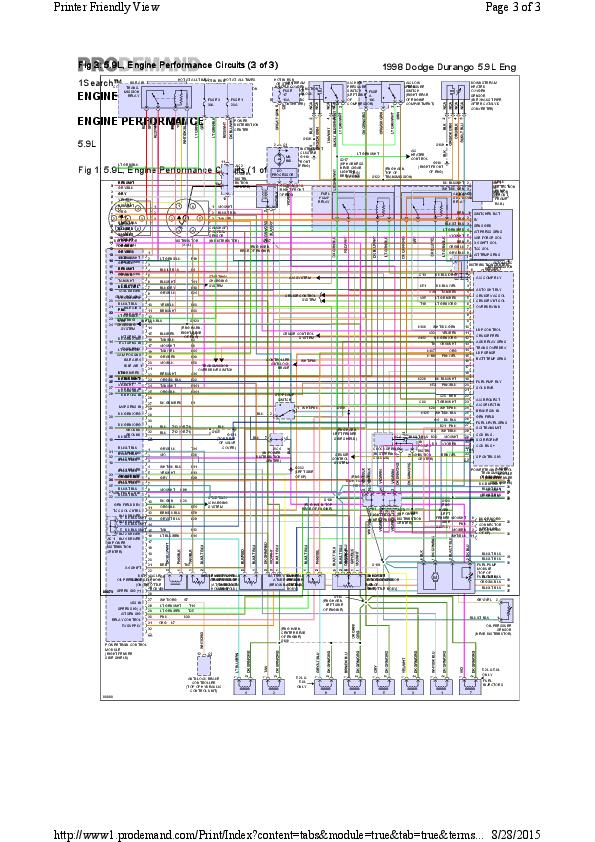

I used the Automatic transfer case option, not the full-time because I didn't know which one you've got. I'm not sure if it will make any difference. I've also attached all three pages of the engine performance schematics.
