I'm replacing the alternator on a 98 Dodge Grand Caravan. I've got the belt off and the alternator disconnected, but how do I get it out from behind the mounting bracket. On one side is the motor, the other side is a series of hoses and tubes I can't disconnect, and the mounting bracket divides the space.
Dec 17, 2010 at 1:08 AM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
I posted a diagram of which way it come's out here is what it say's about removing it.
REMOVAL

1. Release hood latch and open hood.

Removal/Installation Of Battery Cables


2. Disconnect battery negative cable.
3. Remove windshield wiper housing.
4. Remove accessory drive belt.

Generator Mounting Bracket


5. Remove bolt holding top of generator mount bracket to engine air intake plenum.
6. Remove bolts holding outside of generator mount bracket to generator mount plate.
7. Remove bolt holding top of generator to mount bracket.
8. Remove generator mount bracket from vehicle.
9. Rotate generator toward rear dash panel.

Wire Connectors


10. Disconnect the push-in field wire connector from back of generator.
11. Remove nut holding B+ wire terminal to back of generator.
12. Separate B+ terminal from generator.

Generator Pivot Bolt


13. Remove bolt holding bottom of generator to lower pivot bracket.

Generator


14. Remove generator from vehicle.

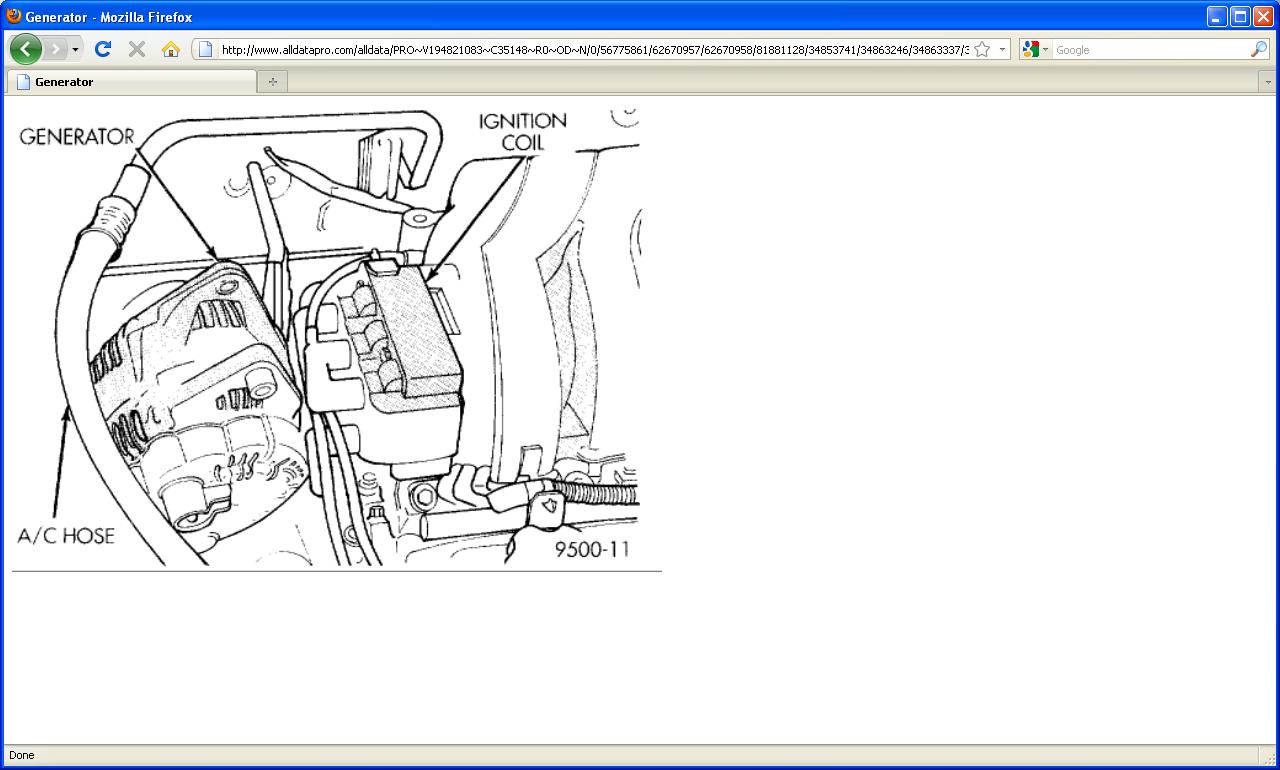

Image (Click to enlarge)
Attached Media
Dec 17, 2010 at 2:04 AM
