Where is the air blend door actuator located?

1998 CHEVROLET CAMARO
168,000 MILES • V6
Avatar
MIKECASH
  • MEMBER
  • 2 POSTS
Air blend door actuator location. Thanks!
May 29, 2023 at 4:07 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
All of the blend door actuators are vacuum controlled so if all of them are not working I would look for broken vacuum lines (small) under the hood that go from the engine to the fire wall.

Here is a guide that will help:

https://www.2carpros.com/articles/air-vents-stay-in-the-defrost-position

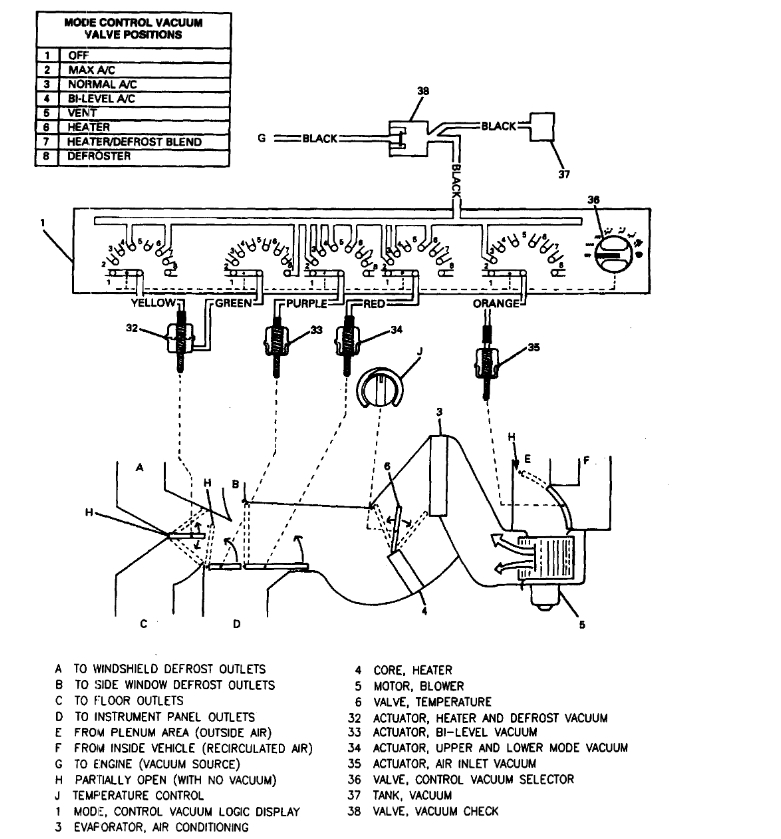

Check out the images (below). Let us know what happens and please upload pictures or videos of the problem so we can see what's going on.
May 30, 2023 at 5:34 PM
