I need to know what controls the dash lights that light up the radio and heater controls
Feb 22, 2015 at 5:27 PM
dashboard lights?
1998 CADILLAC STS
NANNETTE33
- MEMBER
- 1 POST
- FOLLOW
Advertisement
This is controlled by the instrument cluster integration control module located behind the dash near the radio.
INSTRUMENT PANEL INTEGRATION MODULE (IPM)
Center of the instrument panel, above the radio (part of the climate control panel)

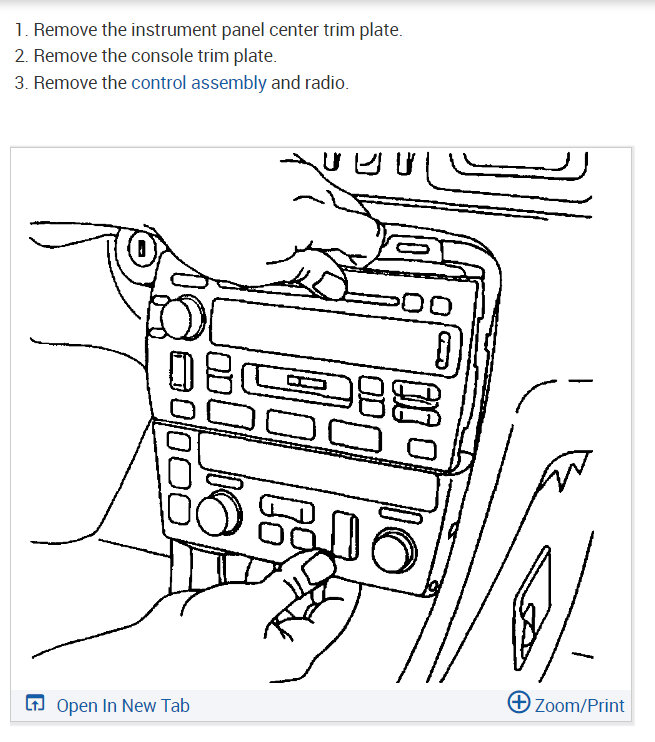

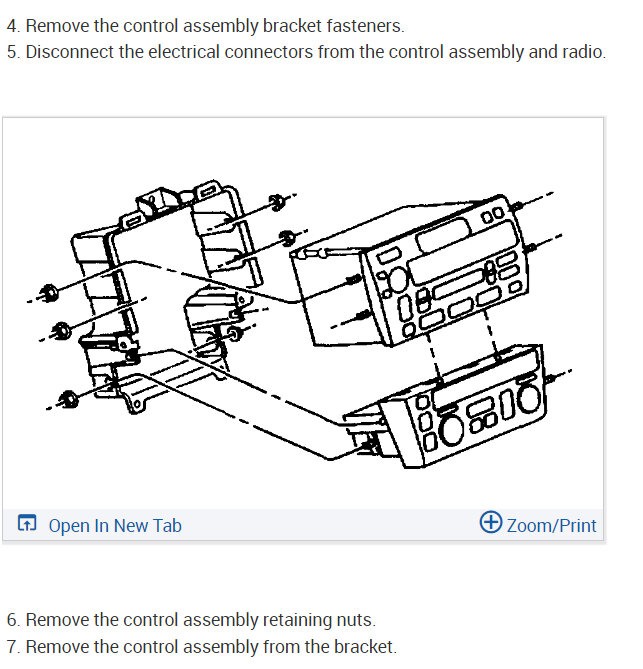

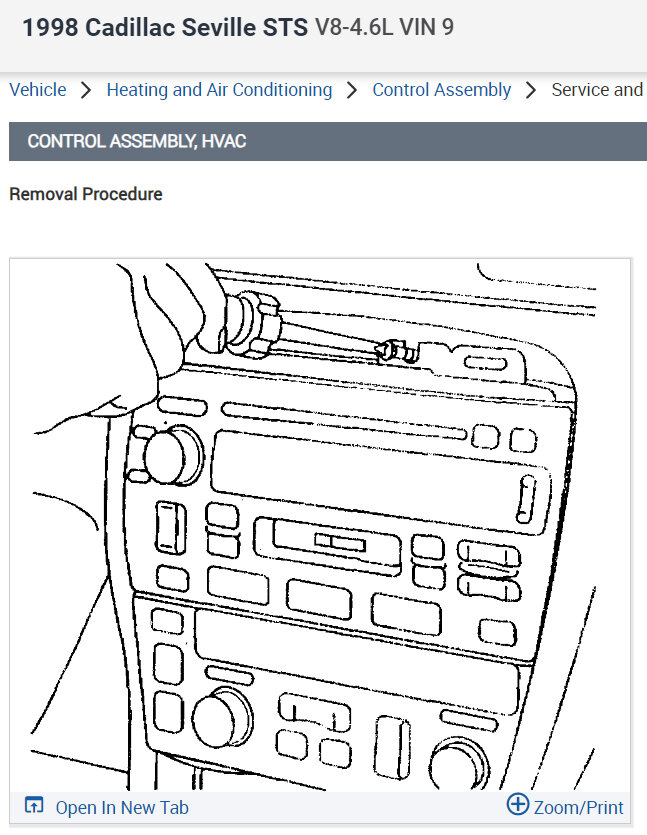

Check out the images (below). Let us know if you need anything else.
INSTRUMENT PANEL INTEGRATION MODULE (IPM)
Center of the instrument panel, above the radio (part of the climate control panel)
Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Feb 22, 2015 at 6:42 PM
