fuel pump location

Hello,

Here is a guide and diagrams to help you remove and replace the fuel pump which you can get from Amazon. Here is a guide to walk you through and diagrams below to show you on your car.


https://www.2carpros.com/articles/how-to-replace-an-electric-fuel-pump

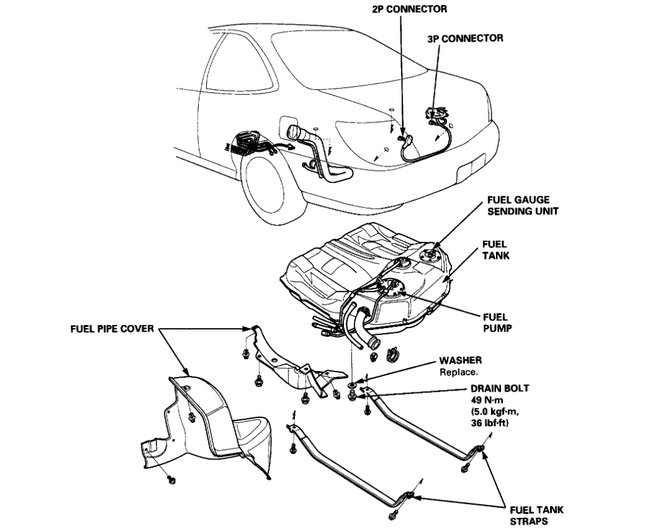

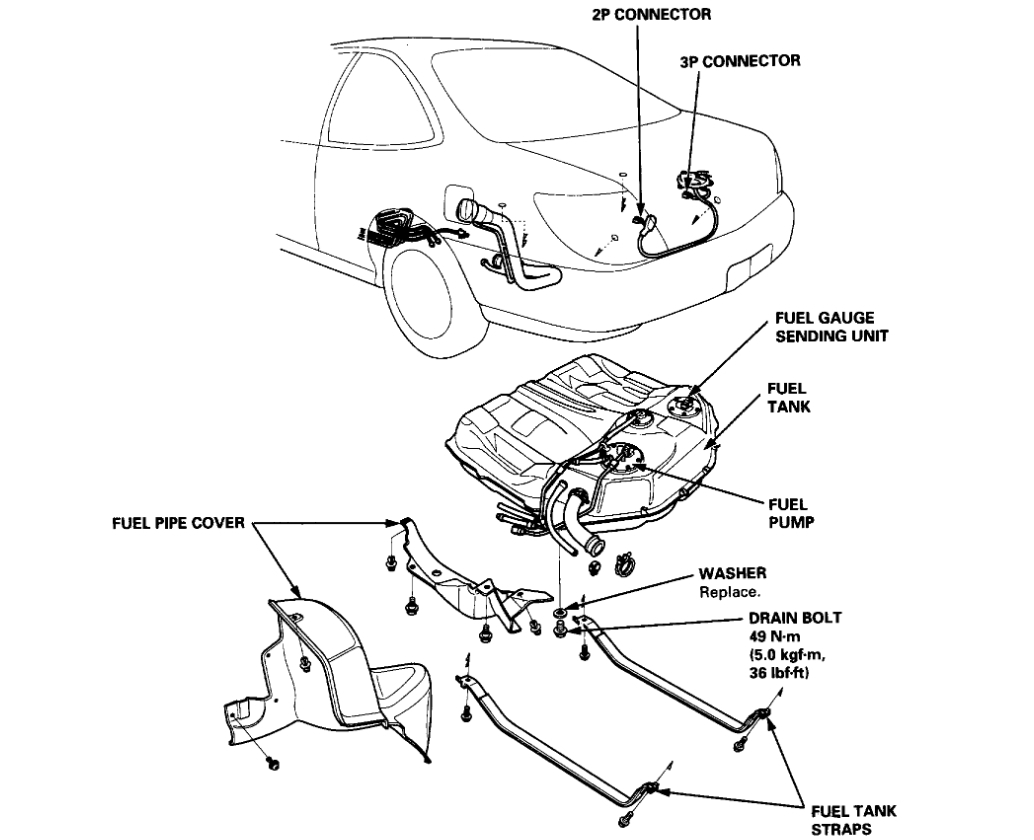

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers

There is a access panel in the trunk, remove the spare tire cover and you will see the access panel with 3 screws.

how do you access the fuel pump in the gas tank in a 1998 acura 3.0 cl, how do you replace it ?

Alldata says you have to remove the fuel tank to access the pump, drain the fuel first and the pump comes out the top.

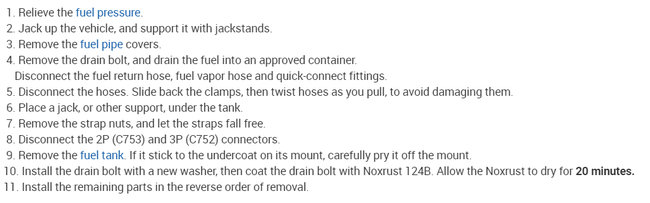

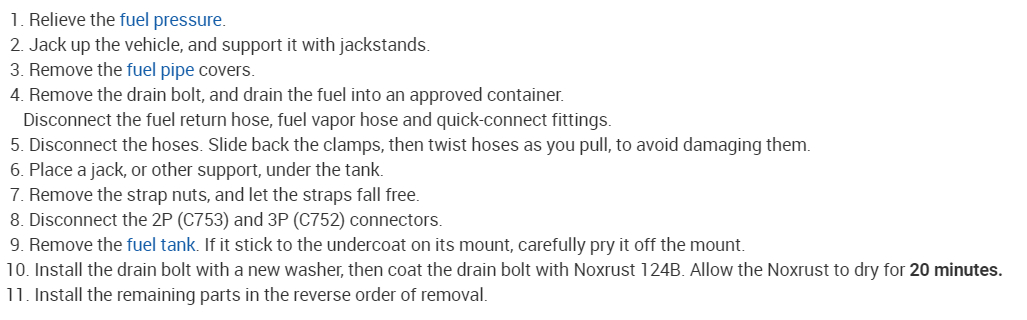

Removal & Installation (3.0CL)
Release fuel pressure.
Raise and support vehicle.
Remove heat shield.
Remove fuel tank drain bolt and empty fuel tank.
Disconnect lines.
Place a jack under tank.
Remove strap nuts, and allow straps to fall free.
Disconnect all electrical connectors.
Remove fuel tank.
If fuel tank sticks, carefully pry fuel tank off mount using a pry-bar.

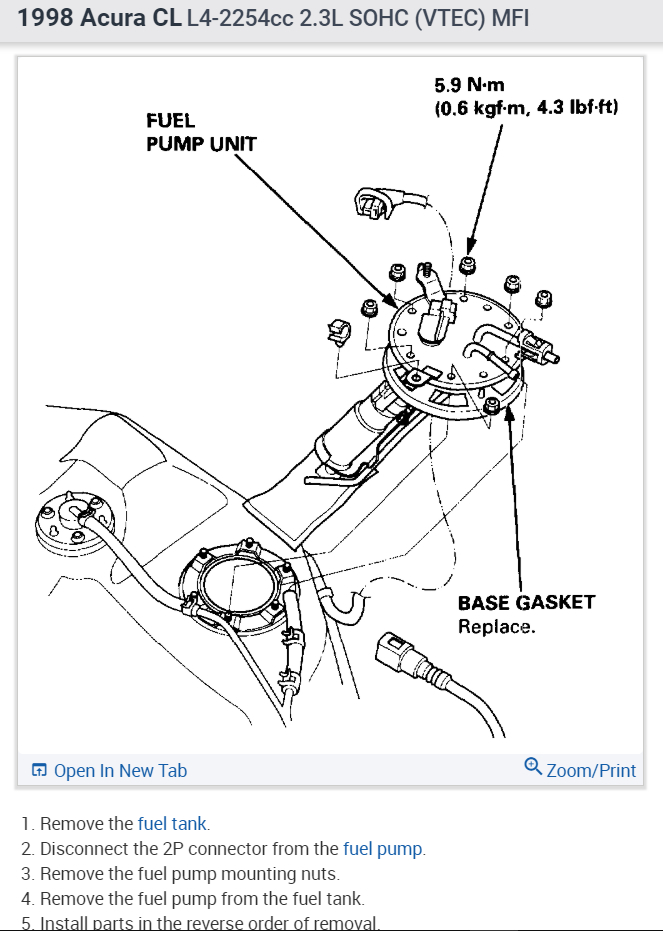

Remove fuel pump mounting nuts and fuel pump.

To install, reverse removal procedure.
Install drain bolt with NEW washer.
Coat drain bolt with rubber sealer (Noxrust 124B ).
Allow rubber sealer (Noxrust 124B ) to dry for 20 minutes.


© 2008 Mitchell Repair Information Co., LLC.

Trying to figure out how to gain access to the fuel I kno where it is jus tryin to see how to get the trunk liner out to start the process of removing the old none

It isn't in the trunk. On the CL, you have to remove the tank to access it.

Where is the fuel pump and how do I get to it. I cant take off the back seat and don't know how to get to the fuel pump. So how do you get to it and how do you replace the fuel pump. i already have the fuel pump already i just need to find it and replace it.

The pump is in the fuel tank. I believe on your vehicle, the fuel tank needs to be removed so you can access the pump through the top of the tank,

Fuel pump not working
No fire out of distributor

Check and test fuse no.5/no.2 -see below and also test the main relay
