1997 Toyota Tacoma front brake rotors

1997 TOYOTA TACOMA
195 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
JAPCRAP
  • MEMBER
  • 1 POST
Rotor assembly sticks to rotor even after the 5 bolts are removed (rotor and assembly are completely removed from the axle). Do I need to spray the assembly down with WD40 and pound it off with a hammer, or is there a better less primitive way.
May 15, 2014 at 10:14 AM
Advertisement
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS
Hi

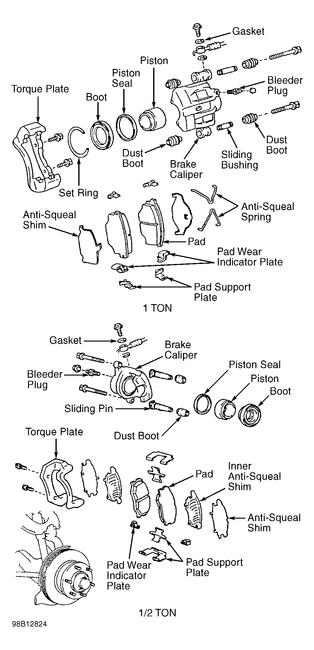

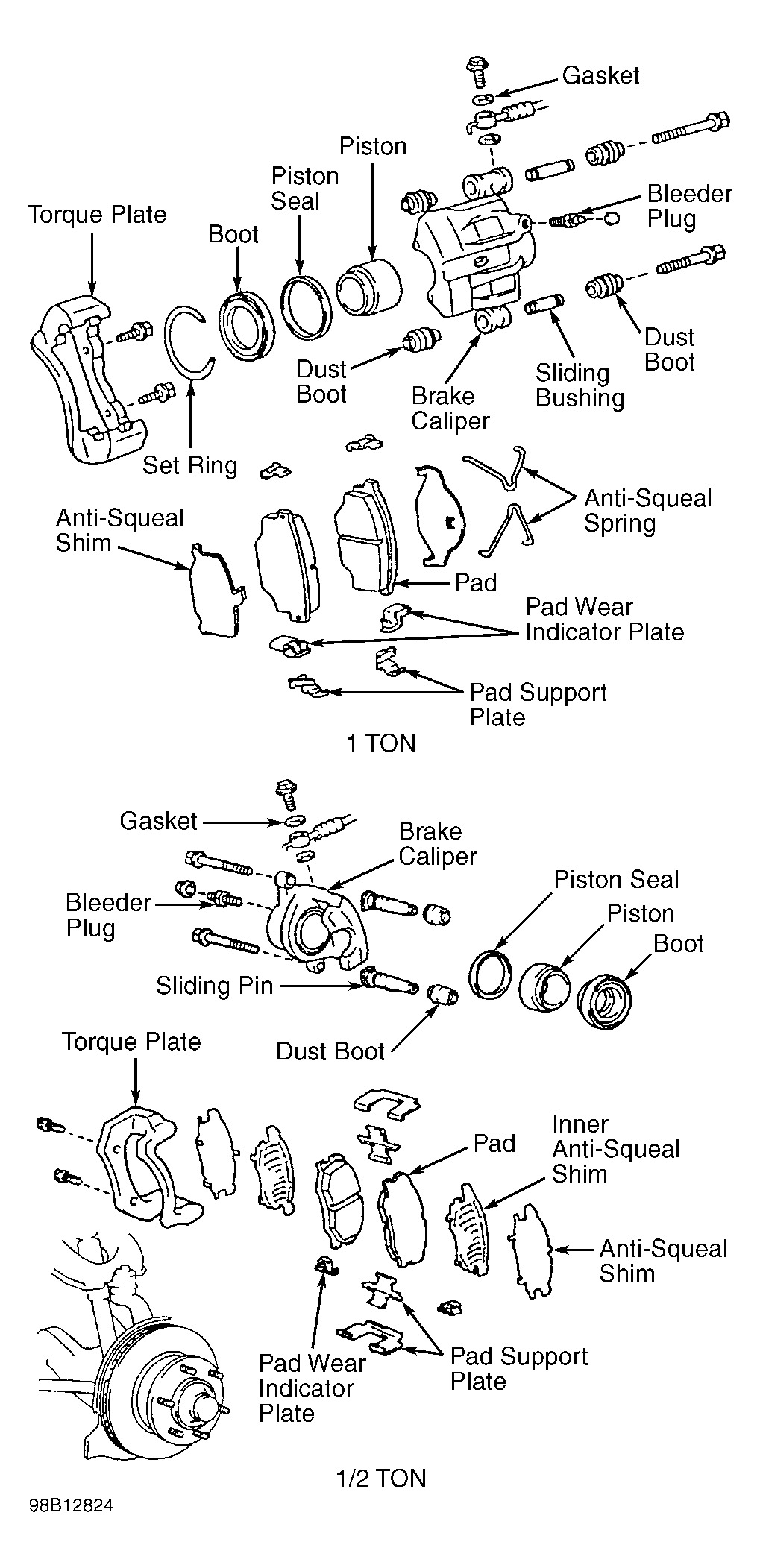

Caliper is held on spindle by two bolts coming in from rear ie. toward engine then it will slide off rotor. rotor stays mounted to spindle. Not sure what 5 bolts you removed see diagram maybe it will help
Image (Click to enlarge)
Attached Media
May 15, 2014 at 10:33 AM
