could not locate the fuse box position

1997 TOYOTA RAV4

95,000 MILES • 2.0L • 4 CYL • AWD • AUTOMATIC

JACOB G

MEMBER
1 POST
FOLLOW

Lower beam head lights and instrument penal lights not working,I shorted them when fixing lower side bulb connection. I looked but could not locate the fuse box position. Checked the bulbs seem OK Checked all the fuses located in the two boxes under the hood all OK. Is there another fuse box somewhere else for these lights?

Jan 17, 2014 at 6:33 AM

HMAC300

CERTIFIED EXPERT
48,601 POSTS

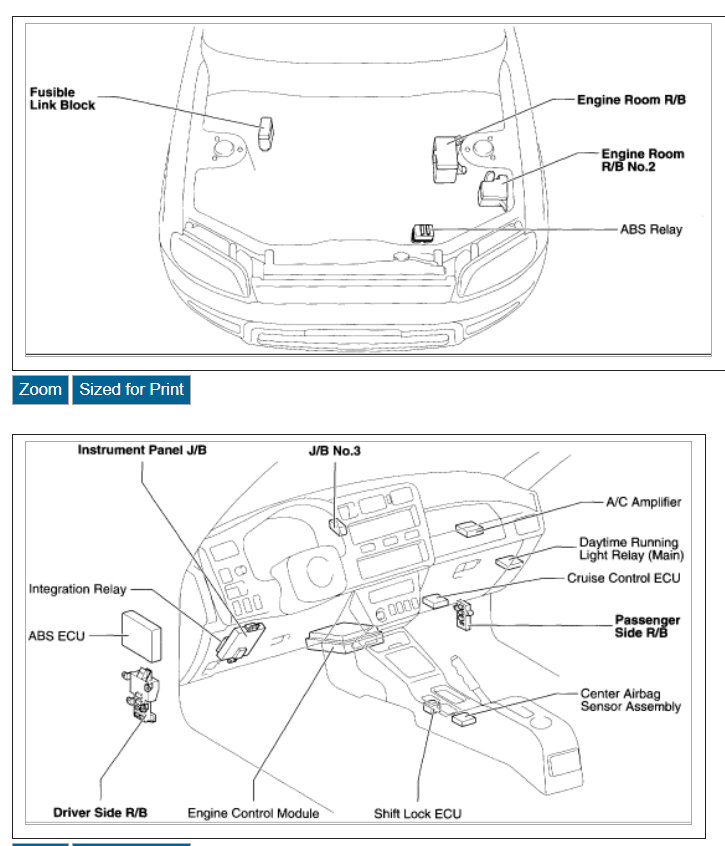

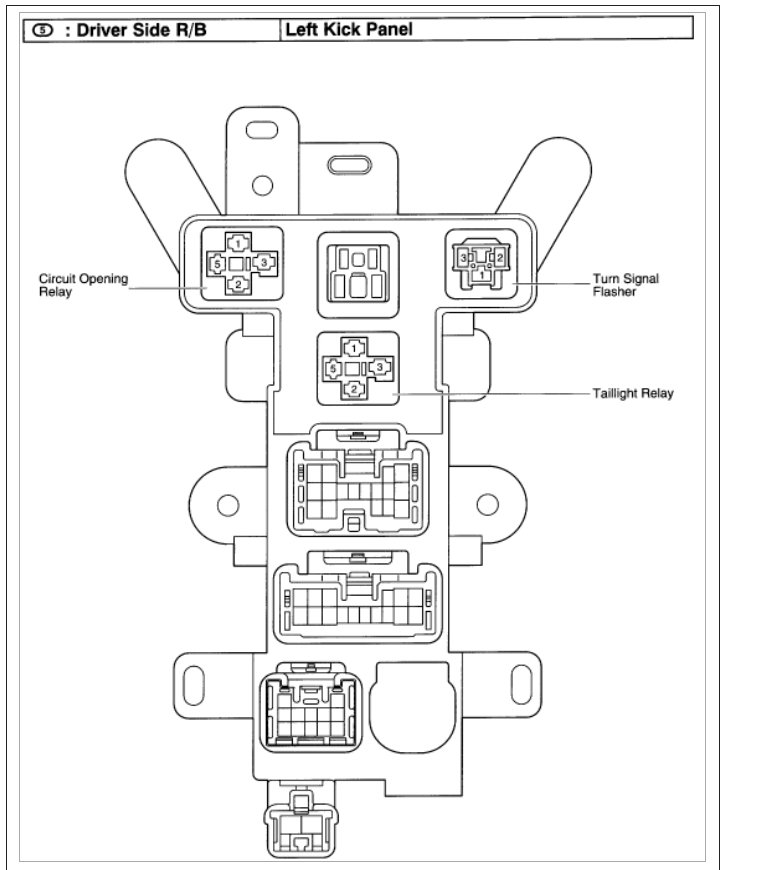

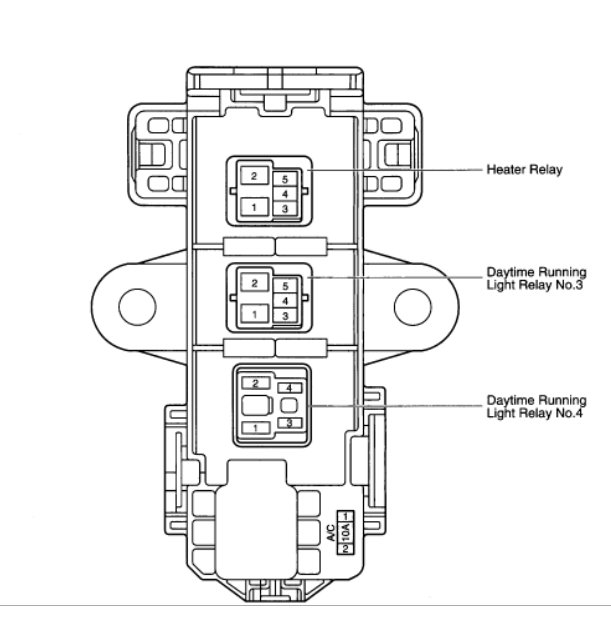

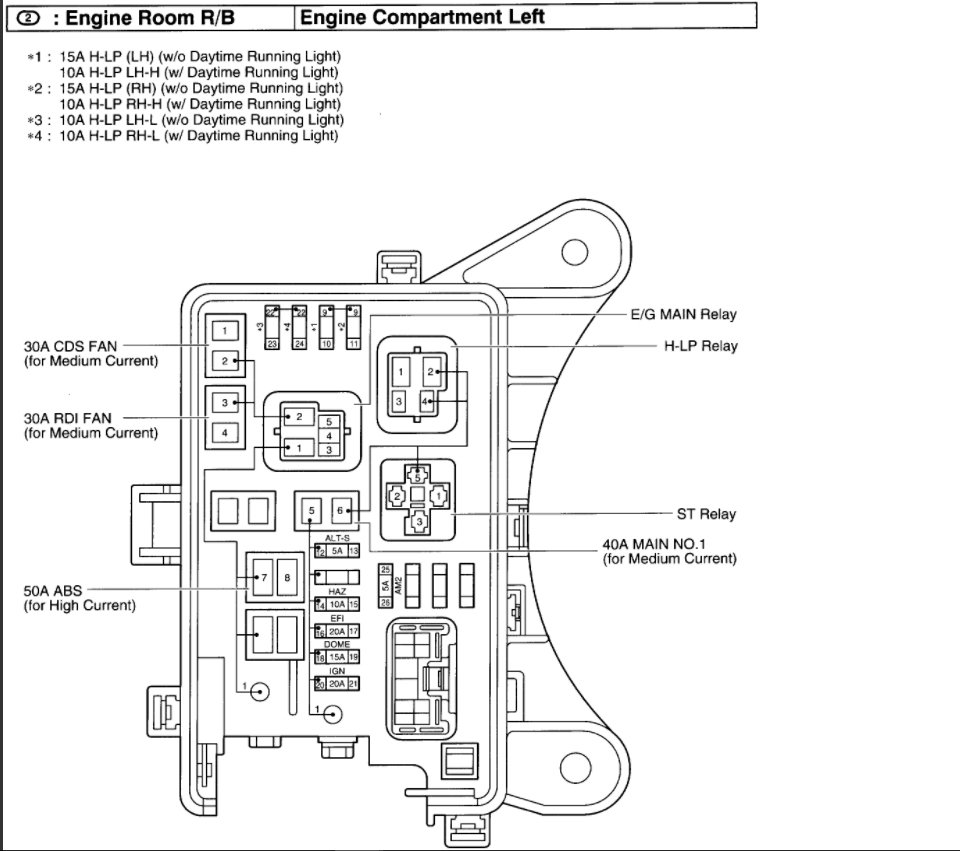

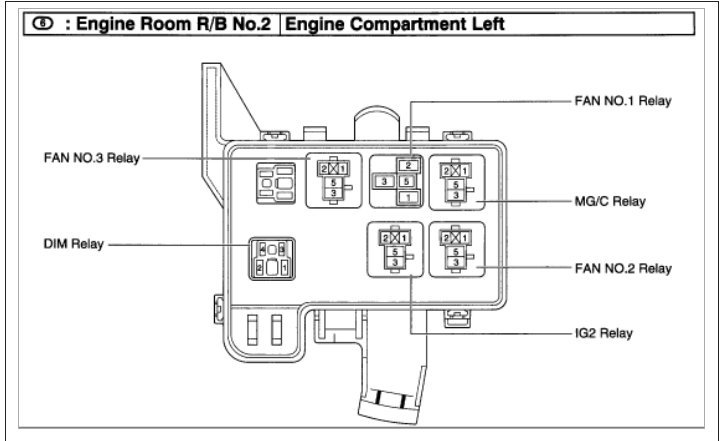

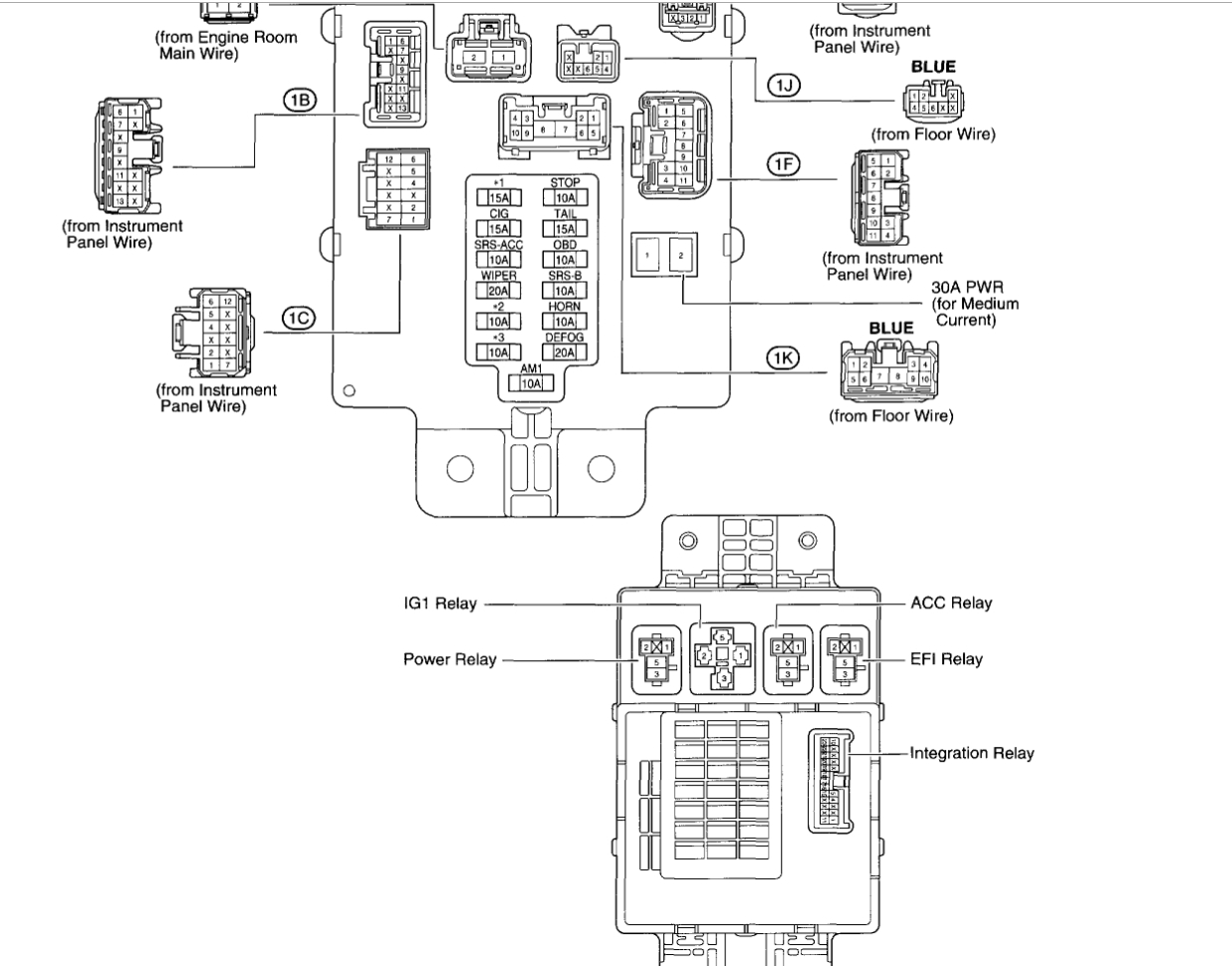

Here is the fuse panel location and identification along with the guide on how to check the fuses.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers

Images (Click to enlarge)

Jan 17, 2014 at 7:49 AM

LORI ANN2

MEMBER
3 POSTS

I have a similar problem but with my 1987 4runner it’s a 4 cylinder 5spd manual transmission (2.4L 22re). I have no high beams lows work fine as well as all blinkers, brakes ,marker they are good 99% of the time. once in a while I start my truck up and no blinkers so I found that.
If I jiggle the key just slightly the come back ? Also my instrument panel has no dash lights but I do have all hazard or warning light on dash what’s up anyone know ? And bigges ? We’re is the fuse panel how do I check them and we’re do they lead to under the dash? does

Dec 17, 2020 at 11:16 PM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

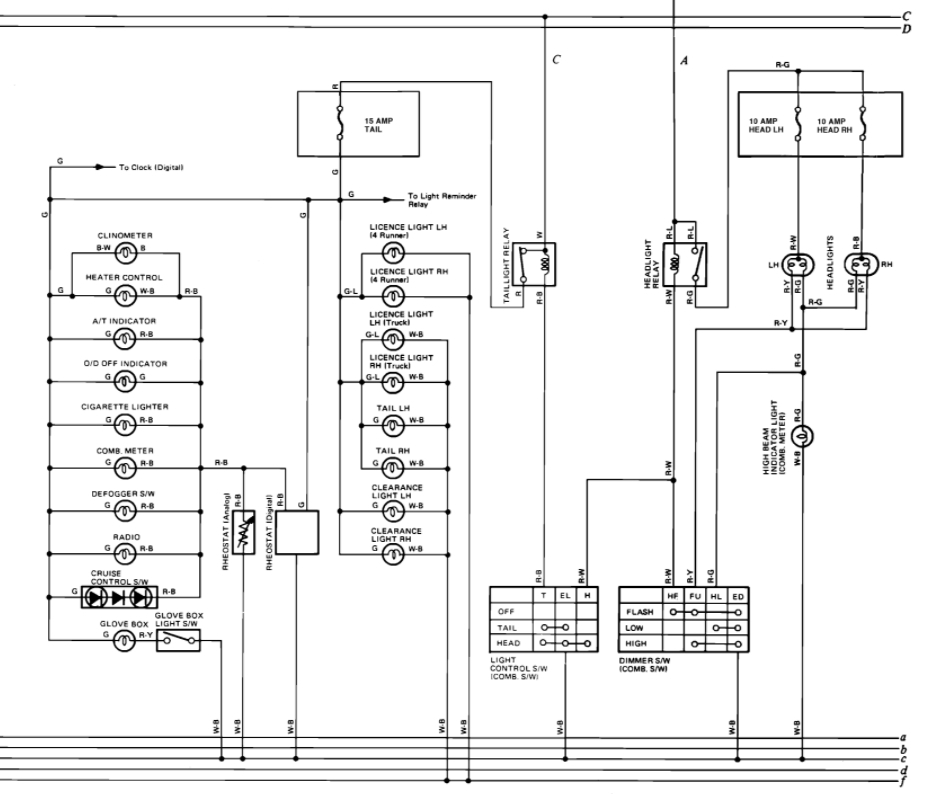

It sounds like the dimmer switch on the headlight control arm is bad but to be sure this guide will help us check for power at the feed wire (red and green) to the high beams using the wiring diagrams below.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

Check out the diagrams (below). Let us know what happens and please upload pictures or videos of the problem.

Image (Click to enlarge)

Dec 22, 2020 at 4:37 PM
