The dash light(s) behind the heat/air controls are out. How can you get to them to replace them?
Dec 14, 2012 at 6:21 PM
1997 TOYOTA RAV4
SBOGEN-1
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Removal & Installation

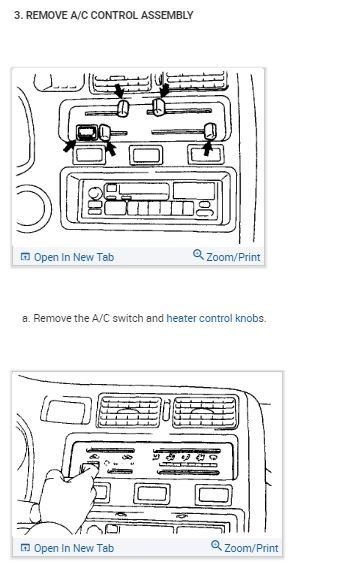

1. Remove heater control knobs. Remove 2 instrument cluster finish panel retaining screws near steering column. Using a screwdriver, remove heater control name plate. Carefully pry loose instrument cluster finish panel.

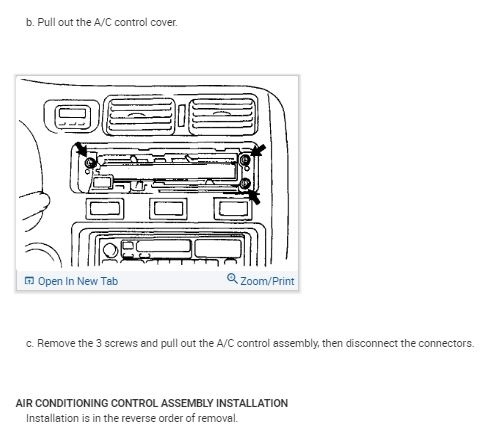

2. Remove 3 heater control assembly retaining screws. Pull instrument cluster finish panel outward far enough to disconnect wiring harness connectors.
3. Remove the bulbs
To install, reverse removal procedure.

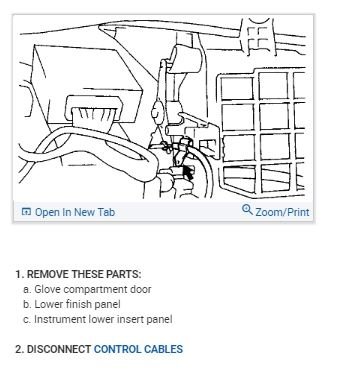

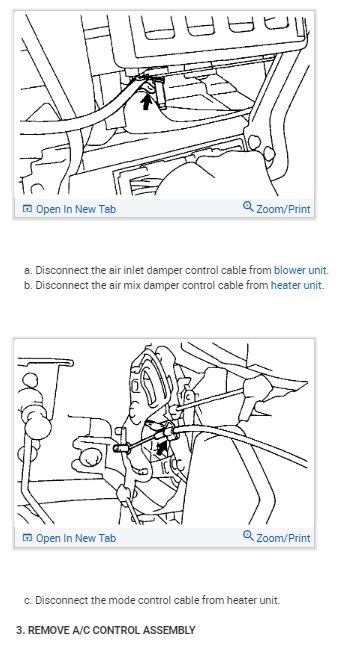

Attached below are some pictures of the process
1. Remove heater control knobs. Remove 2 instrument cluster finish panel retaining screws near steering column. Using a screwdriver, remove heater control name plate. Carefully pry loose instrument cluster finish panel.
2. Remove 3 heater control assembly retaining screws. Pull instrument cluster finish panel outward far enough to disconnect wiring harness connectors.
3. Remove the bulbs
To install, reverse removal procedure.
Attached below are some pictures of the process
Images (Click to enlarge)
