Headlights both high and low beams do not work

1997 TOYOTA LANDCRUISER
217,000 MILES
Avatar
JJF
  • MEMBER
  • 1 POST
Hi, I have got a 75 series six cylinder diesel. I have a problem with the lights, when I twist the knob near the steering wheel, the park lights work but the high/low beam does not. I have already checked the light units/fuses/relays and still cannot put my finger on it. Any thoughts on it? Any help would be greatly appreciated! And also the horn and hazard lights do not work.
Feb 10, 2013 at 4:00 AM
Advertisement
Avatar
MITCHY123
  • MEMBER
  • 1 POST
Hey, I know it has been five years, but I am having the same problem on the same model. Was wondering how or if you fixed the problem from a while ago? What was the problem?
Cheers, Mitch
Jul 13, 2018 at 3:15 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS

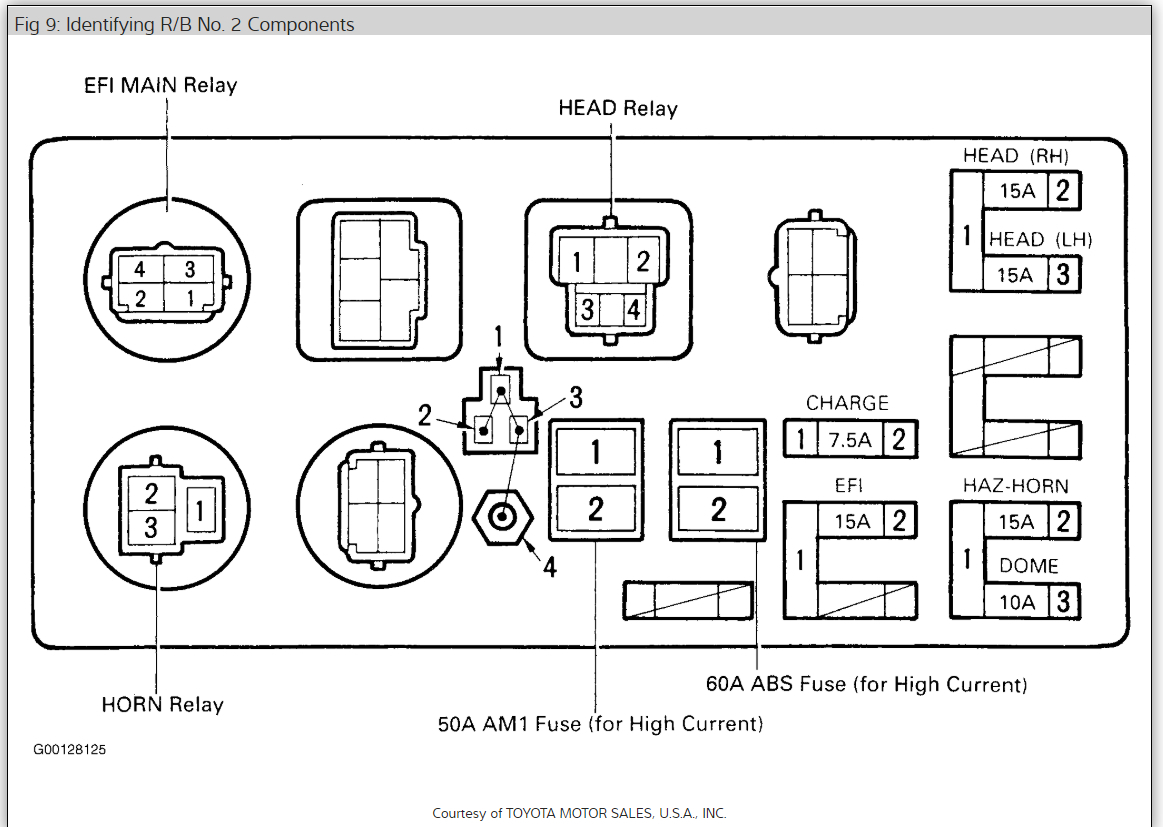

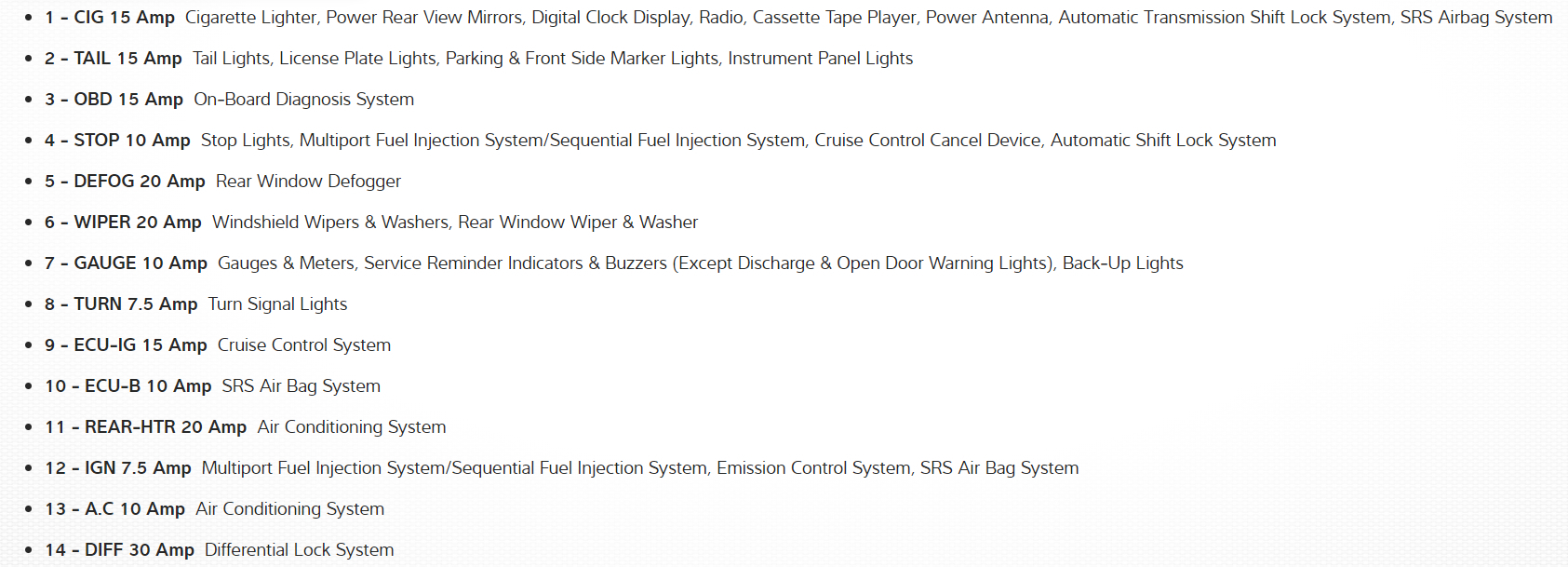

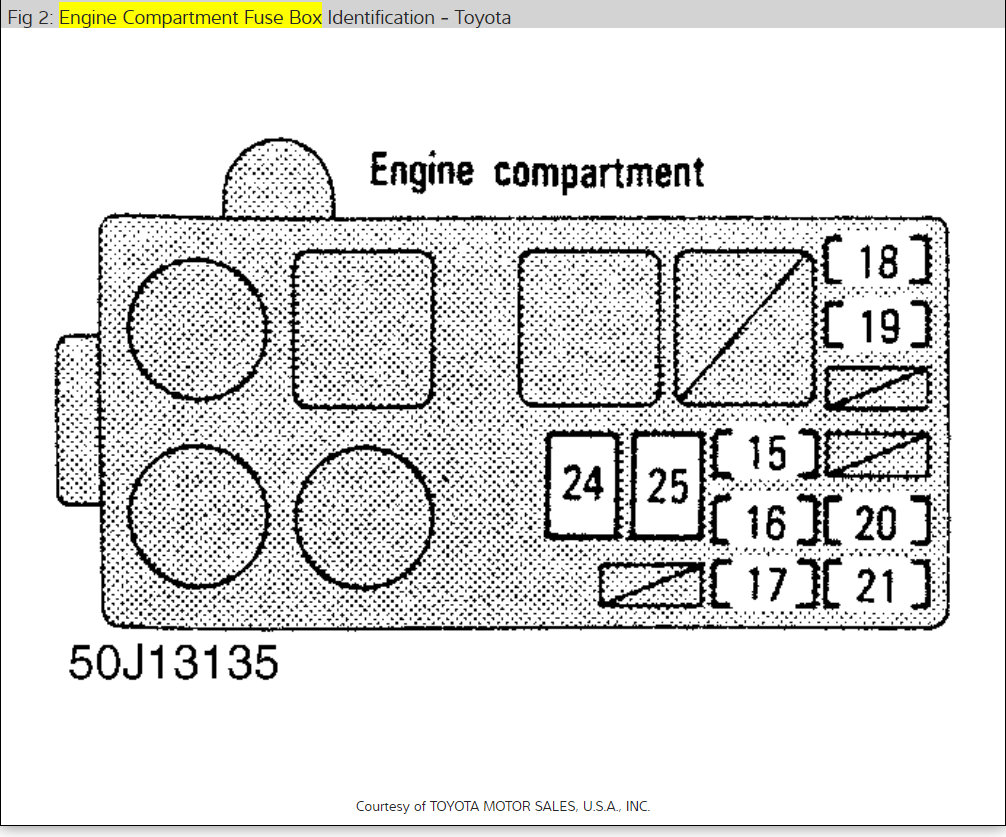

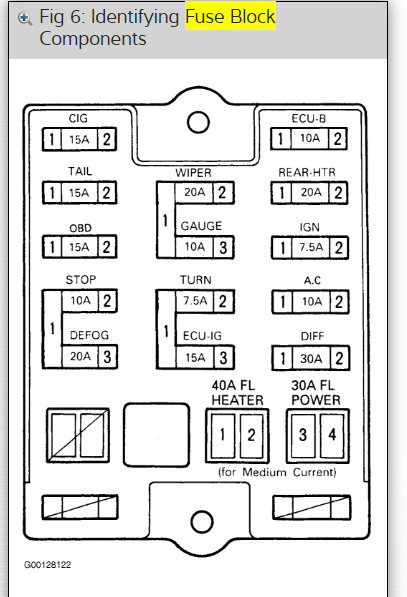

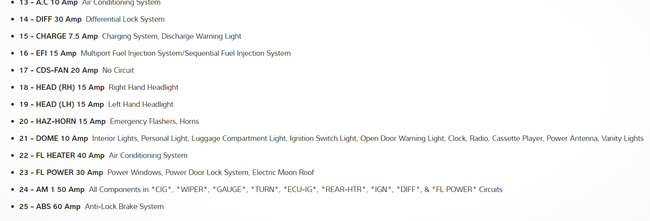

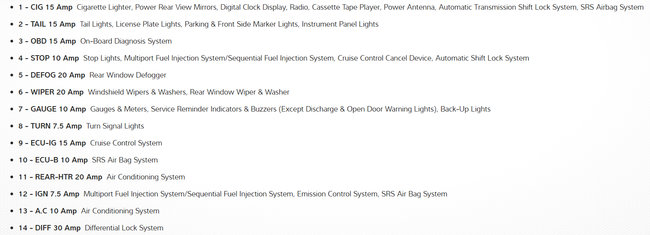

There is the headlight relay and some fuses that need to be checked. Here is a guide and the relay and fuse locations for your car so you can run some tests:

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

and

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

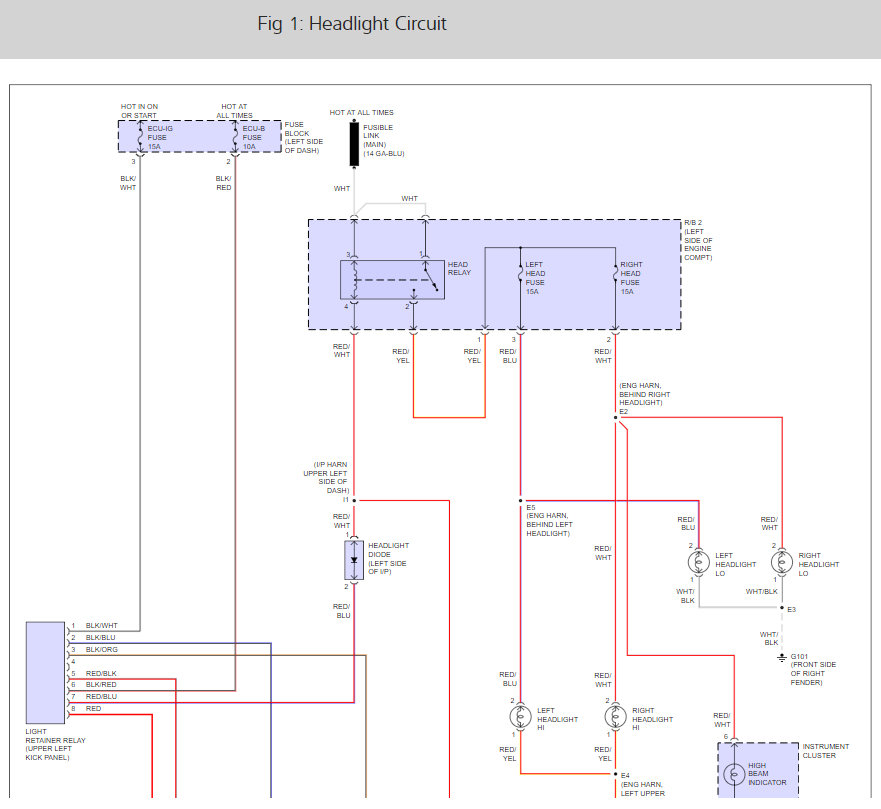

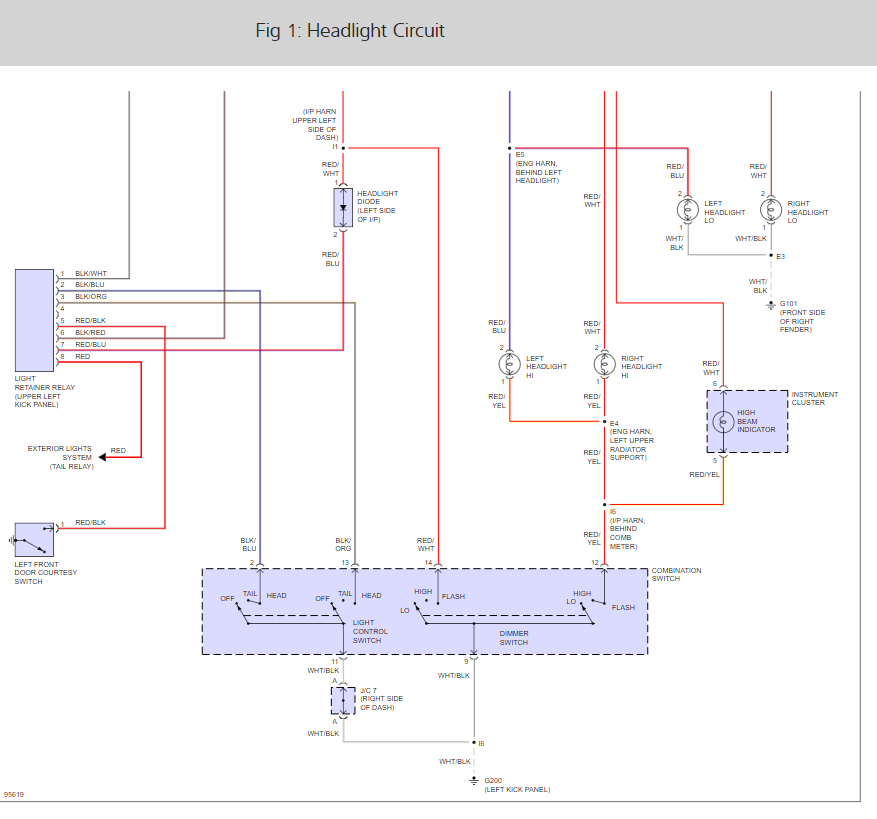

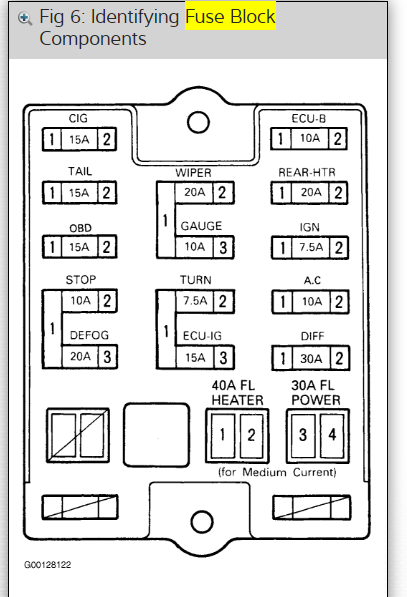

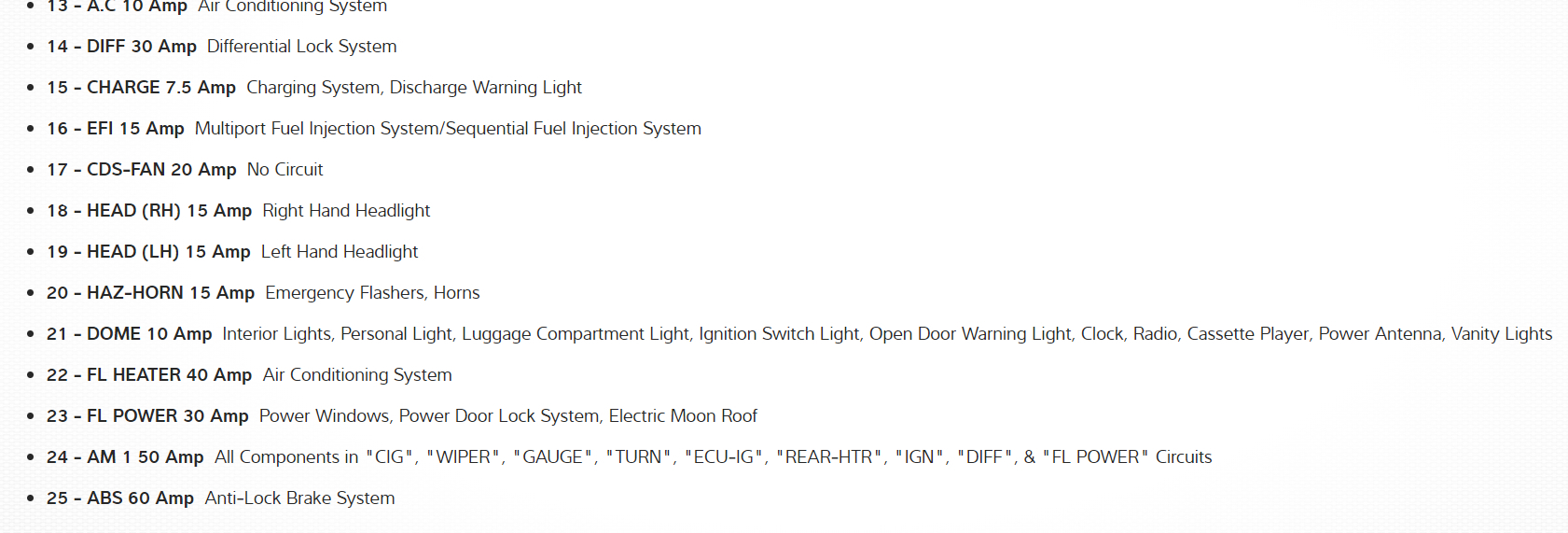

Check out the diagrams (below). Please let us know what you find. We are interested to see what it is.

Cheers, Ken
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jul 14, 2018 at 10:46 AM
