torque settings?

1997 TOYOTA COROLLA
123 MILES • 1.6L • 4 CYL • FWD • MANUAL
Avatar
FAHMI
  • MEMBER
  • 2 POSTS
could you tell me what the torque settings are for the 4AGE second generation are please. i need settings for the head bolts, big-end bearings and tappets please. thank you in advance regards
Jan 16, 2014 at 1:08 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
head bolts 22ft lbs then 90 degrees then another 90 degrees using new bolts.

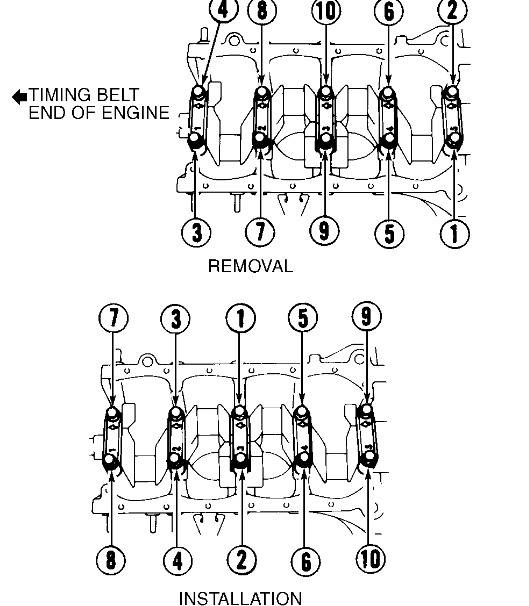

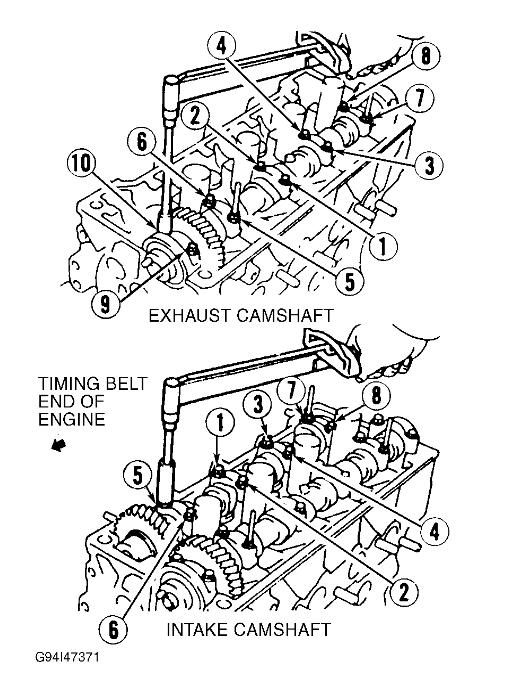

main bolts 44 ft lbs per sequence in pic. cam bearing bolts 115 inch lbs per sequence in pic. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Jan 16, 2014 at 7:00 AM
