1997 Saturn SC1 Wiring pinout diagrams

You can get a tool to remove the pins from the cannon plug, using new pins replace damage section of wiring and always solder and seal all joints, you should not have a problem here.

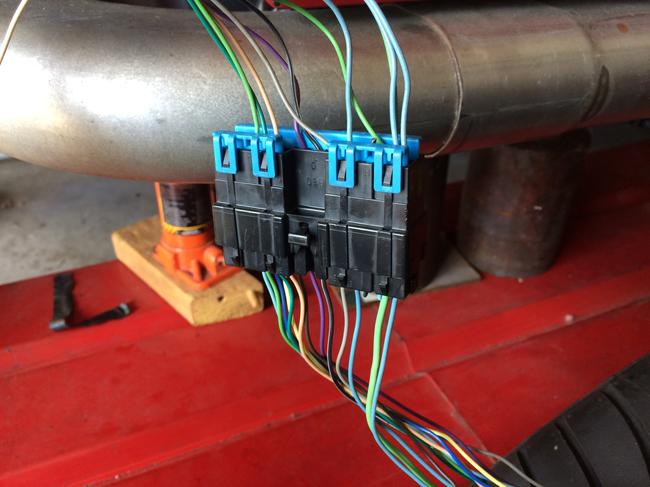

I have the pieces of wire with the pin connectors on them. I need the wiring diagram of the fuse block and the 24 pin connector to know where the wires land

Hope that this helps.

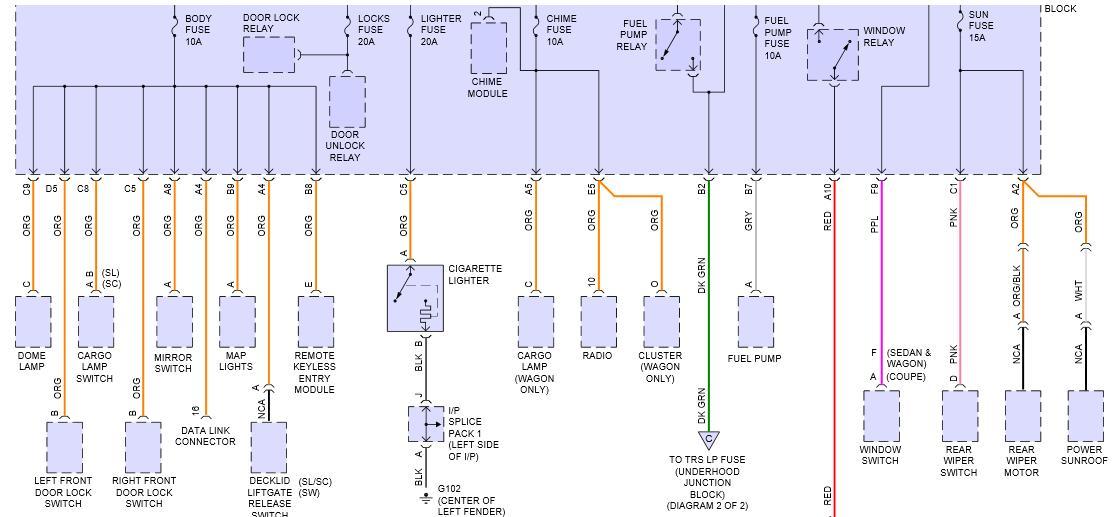

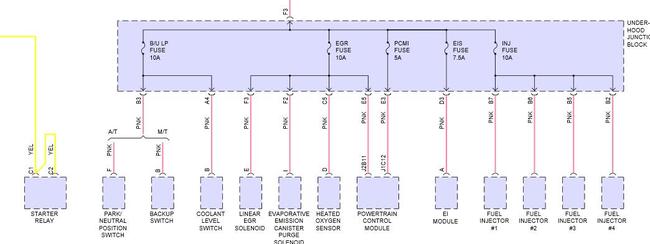

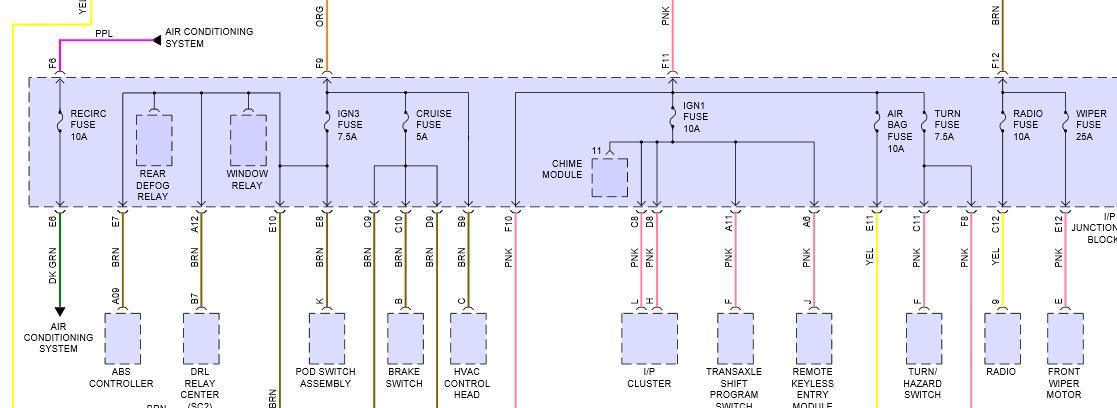

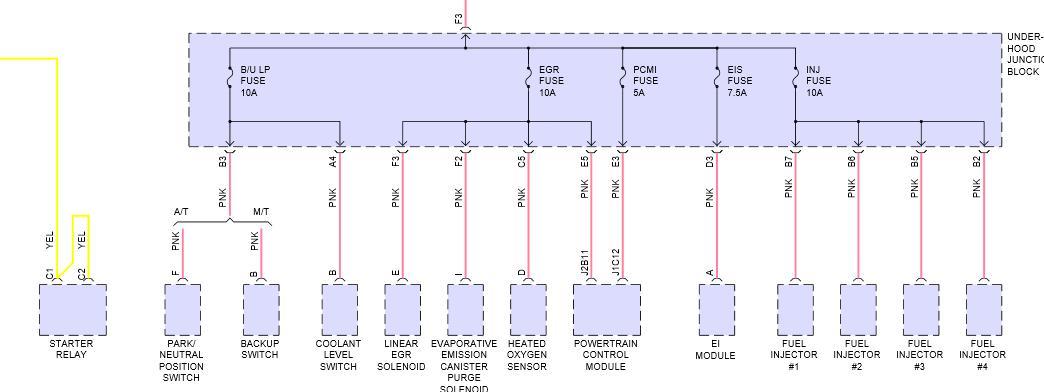

That is great the only thing is they are so small and when I try and enlarge them they get all cloudy.
Thank you but they need to be big enough so I can print them on a full size sheet of paper

That is the only format the system will allow me to sent the pics in, I have to use a screen shot from a master program that will not allow me to cut and paste any larger.

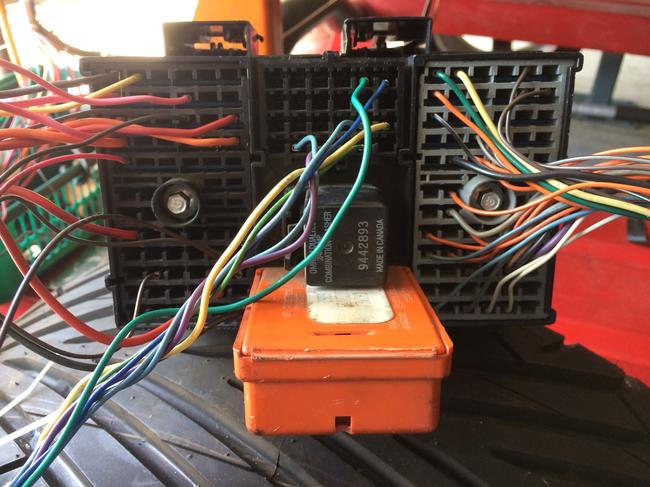

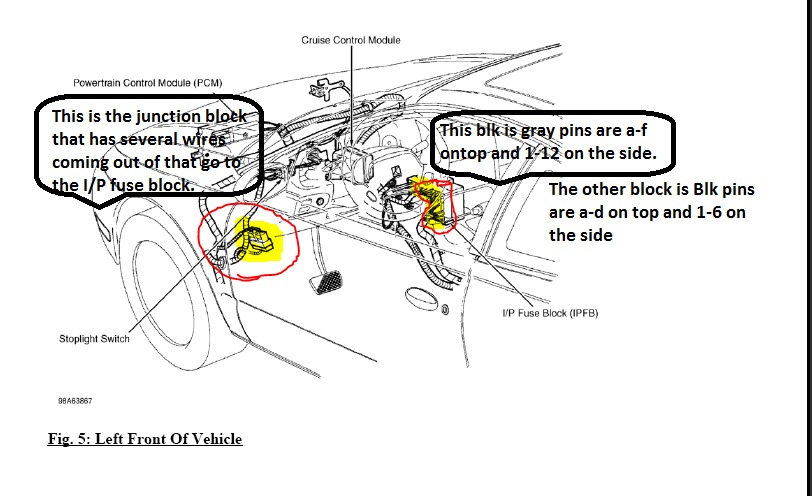

I am sorry for being so annoying about this wiring problem I have but. What I need is the actual pin outs of the two plugs in questions. See the picture I have enclosed in this reply. I cant believe that I would have to chase back and forth between drawings. There must be a drawing that shows The wires that come from the junction plug and the location for the landing pin on the gray plug in block and smaller black plug in box.
