need head bolt torque specs for '97 pontiac 2.2
Feb 17, 2011 at 11:34 PM
head bolt torque specs
1997 PONTIAC SUNFIRE
CHIEF1887
- MEMBER
- 1 POST
- FOLLOW
Advertisement

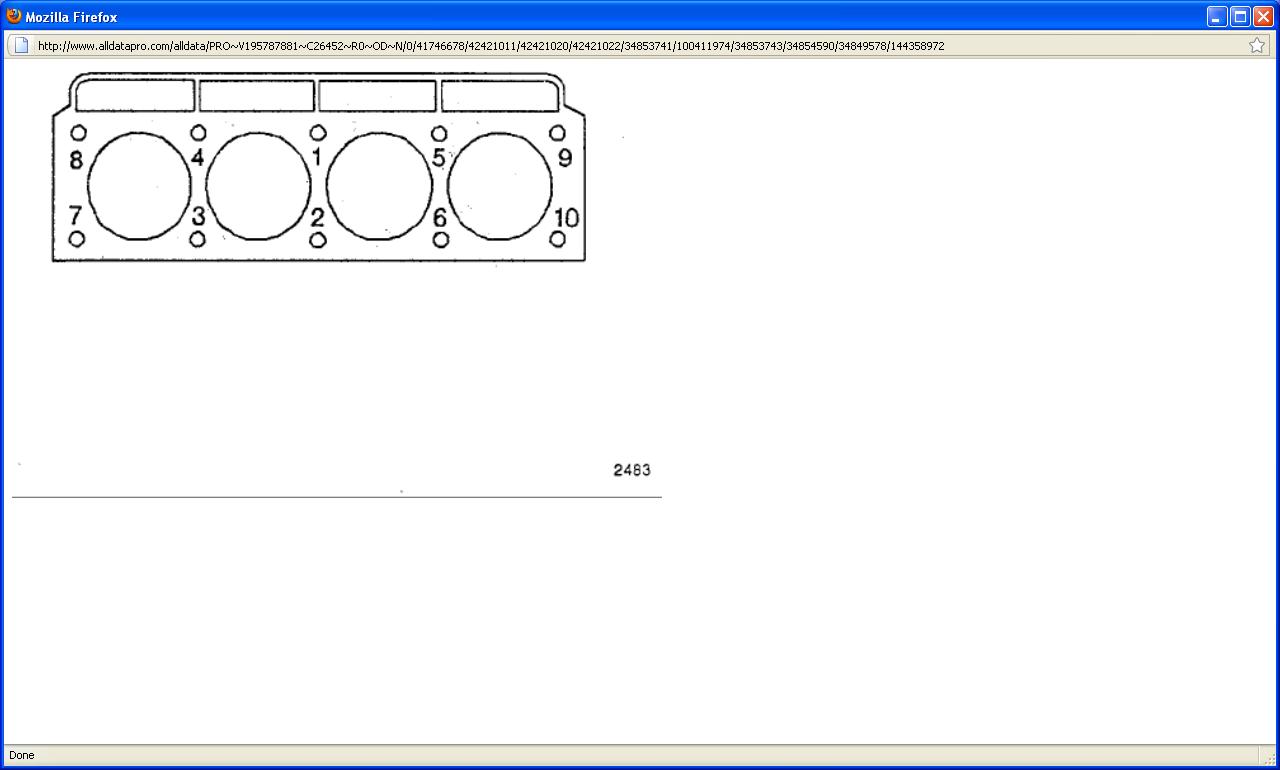

5. Use the following sequence in order to tighten the cylinder head bolts:
1. Tighten bolt 1 to 63 Nm (46 ft. lbs.) .
2. Tighten bolt 2 to58 Nm (43 ft. lbs.) .
3. Tighten bolt 3 to 58 Nm (43 ft. lbs.) .
4. Tighten bolt 4 to 63 Nm (46 ft. lbs.) .
5. Tighten bolt 5 to63 Nm (46 ft. lbs.) .
6. Tighten bolt 6 to58 Nm (43 ft. lbs.) .
7. Tighten bolt 7 to58 Nm (43 ft. lbs.) .
8. Tighten bolt 8 to 63 Nm (46 ft. lbs.) .
9. Tighten bolt 9 to63 Nm (46 ft. lbs.) .
10. Tighten bolt 10 (stud bolt) to 58 Nm (43 ft. lbs.) .
11. Use a torque angle meter and tighten all the cylinder head bolts an additional 90°in sequence.
1. Tighten bolt 1 to 63 Nm (46 ft. lbs.) .
2. Tighten bolt 2 to58 Nm (43 ft. lbs.) .
3. Tighten bolt 3 to 58 Nm (43 ft. lbs.) .
4. Tighten bolt 4 to 63 Nm (46 ft. lbs.) .
5. Tighten bolt 5 to63 Nm (46 ft. lbs.) .
6. Tighten bolt 6 to58 Nm (43 ft. lbs.) .
7. Tighten bolt 7 to58 Nm (43 ft. lbs.) .
8. Tighten bolt 8 to 63 Nm (46 ft. lbs.) .
9. Tighten bolt 9 to63 Nm (46 ft. lbs.) .
10. Tighten bolt 10 (stud bolt) to 58 Nm (43 ft. lbs.) .
11. Use a torque angle meter and tighten all the cylinder head bolts an additional 90°in sequence.
Image (Click to enlarge)
