1997 OLDSMOBILE ACHIEVA
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
Does anyone know where the cooling fan relay and the coolant tempeture sensor is on a 1997 olds achieva 2.4lt 4 cylinders
Please I need to know where the location of these two are
Apr 6, 2013 at 6:37 AM
Advertisement
Avatar
DRCRANKNWRENCH1
  • CERTIFIED EXPERT
  • 3,435 POSTS

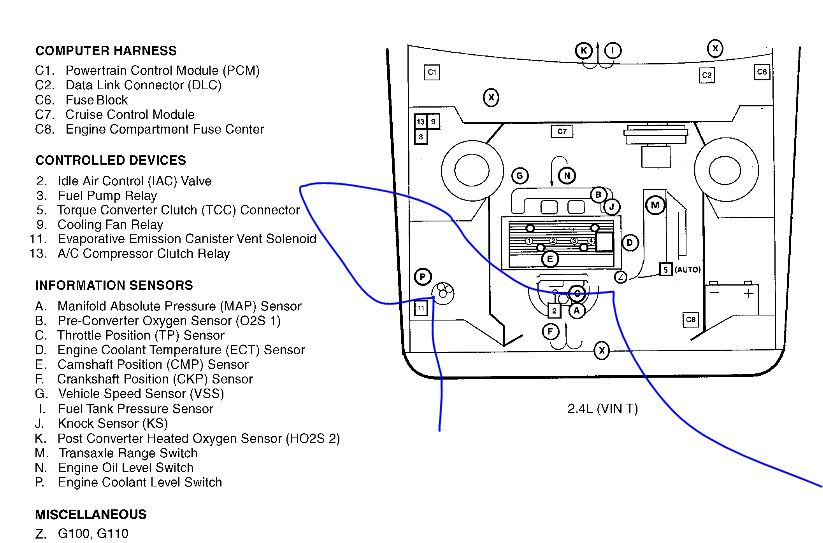

I have given you a diagram with the location of both.
Image (Click to enlarge)
Attached Media
Apr 6, 2013 at 7:36 AM
