1997 Oldsmobile Achieva A/C recharge

1997 OLDSMOBILE ACHIEVA
148,000 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
LONEWOLF1652
  • MEMBER
  • 1 POST
where is the low side port located ?
Jun 17, 2014 at 5:47 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

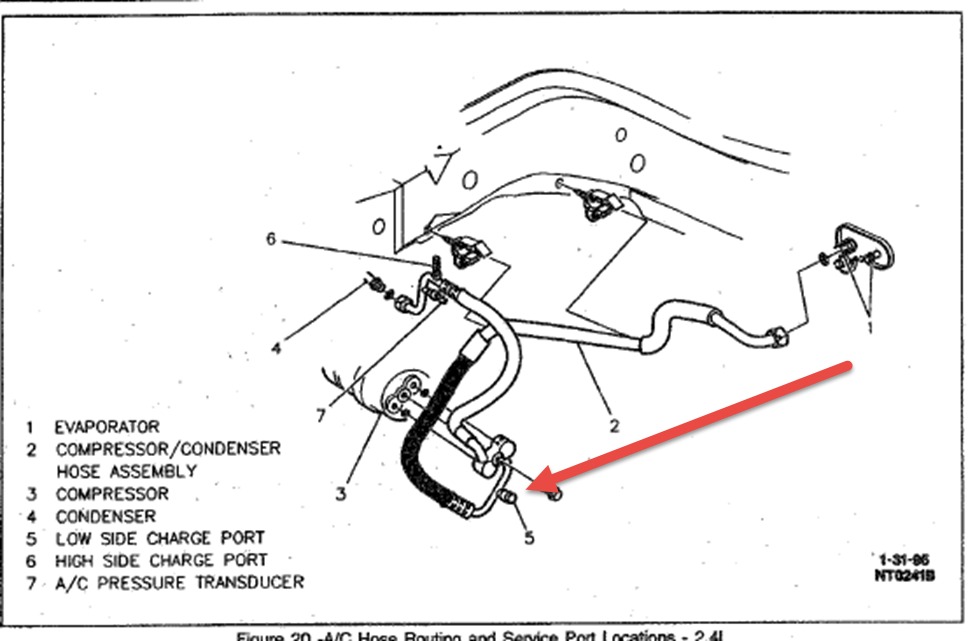

see attached, but if you don't know where the port is you shouldn't fool around with it.
Image (Click to enlarge)
Attached Media
Jun 17, 2014 at 7:54 AM
