How do you remove lower control arm bushings ?

1997 NISSAN QUEST
110,000 MILES • 6 CYL • FWD • AUTOMATIC
Avatar
DAN
  • MEMBER
  • 1 POST
Vehicle experiences intermittent front end vibrations after its been driven for awhile. I suspect it could be worn out bushings.
Aug 11, 2011 at 7:27 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

In order to remove the lower control arm bushings you will have to first remove the control arm.
Raise the vehicle and secure it with jack stands.

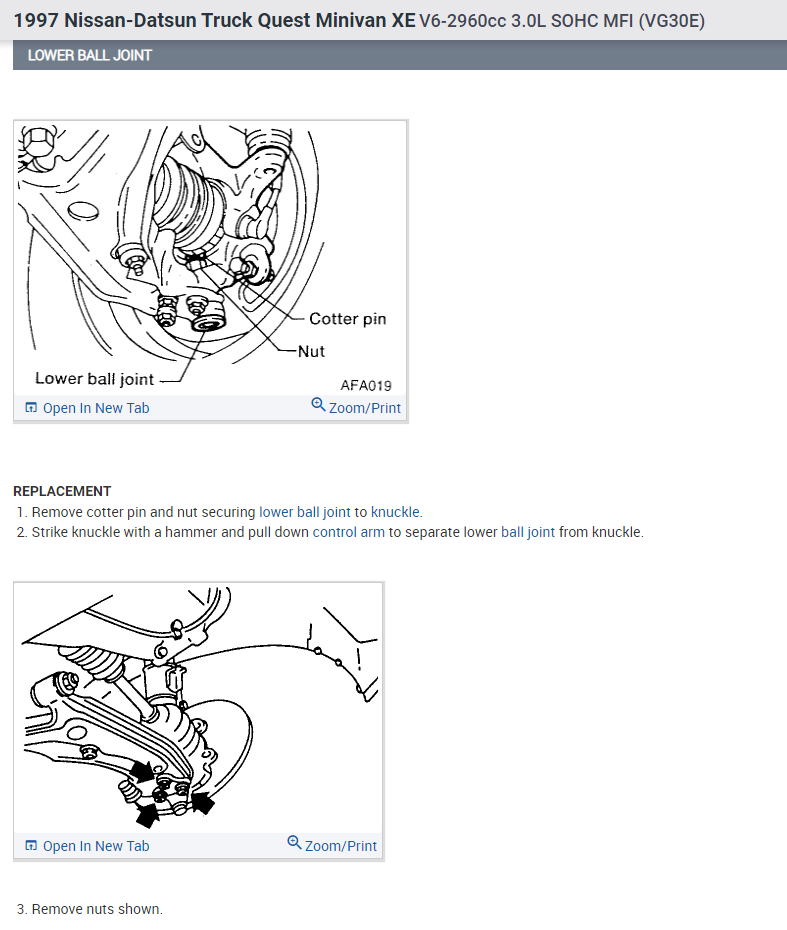

First you will have to release the ball joint by loosening the nut that keeps the ball joint in place.
Be sure to have a jack under the control arm to control the drop of the suspension.
Remove the sway bar link.
Then remove the control arm mounting bolt, they are the two bolts that are keeping the control arm to the subframe.

Then replace the bushing.

Here is a helpful article:

https://www.2carpros.com/articles/lower-control-arm-bushing-replacement

Please let me know of any questions.
Thank you.
Sep 7, 2021 at 11:41 AM
