radiator fan does not automatically turns on when temperature reaches more than half on the temp gauge

1997 NISSAN CEFIRO
155,000 MILES
Avatar
SMANIMTIM
  • MEMBER
  • 3 POSTS
The radiator fan does not automatically turns on if temp reaches more than half on the temp gauge then suddenly engine stops to cool down. When aircon is turned on both fans runs perfectly. Would it be a broken fuse how can i trouble shoot this>

Thanks,
Sonny
Feb 10, 2012 at 11:08 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
The radiator fans are PCM controlled.

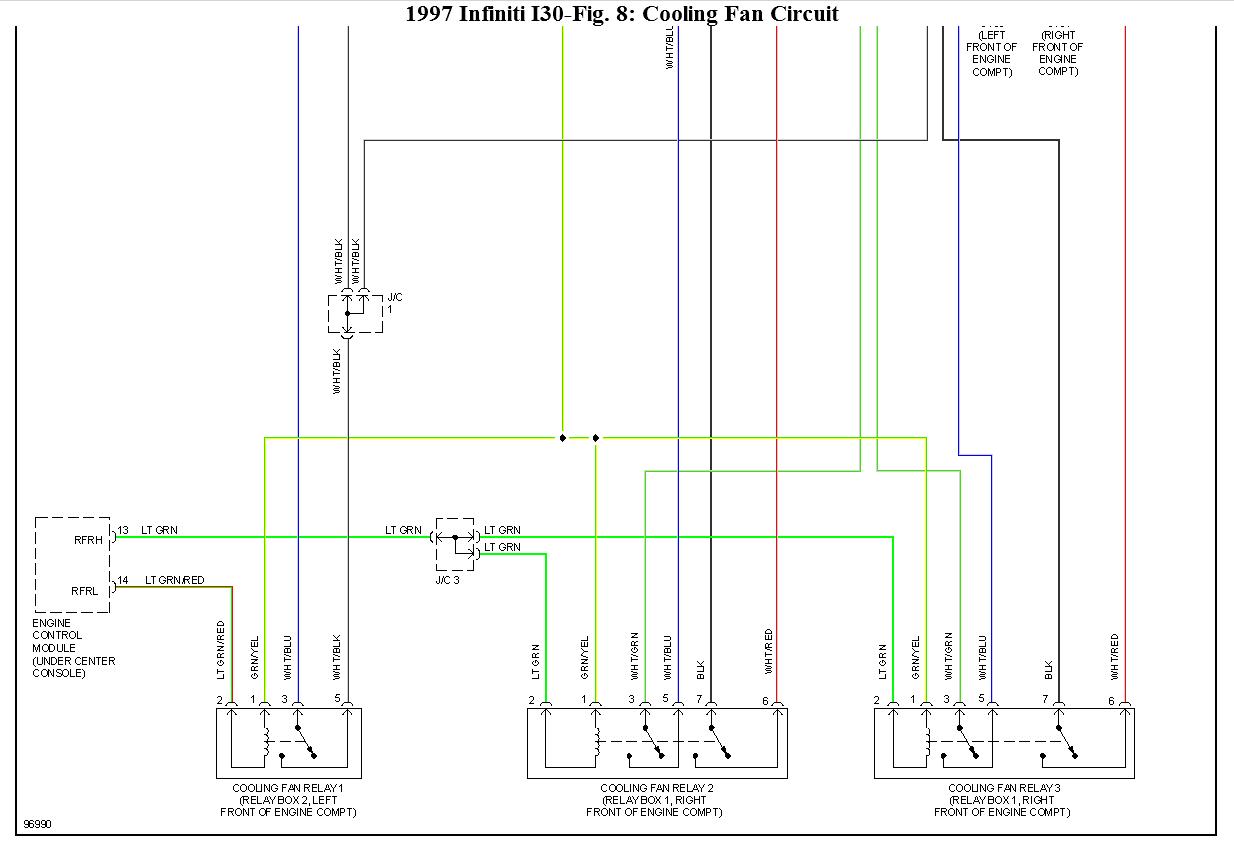

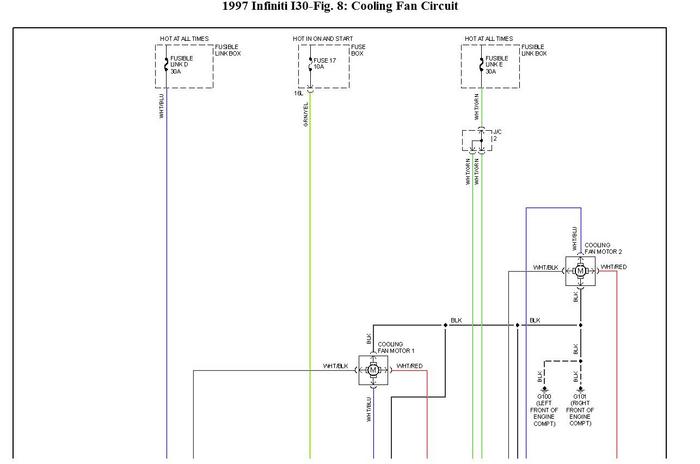

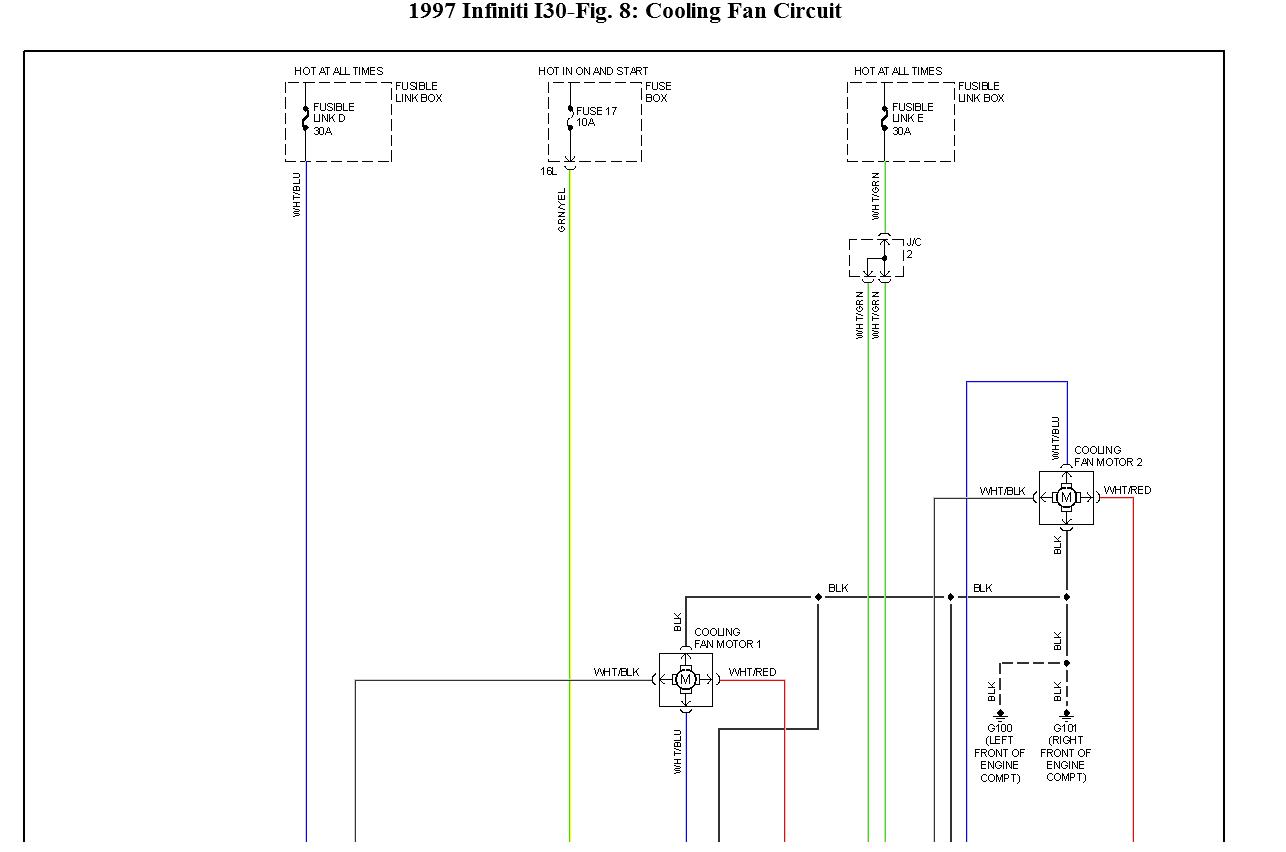

Attached are the wiring schematics. Ensure all fuses and relays are working correctly.
Feb 10, 2012 at 12:43 PM
