1997 MITSUBISHI TRITON
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
how do i change main fan belt
Oct 31, 2012 at 9:30 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

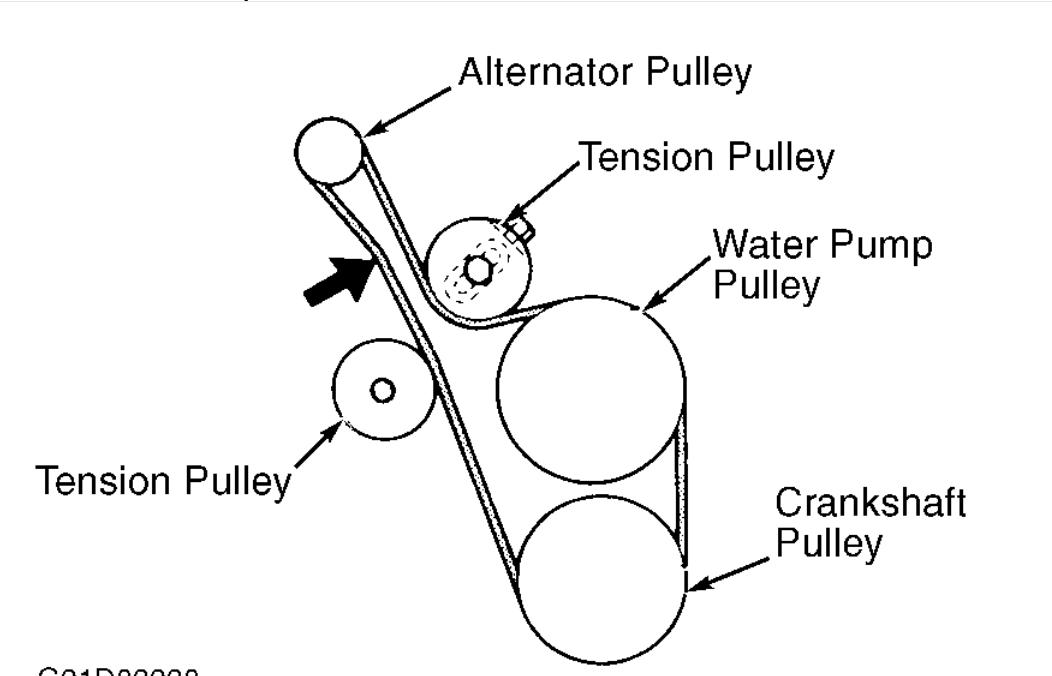

Release the tightening bolt of the tensioner pulley and loosen the adjusting nut to slacken the belt for removal.
Image (Click to enlarge)
Attached Media
Oct 31, 2012 at 9:41 PM
