How do you replace climate control on 1997 Eclipse Spider?

1997 MITSUBISHI ECLIPSE
Avatar
DANNYG
  • MEMBER
  • 1 POST
Eclipse Spider blows fuses - trying to replace climate control. Fan Switch is blowing fuses.
Dec 6, 2011 at 11:47 PM
Advertisement
Avatar
DRCRANKNWRENCH
  • CERTIFIED EXPERT
  • 3,380 POSTS

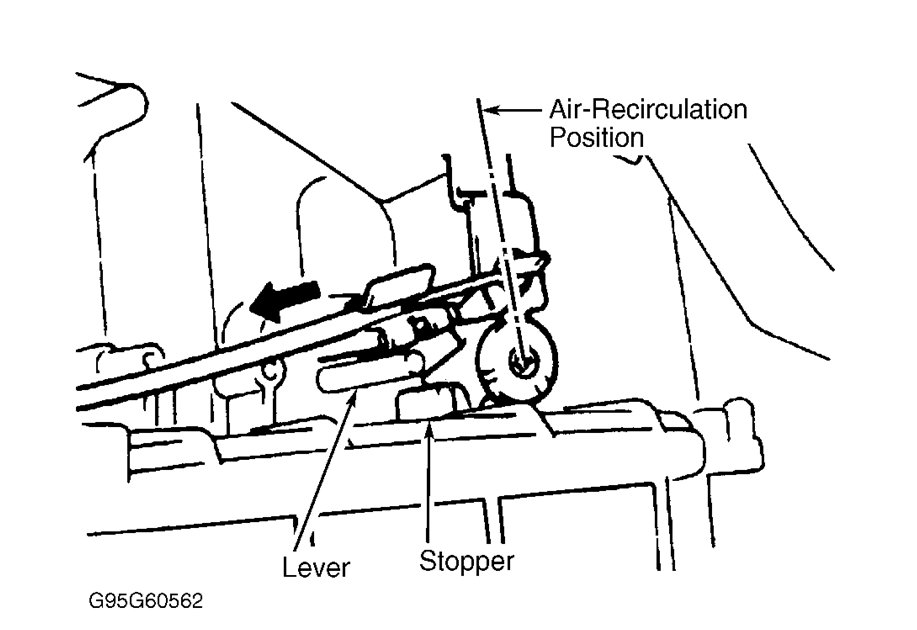

I am giving you the instructions as well as figure 3 reffered to in the instructions.
Dec 7, 2011 at 12:01 AM
Avatar
DRCRANKNWRENCH
  • CERTIFIED EXPERT
  • 3,380 POSTS

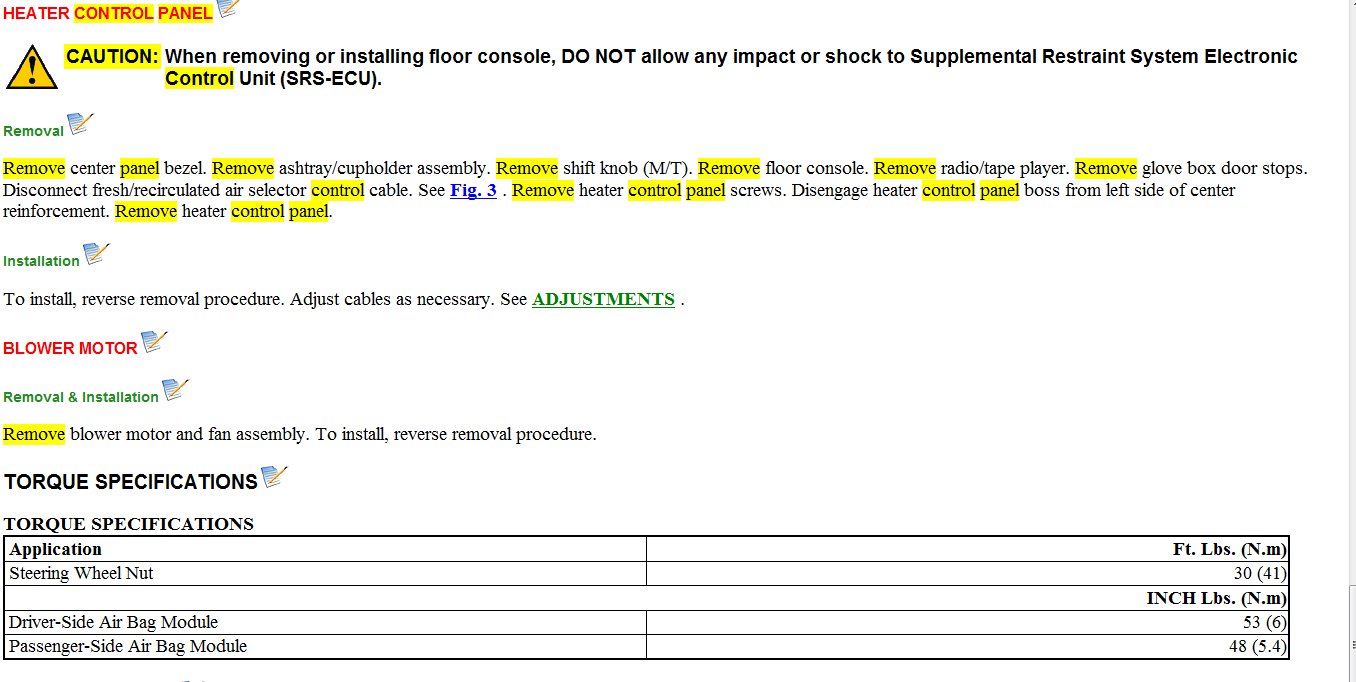

Forgot Instructions and Diagram
Images (Click to enlarge)
Attached Media
Attached Media
Dec 7, 2011 at 12:02 AM
