mazda 626 2.5l

1997 MAZDA 626
170,000 MILES • 6 CYL • 2WD • MANUAL
Avatar
TOMMIEK
  • MEMBER
  • 1 POST
replace front disc pads
Apr 1, 2011 at 7:55 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Removal & Installation

1. Raise and support front of vehicle. Remove front wheel assemblies. Remove lower lock pin/guide bolt. Pivot caliper upward and support using a hanger.

2. Remove pads, shims, guide plates or pad guides and "V" springs.

3. To install, reverse removal procedure. Use a G-clamp and an old pad to push piston fully inward to install disc pads.

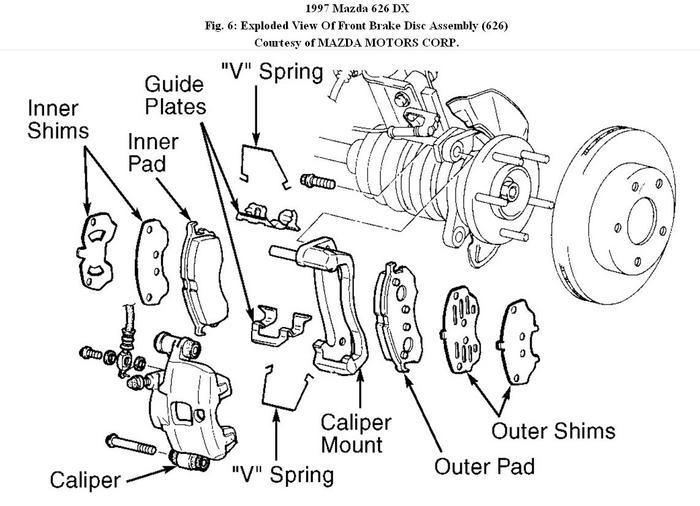

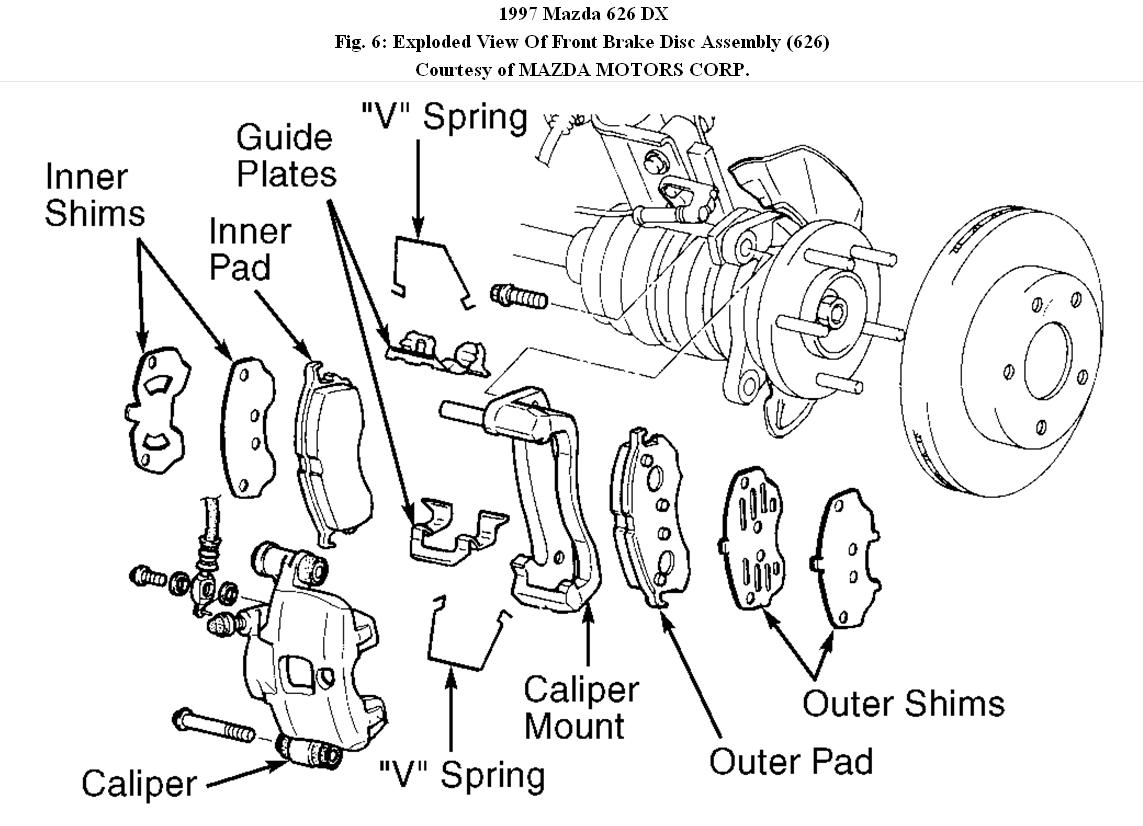

Image (Click to enlarge)
Attached Media
Apr 1, 2011 at 9:03 PM
