a/c control module

1997 LINCOLN TOWN CAR
4.7L • V8 • 2WD • AUTOMATIC
Avatar
JOHN2U
  • MEMBER
  • 1 POST
I just need to know how to remove the a/c control module on a 97 Lincoln towncar.
Jul 9, 2015 at 6:53 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

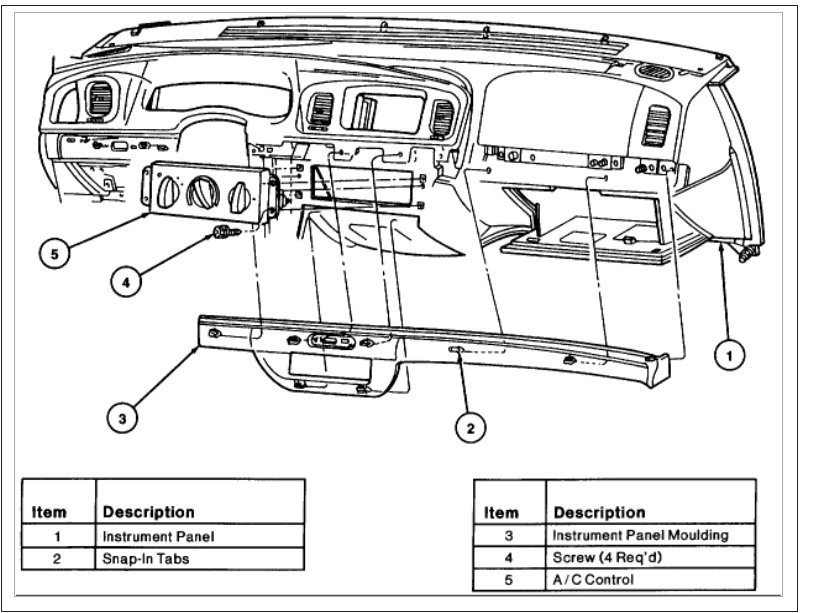

You must remove the trim around the control panel to get the module out here is a diagram to help you see what you are in for when doing the job.

Check out the diagrams (Below)

Please let us know if you need anything else to get the problem fixed.

Cheers
Image (Click to enlarge)
Attached Media
Jul 10, 2015 at 7:16 AM
