Intermittent windows not working

1997 ISUZU RODEO
200,000 MILES • 3.2L • V6 • 4WD • AUTOMATIC
Avatar
ZIMMSUSIE
  • MEMBER
  • 8 POSTS
My windows will sometimes roll up and down. Sometimes they wont. I took apart the door panel they started working. Put it back together and it stopped working, but the locks on the door still work. I believe there is only the one 30amp relay and no smaller fuse. I'm thinking the switch needs replace but I'm not sure and they are hard to come by.. does anyone know what year they switched from 10 pin to 14? Thanks.
May 31, 2020 at 6:15 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good morning,

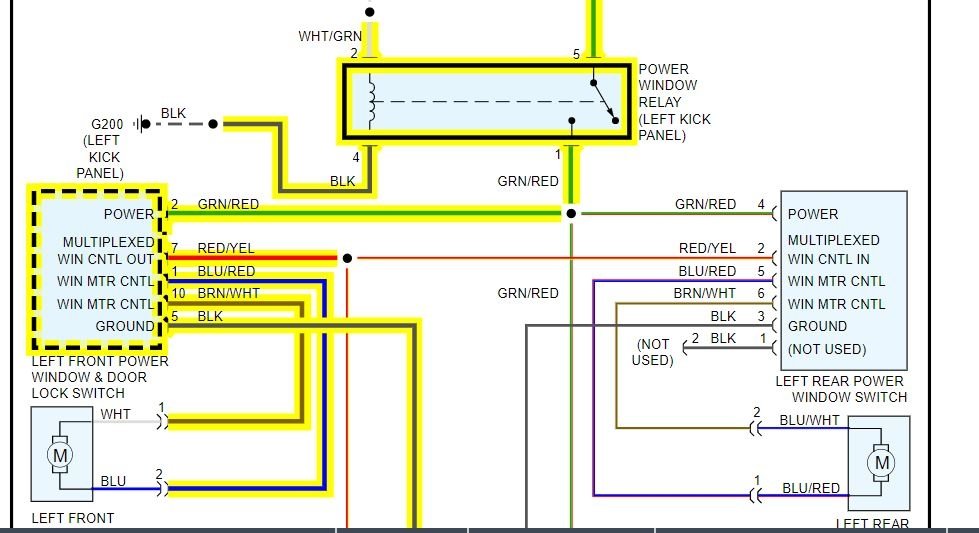

I attached a wiring diagram of the system for you.

https://www.2carpros.com/articles/how-to-check-wiring

Do you have a volt meter or test light for some wiring checks to see if the correct power is coming to the switch?

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Roy
Jun 1, 2020 at 4:27 AM
