A/C blows out the defrost vents only

1997 INFINITI I30
180,000 MILES
Avatar
STEVE1123
  • MEMBER
  • 1 POST
Original problem was no a/c. When the defrost button was pressed, the a/c started working but it blows out the defrost vents only. Cannot change to any other vents with the controls. The car has auto climate control.
Sep 11, 2011 at 3:02 AM
Advertisement
Avatar
PROMECHANIC
  • CERTIFIED EXPERT
  • 536 POSTS
Hello, it sounds like you have a mode door actuator that is not working. Here is a guide that will show you what you are in for when doing the job.

https://www.2carpros.com/articles/replace-blend-door-motor

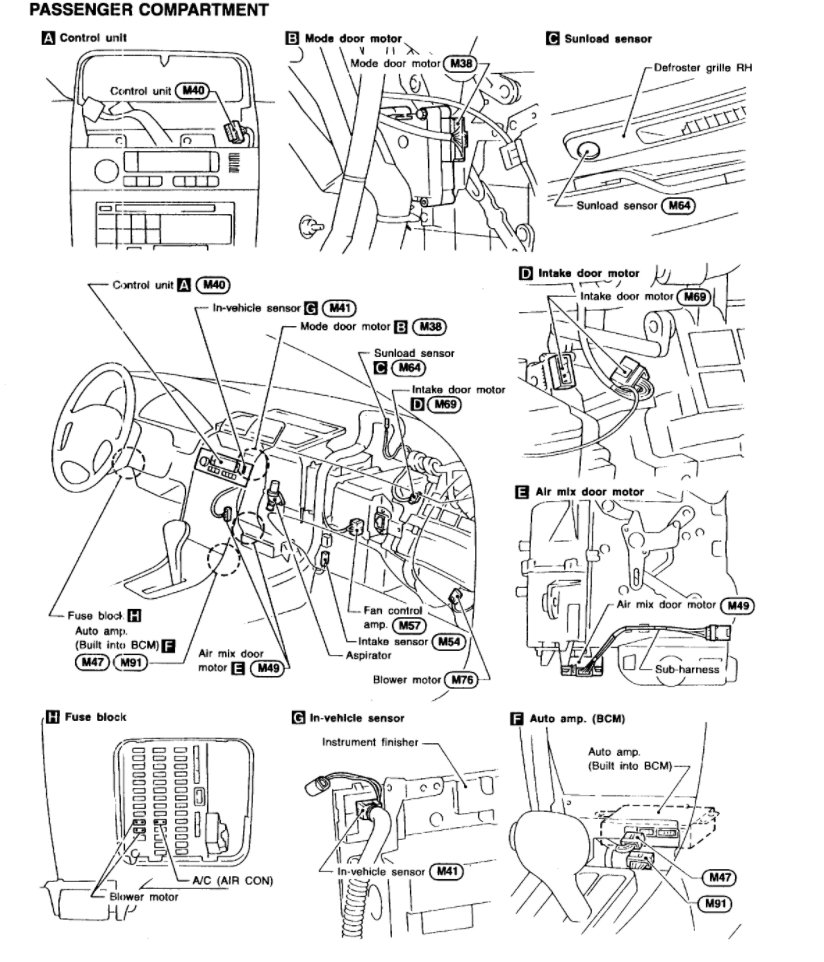

Here are the locations for the mode actuator (b) your car (Below)

Please let us know what happens.

Cheers
Image (Click to enlarge)
Attached Media
Sep 11, 2011 at 4:52 AM
