tranny

1997 GMC JIMMY
150,000 MILES • 6 CYL • 4WD • AUTOMATIC
Avatar
CRAIGERS4200
  • MEMBER
  • 2 POSTS
i need to replace the 2-3 shift solenoid in my 97 jimmy which one is it?
Dec 31, 2010 at 3:40 PM
Advertisement
Avatar
CRAIGERS4200
  • MEMBER
  • 2 POSTS
i know i have to drop the tranny pan and they are right there, but there is a 1-2 and a 2-3 shift solenoid right next to each other?
Dec 31, 2010 at 3:42 PM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

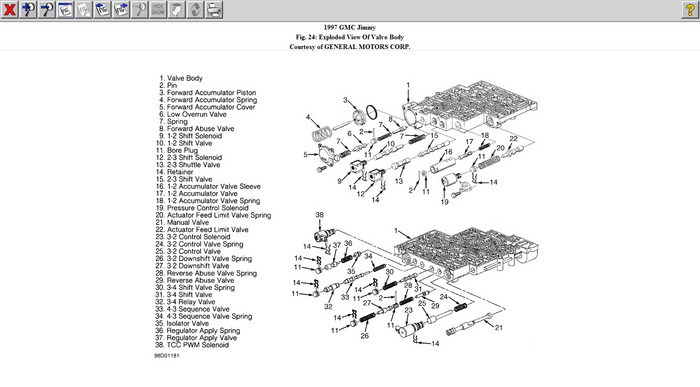

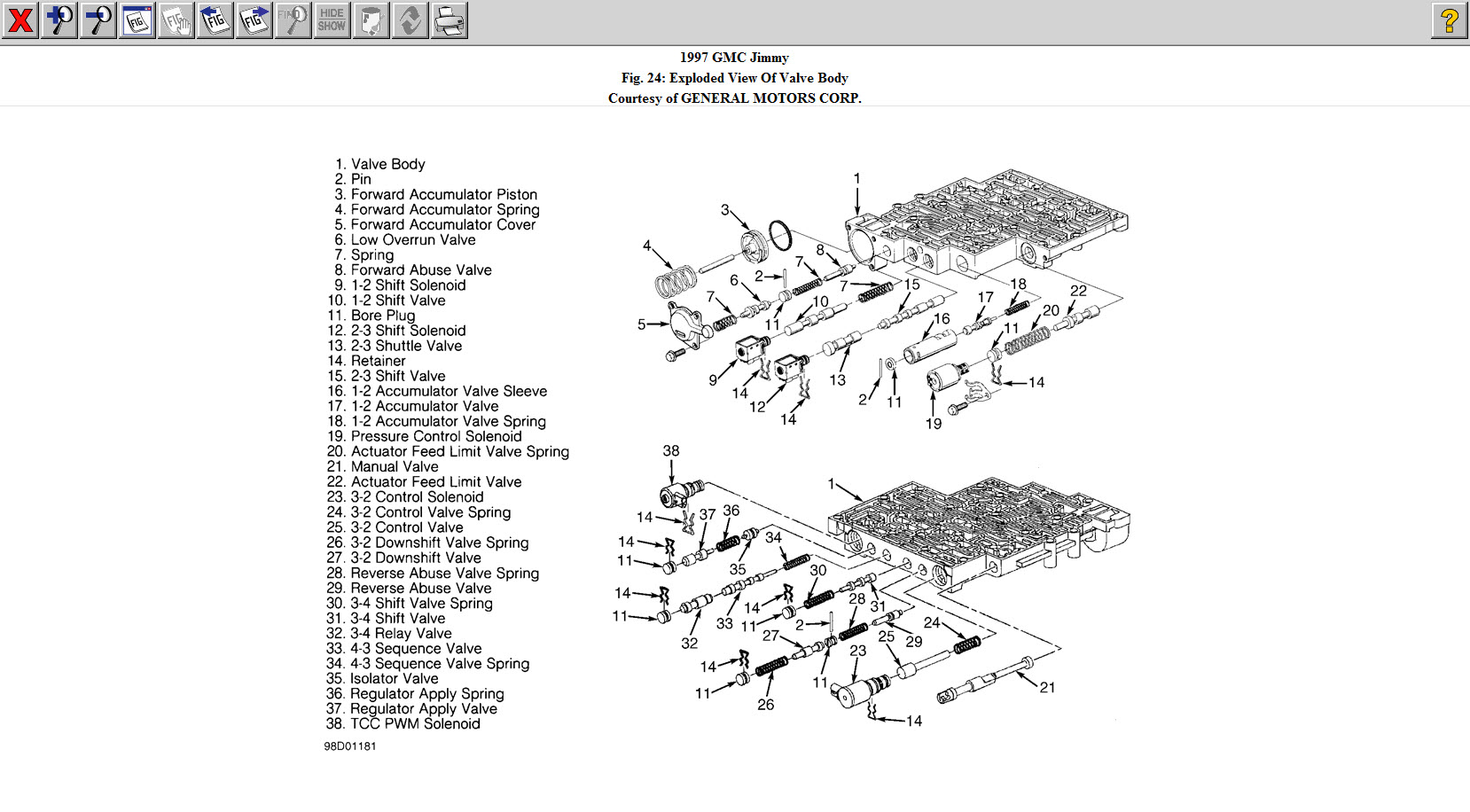

if you really think this is the problem then here is the valve body diagram. 2-3 solenoid is Number 12 on the chart as explained. But keep in mind that there have been ignition switch problems that have caused the same problem. and buying a solenooid and installing it may not fix the problem, especially if somethingelse is wrong in the trans. There is a TSB on the ignition switch for your model truck. If you replace it you will have to go through the security relearn process.
Feb 10, 2011 at 4:31 PM
