1997 GMC C1500 brake lights

1997 GMC C1500
175,000 MILES
Avatar
JACOBWST
  • MEMBER
  • 3 POSTS
both brake lights arent working when I press the brake pedal. Bulbs are good, fuses are good, cant find the switch under the dash, do I really need to drop the steering column or is there a better way ?? If I take it to a shop how much should it cost (if answerable) ?? Thnx
Nov 15, 2013 at 3:18 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

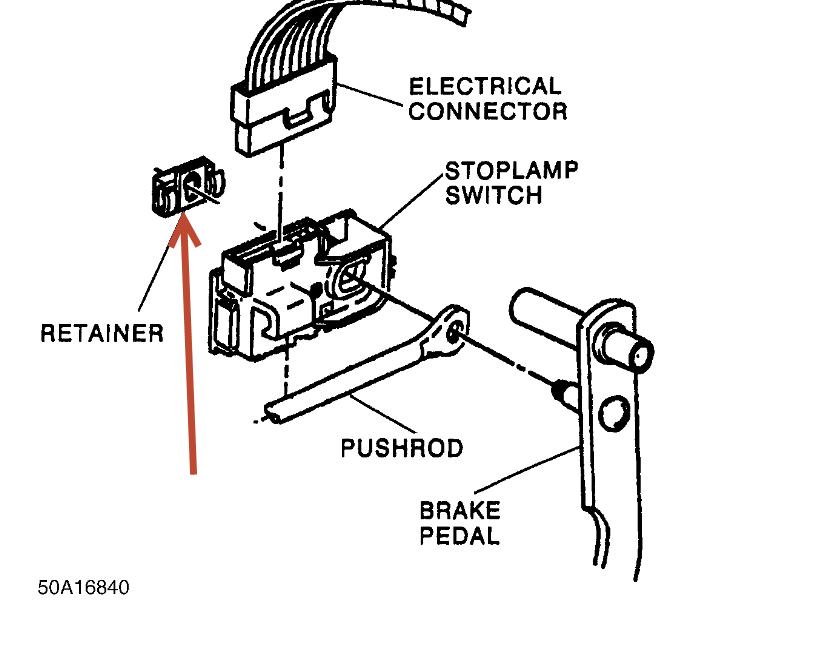

the switch will be to the brake pedal not he column and you shouldn't have to remove the column, remove the clip it slides then come off then remove switch. see pic.
Image (Click to enlarge)
Attached Media
Nov 15, 2013 at 4:52 PM
Avatar
JACOBWST
  • MEMBER
  • 3 POSTS
thank you
Nov 15, 2013 at 11:45 PM
Advertisement
Avatar
JACOBWST
  • MEMBER
  • 3 POSTS
I found the switch but I can bearly see it let alone get to the switch. It is is completely surrouned by a thick metal brace that is attached to the steering column and the under-part of the dash by (6) 1/2" bolts. The only part of the retainer I can see looks like it has a allen tapped sdrew holding it in and it is impossible to get an allen wrench in there. Dont know what to do now ...any suggestions ???
Nov 16, 2013 at 5:50 PM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
the clip has to be pushed in then slid upor down to the large hole then it will come off there is not allen screw that holds it on or anything. just like the pic shows.
Nov 17, 2013 at 5:40 AM
